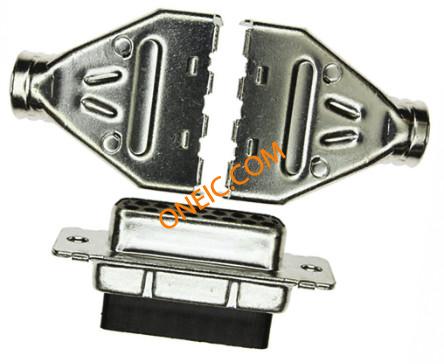

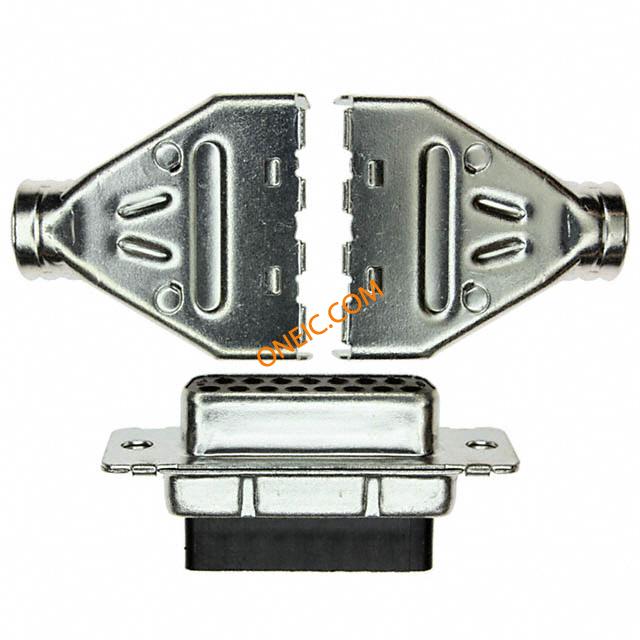

5747539-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 15 POS 2.76mm Crimp ST Bulk D-Sub Standard Connectors DSUB A15S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 15POS W/O CONT AMPLIMITE HDP-20 Receptacle+Shield 15P Conn Housing RCP 15 POS 2.76mm Crimp ST Cable Mount Bulk Conn Housing RCP 15 POS 2.76mm Crimp ST Cable Mount Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, SIZE 2, STEEL Conn;D-Sub;CableSocket;15Pos;STR;HDP-20Series;CrimpSnap;20AWG;ShieldedHDWRKit KIT,RCPT,15P,HDP-20,SHLD HDWRE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85366910 | ||
电气参数
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 间距 | 2.76 mm |
| 高度 | 12.92 mm | 重量 | 0.014 |
| 包装方式 | Bulk | 外壳尺寸 | 2 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Tin over Copper |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 本体材料 | :Metal | 屏蔽材料 | Steel |
| 壳体材料 | Nylon | 总长度 | 39.52 mm |
| 主要材料 | D-Subminiature | 端接样式 | Crimp |
| 触点数 | 15 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 15 | 外壳尺寸-插件 | :2 |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 574 |
| 产品特性 | Shielded | 制造商全称 | HDP-20 |
| 适用产品/相关产品 | :HDP-20 Series Crimp Snap-In Contacts | ||
环境参数
| 工作温度 | -55C to 105C | ||
