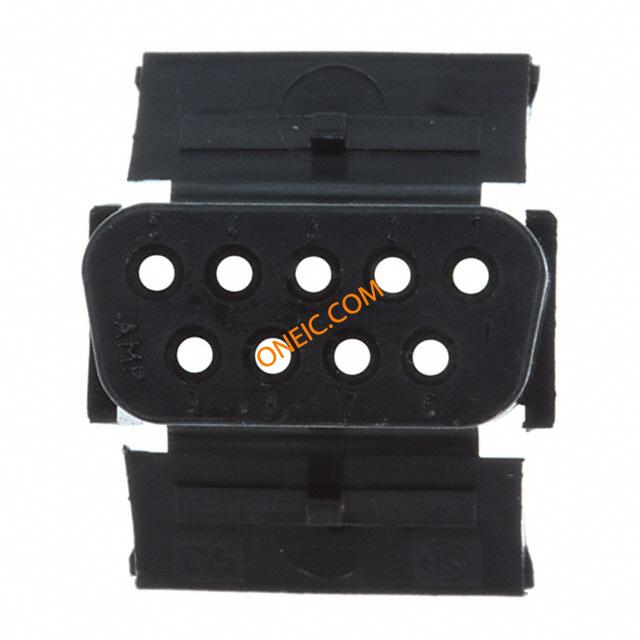

207752-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 9 POS Crimp ST D-Sub Standard Connectors HDJ-20 9P SOCKET Standard Cable Connectors CONN D-SUB HOUSING RECEPT 9POS AMPLIMITE HDJ-20 d-sub cable socket,9way Conn Housing RCP 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDJ-20Number of Positions = 9ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, HOUSING, D SUB, 9POS, RCPT Conn;D-Sub;CableSocket;9Pos;STR;HDP-20Series;CrimpSnap;20AWG;AllPlasticShell TE Connectivity HDJ-20 系列 2 行 2.74 mm, 2.84 mm 节距 9 路 直 母 电缆安装 PCB 壳体 9 CONTACT HSG |
| 分类 |
商业参数
| 其他名称 | A23471 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
机械参数

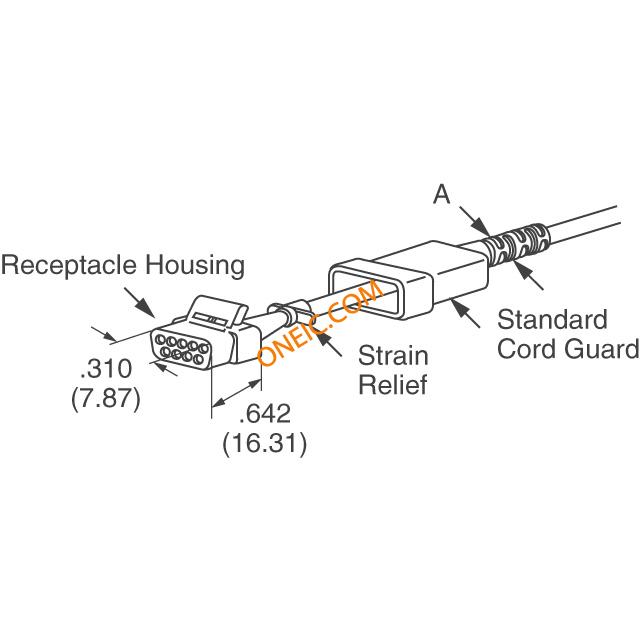

| 颜色 | Black | 深度 | 16.31mm |
| 间距 | 2.74 mm, 2.84 mm | 宽度 | 16.26mm |
| 长度 | 7.87mm | 重量 | 0 |
| 包装方式 | Bulk | 外壳尺寸 | 1 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触头类型 | Signal | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 安装样式 | Through Hole | 排数 | 2 |
| 螺丝材料 | Steel | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic | 总长度 | 16.26 mm |
| 主要材料 | D-Subminiature | 接地凹痕 | Without |
| 端接样式 | Crimp | 触点数 | 9 |
| 介电材料 | Thermoplastic, Glass Filled | 位数 | 9 |
| 外壳尺寸-插件 | All Plastic | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 等级 | Standard | 连接器性别 | RCP |
| 系列 | HDJ-20 | 制造商全称 | HDJ-20 |
| 产品子类型 | Connector | 适用产品/相关产品 | PCB Connector |
| 适用/相关制造商 | Size 20 Crimp Snap-in Contacts | ||
