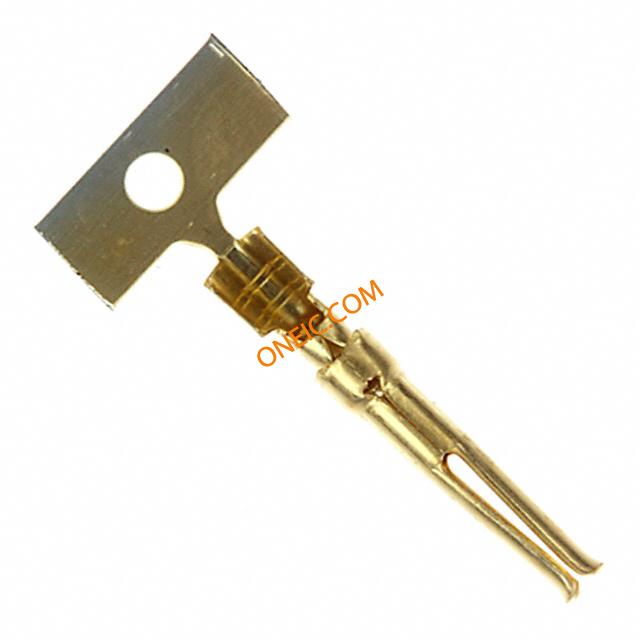

745230-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Wire Wrap ST Cable Mount Loose Piece D-Sub Contacts SOCKET CONTACT 20DF Standard Cable Connectors CONN SOCKET 18-22AWG GOLD CRIMP Contact PIN Wire Wrap ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Range = 0.4 - 0.8 [22-18] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub 20DF SOCKET CONTACT,PLATED |
| 分类 |
商业参数
| 其他名称 | A35203TR | 产品类别 | D-Sub Contacts |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 10000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 输入端 | .04 | 连接器阻抗 | 压接 |
机械参数
| 镀层 | Gold | 材料（通用） | Phosphor Bronze |
| 包装方式 | Reel | 导线线规 | 22-18 |
| 端接方式 | Wire Wrap | 触点尺寸 | 20DF |
| 触头类型 | Power | 插针或插孔 | Socket |
| 端子尺寸 | 20 | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Bright Tin-Lead | 插入件材料 | 磷青铜 |
| 触头材料 | Brass | 壳体材料 | 压接扣入式 |
| 包装数量 | Strip | 绝缘高度 | No |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp Snap-In | 镀层厚度（通用） | Flash |
| 线规或范围 - AWG | 0.4 - 0.8 [22-18] | ||
产品信息
| 备注 | Wire insulation diameter is limited by the connector housing cavity and clearan | 类型 | Stamped |
| 等级 | Standard | 连接器性别 | PIN |
| 系列 | HDP-20 | 产品子类型 | Contact |
