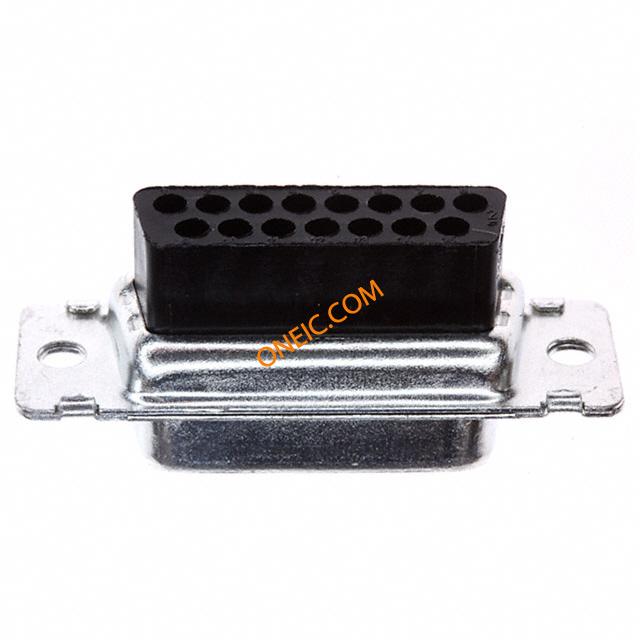

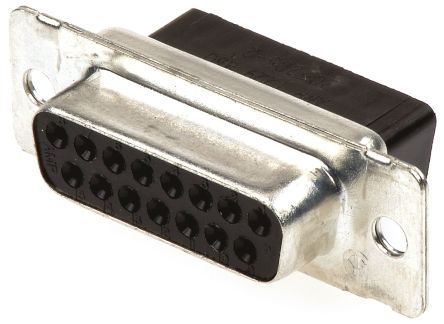

205205-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 15 POS Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P SOCKET TIN Standard Cable Connectors CONN D-SUB HOUSING RECEPT 15POS AMPLIMITE HDP20 d-sub cable socket,15way Conn D-Subminiature SKT 15 POS Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET HOUSING, D, 15WAY Conn;D-Sub;CableSocket;15Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 15路 直 压接式 D-sub 连接器, 插座 CRIMP SNAP RCPT ASSY,SIZE 2 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 800 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized,ULListedandCSACertified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250VAC | 工作电压 | :250V |
| 接触电阻 | :15mohm | 击穿电压 | :1kV |
| 最大额定电流 | :7.5A | ||
机械参数
| 颜色 | Black | 深度 | 12.55mm |
| 宽度 | 10.92mm | 高度 | 10.92 mm |
| 长度 | 39.14mm | 重量 | 0.006 |
| 包装方式 | Bulk | 外壳尺寸 | 2 |
| 导线线规 | 20 | 端接方式 | Solder |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 连接器类型 | Crimp Snap | 接触镀层 | Zinc |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Tin |
| 安装样式 | Wire | 排数 | 2 |
| 壳体镀层 | :Tin | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 锁定特性 | Mounting Holes | 本体材料 | :Metal |
| 壳体材料 | Steel | 总长度 | 39.14 mm |
| 包装数量 | 800 | 主要材料 | D-Subminiature |
| 接地凹痕 | Without | 端接样式 | Crimp |
| 触点数 | 15 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 15 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳与棱镜材料 | :Steel, tin plating |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | Receptacles accept size 20 DF socket contacts. | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | SKT |
| 系列 | HDP-20 | 制造商全称 | HDP-20 |
| 产品子类型 | Connector | 端口数 | 1 Port |
| 应用细节 | Commercial | 适用产品/相关产品 | :HDP-20 Series D Sub Connectors |
环境参数
| 工作温度 | -55C to 105C | ||
