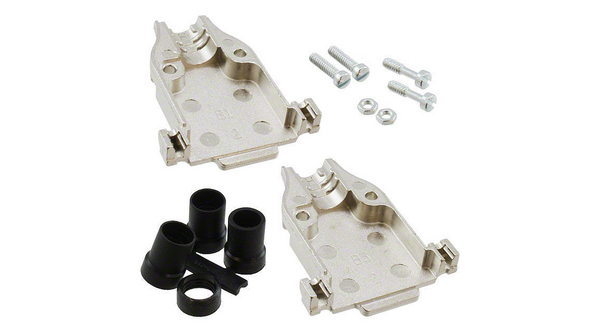

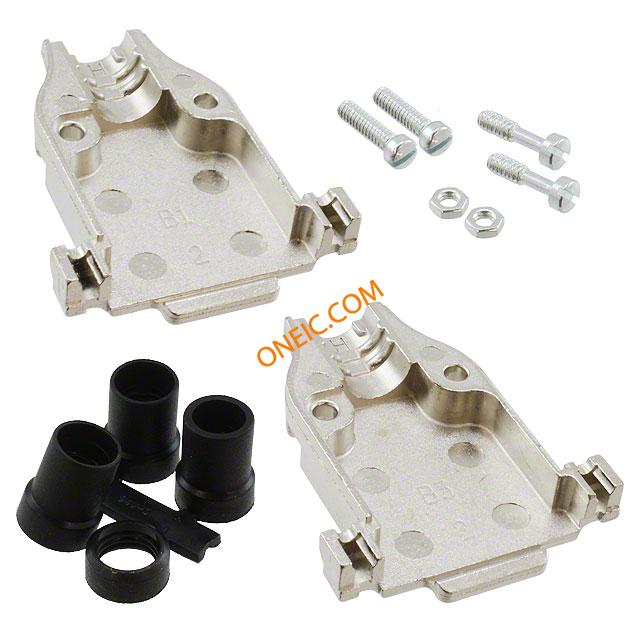

5748676-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 15 POS Backshell/Cable Clamp Die Cast Bright Nickel Over Copper Finish Shell Size 2 Individual D-Sub Backshells KIT W/GROMMETS 15P .32 Backshell/Cable Clamp 180° 2 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Cable Clamps CONN BACKSHELL DB15 DIE CAST 15 Way Shielded Str D Hood, 4-40U Screws Backshell/Cable Clamp 180� 2 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Backshell/Cable Clamp 180° 2 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 4.70 - 8.13 mmNumber of Positions = 15Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub D-SUB BACKSHELL, DA, DIECAST, 15WAY Hood;D-Sub;15Pos;StraightExit;AMP;Die-CastMetal;0.185-0.320In.CblDia;Shield Enclosure: for D-Sub connectors; D-Sub HD 26pin, D-sub 15pin D-Sub metal hood 15P, 5748676-2, TE Connectivity TE Connectivity 15 路 直 锌合金 D-sub 连接器底壳 DIE CAST CBL CLMP KIT,SZ 2 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 连接器类型 - 电压输入 | D-Sub HD 26pin, D-sub 15pin | ||
机械参数
| 颜色 | Silver | 深度 | 48.51 mm |
| 高度 | 15.74 mm | 重量 | 0.064 |
| 镀层 | Nickel over Copper | 材料（通用） | Metal, Zinc Alloy |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 2 | 方向 | straight |
| 安装类型 | Straight | 外壳镀层 | Bright Nickel over Copper |
| 线径 | 4.7...8.13mm | 电缆直径 | 0.185-0.320In. |
| 电缆端类型 | Straight | 连接器类型 | Connector D-Subminiature |
| 螺丝材料 | :Steel | 外壳材料（壳体） | Zinc Die Cast |
| 锁定特性 | threaded joint | 本体材料 | :Zinc Alloy |
| 壳体材料 | Die Cast Zinc Alloy | 总长度 | 39.24 mm |
| 包装数量 | 1 | 连接器颜色 | :Nickel |
| 位数 | 15 | 外壳尺寸-插件 | :2 |
| 电缆对数 | 1 | 螺纹/螺钉/孔尺寸 | UNC4-40 |
| 供应商器件封装 | for D-Sub connectors | 螺钉材料 - 镀层 | :Zinc |
| 外壳与棱镜材料 | metal | 后壳材料及镀层 | Die-CastMetal |
| 外径-未扩张 | :8.13mm | ||
产品信息
| SPG | 1 | 类型 | Backshell/Cable Clamp |
| 系列 | :AMPLIMITE | 产品特性 | Assembly Kit, Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Grommets | 套件内容 | complete shell |
| 制造商全称 | AMP | 附件类型 | Two Piece Backshell |
| 单元数量 | 1 | 角度 | 180° |
| 射频系列/标准 | 5748676 | 适用产品/相关产品 | 748676-2 |
