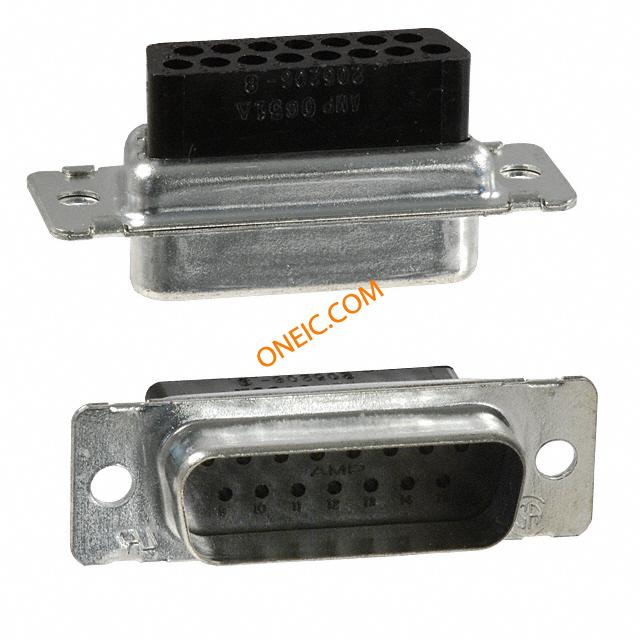

205206-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 15 POS Crimp ST Cable Mount D-Sub Standard Connectors 15P PLUG HOUSING Standard Cable Connectors CONN D-SUB HOUSING PLUG 15POS AMPLIMITE HDP-20 Cable Plug 3mm hole 15P Conn Housing PL 15 POS Crimp ST Cable Mount Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, PLUG, SIZE 2, STEEL Conn;D-Sub;CablePlug;15Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell HDP-20,PLUG,SIZE 2, 15 POSN |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 800 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 18.21 mm |
| 高度 | 12.54 mm | 重量 | 0.002 |
| 包装方式 | Bulk | 外壳尺寸 | 2 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Straight |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 连接器类型 | Crimp Snap | 接触镀层 | Tin |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 锁定特性 | Mounting Holes | 本体材料 | :Metal |
| 壳体材料 | Steel | 总长度 | 39.14 mm |
| 主要材料 | D-Subminiature | 接地凹痕 | Without |
| 端接样式 | Crimp | 触点数 | 15 |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 位数 | 15 |
| 外壳尺寸-插件 | Full Metal Shell | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | Plugs accept size 20 DF pin contacts. | 类型 | Housing |
| 等级 | Standard | 连接器性别 | PL |
| 系列 | HDP-20 | 制造商全称 | HDP-20 |
| 产品子类型 | Connector | 适用产品/相关产品 | :HDP-20 Series Crimp Snap-In Contacts |
