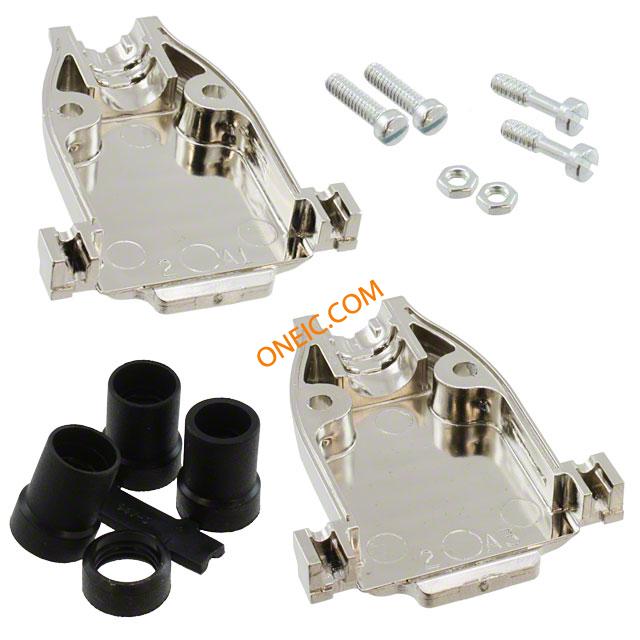

5748677-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 15 POS Backshell/Cable Clamp Bright Nickel Over Copper Individual Kit D-Sub Backshells DSUB ACC: A CABLE CLAMP SHLD Cable Clamps CONN BACKSHELL DB15 METAL PLATED Backshell/Cable Clamp 180� 2 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 2 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 2 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 4.70 - 8.13 mmNumber of Positions = 15Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub BACKSHELL, D, METALLISED, 15WAY Hood;D-Sub;15Pos;StraightExit;AMP;MetallizedPlastic;0.185-0.320In.CblDia;Shield PLTD PLST CBL CLMP KIT,SZ 2 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Silver | 深度 | 48.51 mm |
| 高度 | 15.74 mm | 重量 | 0.018 |
| 镀层 | Nickel over Copper | 材料（通用） | ABS |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 2 | 外壳镀层 | Bright Nickel over Copper |
| 电缆直径 | 0.185-0.320In. | 电缆端类型 | Straight |
| 螺丝材料 | :Steel | 外壳材料（壳体） | Thermoplastic |
| 本体材料 | :Thermoplastic | 总长度 | 39.24 mm |
| 连接器颜色 | :Nickel | 位数 | 15 |
| 外壳尺寸-插件 | :2 | 电缆对数 | 1 |
| 螺钉材料 - 镀层 | :Zinc | 后壳材料及镀层 | MetalizedPlastic |
| 外径-未扩张 | :8.13mm | ||
产品信息
| 类型 | Backshell/Cable Clamp | 系列 | :AMPLIMITE |
| 产品特性 | Assembly Kit, Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Grommets |
| 制造商全称 | AMP | 附件类型 | Two Piece Backshell |
| 射频系列/标准 | 5748677 | 适用产品/相关产品 | 748677-2 |
