点击放大查看

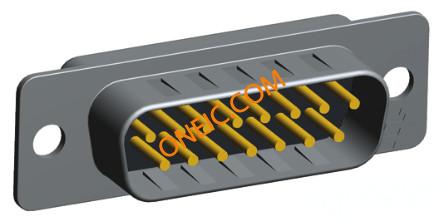

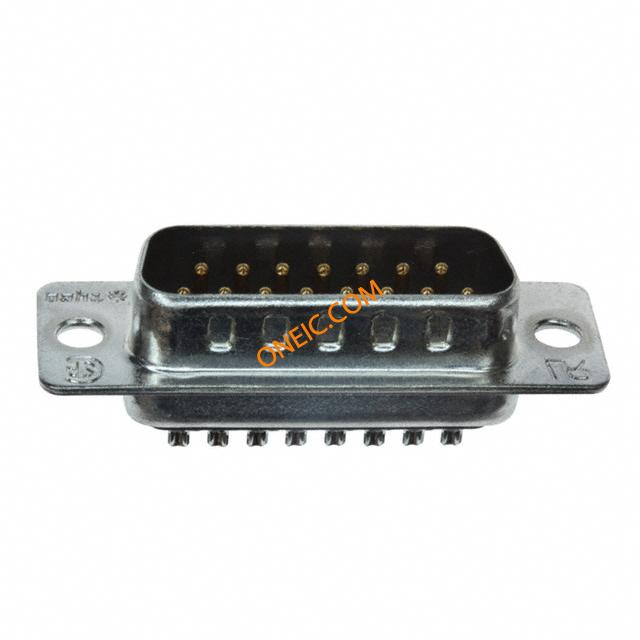

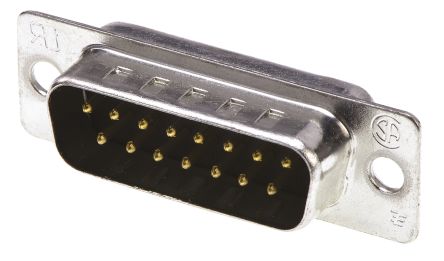

5-747908-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 15 POS 2.77mm Solder Cup ST Panel Mount 15 Terminal 1 Port D-Sub Standard Connectors 15P PLUG TIN Standard Cable Connectors CONN DSUB PLUG 15 POS SLD CUP AMPLIMITE HD-20 d-sub cable plug,15 pin Conn D-Subminiature PIN 15 POS 2.77mm Solder Cup ST Panel Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 15PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, D, SOLDER, 15WAY Conn;D-Sub;CablePlug;15Pos;STR;HD-20Series;20AWG;FullMetalShell Plug; D-Sub; HD 20; PIN:15; male; soldering; for cable; gold flash D-Sub plug 15P, 5-747908-2, TE Connectivity TE Connectivity Amplimite HD-20 系列 面板安装 DB15 15 路 焊接 D-sub 连接器 插头 , 250 V 交流, 3A 15 Plug Solder Cup, Gold Flash |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | Insert,UL94V-0 | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C |
| 认证机构 | ULRecognized,ULListedandCSACertified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDE-20 Series | 额定电压 | 250V |
| 工作电压 | :250V | 最大额定电流 | 3A |
| 最小输入电压 | 250VAC | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 15.45mm |
| 间距 | 2.77 mm | 宽度 | 12.5mm |
| 高度 | 12.5 mm | 长度 | 39.2mm |
| 重量 | 0.006 | 材料（通用） | :Steel |
| 包装方式 | Tray | 外壳尺寸 | 1 |
| 导线线规 | 20 | 端接方式 | Solder Cup |
| 触点尺寸 | 20 | 触头类型 | Solder Cup |
| 第二连接器 | With | 安装类型 | Panel Mount |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 连接器类型 | Solder | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Tin |
| 安装样式 | Wire | 排数 | 2 |
| 壳体镀层 | :Tin | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 锁定特性 | Mounting Holes | 本体材料 | :Metal |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 39.2 mm | 包装数量 | 1 |
| 主要材料 | D-Subminiature | 尺寸/外形 | 39.2 x 12.5 x 15.45mm |
| 连接器 - 电缆 | plug | 接地凹痕 | Without |
| 端接样式 | Solder | 第一触头极性 | PIN |
| 触点数 | 15 | 接触件端接 | :Solder |
| 位数 | 15 | 外壳尺寸-插件 | Steel |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 8µin (0.20µm) |
| 线规或范围 - mm² | 0.5 - 0.6 [20] | 触点材料 - 镀层 | gold flash |
| 外壳与棱镜材料 | :Tin Plated | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| SPG | 1 | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | PIN |
| 系列 | 747 | 产品特性 | Grounding Indents |
| 制造商全称 | HD-20 | 产品子类型 | Connector |
| 适配器系列 | HD 20 | 端口数 | 1 |
| 单元数量 | 1 | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
文档与媒体
相关型号
2-106506-2
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P HDP20 REC ASSY Standard Board Mount Connectors CONN RCPT 15PS R/A BOARDLOCK MET 15P.HDP20 REC.ASSY.
745185-1
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P PCB RECEPTACLE 351 Standard Board Mount Connectors CONN D-SUB RCPT 15POS VERT T/H Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:15 PositionsWith ContactsHousing Gender = ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBSocket;15Pos;STR;HD-20Series;20AWG;FullMetalShell 15 RCPT SP/MS STD
1-745493-5
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm IDT ST Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15S IDC 26-22 AWG Standard Cable Connectors CONN D-SUB RECPT 15P 22-26AWG AU AMPLIMITE HDE-20 d-sub IDC socket,15 way Conn D-Subminiature SKT 15 POS 2.74mm IDT ST Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 15ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;15Pos;STR;HDE-20Series;IDC;26-22AWG;FullMetalShell HDE20 Series 15 Position Socket Discrete Wire IDC D-Sub Connector 15 HDE MS RCPT,22-26,LEAD FREE
5205736-4
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15 RCPT SP/MS STD Standard Board Mount Connectors CONN D-SUB RCPT 15POS VERT T/H Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 RCPT SP/MS STD
1-106506-2
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P RECPT R/A BOARDLOCK MET Standard Board Mount Connectors CONN RCPT 15PS R/A BOARDLOCK MET Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, 40-40UNC, 15WAY TE Connectivity Amplimite HD-20 系列 2.74mm 节距 15 路 直角 通孔安装 PCB D-sub 连接器 插座 15P.HDP20 REC.ASSY.
106506-2
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P RCPT R/A BRDLOCK Standard Board Mount Connectors CONN RCPT 15PS R/A BOARDLOCK MET 15P.HDP20 REC.ASSY.
5745113-2
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15S RA545 Standard Board Mount Connectors CONN DSUB RCPT 15POS T/H RA GOLD Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 RCPT RA/MS STD
747140-2
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors HD-20 15P SOCKET 520 Standard Board Mount Connectors CONN D-SUB RCPT STR 15POS PCB AU Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:15 PositionsConnector Style = ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 RCPT ACT PIN/MS MED STD
5747845-4
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 15 Standard Board Mount Connectors CONN D-SUB RCPT R/A 15POS 30GOLD AMPLIMITE HD-20 dsub PCB socket,15 way Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, PCB, 15WAY Conn;D-Sub;PCBSocket;15Pos;RTAng;HD-20Series;20AWG;FrontMetalShell D-Sub female 15P, 5747845-4, TE Connectivity TE Connectivity Amplimite HD-20 系列 2.74mm 节距 15 路 直角 通孔安装 PCB D-sub 连接器 插座 15 MSFL RCPT RA 318 (IN,FM,BL)
5745439-2
TE Connectivity / AMP
D-Sub Standard Connectors RCPT R/A 15P AU PCB Standard Board Mount Connectors CONN D-SUB RCPT R/A 15POS AU PCB Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub
5747299-2
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 15 standard mntg holes Standard Board Mount Connectors CONN D-SUB RCPT STR 15POS PCB AU AMPLIMITEHD20 PCB Receptacle Straight15P Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, RCPT Conn;D-Sub;PCBSocket;15Pos;STR;HD-20Series;20AWG;FrontMetalShell 15 RCPT SP/FMS STD
5745185-7
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P RCPT SP/MS STD Standard Board Mount Connectors CONN D-SUB RCPT 15POS VERT T/H Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 RCPT SP/MS STD
5745782-4
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 15 Standard Board Mount Connectors CONN D-SUB RCPT R/A 15POS 30GOLD AMPLIMITE HD-20 d-sub PCB socket, 15 way Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, RCPT Conn;D-Sub;PCBSocket;15Pos;RTAng;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 7.06mm 节距 15 路 直角 通孔安装 PCB D-sub 连接器 插座 15 MSFL RCPT RA 318 (IN,FM)
5747837-4
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15S RA590 Standard Board Mount Connectors CONN D-SUB RCPT 15POS R/A GOLD Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, RCPT Conn;D-Sub;PCBSocket;15Pos;RTAng;HD-20Series;20AWG;FrontMetalShell 15 MSFL RCPT RA 590 (IN,FM,BL)
5747813-4
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.77mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15S RA590 Standard Board Mount Connectors CONN D-SUB RCPT R/A 15POS AU 15 MSFL RCPT RA 590L(IN,FM,BL) 15 MSFL RCPT RA 590L(IN,FM,BL) Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub
5788798-1
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Tray D-Sub Standard Connectors DSUB A15S RA318 Standard Board Mount Connectors CONN D-SUB RCPT 15POS R/A GOLD AMPLIMITE HD-20 d-sub PCB socket, 15 way Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Tray Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, RCPT, RT ANGLE Conn;D-Sub;PCBSocket;15Pos;RTAng;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.74mm 节距 15 路 直角 通孔安装 PCB D-sub 连接器 插座 15 HTMSFL ASSY RA 318 (IN,BL)

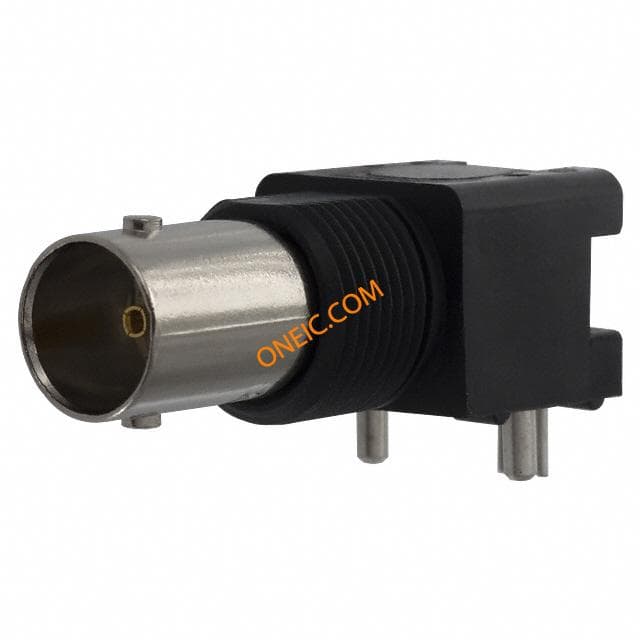

5413194-2
te connectivity / amp
Conn BNC RCP 75Ohm Solder RA Thru-Hole Gold BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB BNC Jack pcb r/a 75ohm RF Connectors / Coaxial Connectors R.A. JACK 75 OHM Conn BNC RCP 75Ohm Solder RA Thru-Hole Gold Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardPCB Mount Angle = Right AngleSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 CONNECTOR,RF,BNC,JACK,PCB,RIGHTANGLE BNC appliance socket, angled 75 Ohm, 5413194-2, TE Connectivity TE Connectivity 直角 75Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC, RT ANG, PCB, JACK
5747299-4
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15 RCPT SP/FMS STD Standard Board Mount Connectors CONN D-SUB RCPT VERT 15POS Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 RCPT SP/FMS STD
745185-7
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors HD-20 15P SOCKET 351 Standard Board Mount Connectors CONN D-SUB RCPT 15POS VERT T/H 15 RCPT SP/MS STD

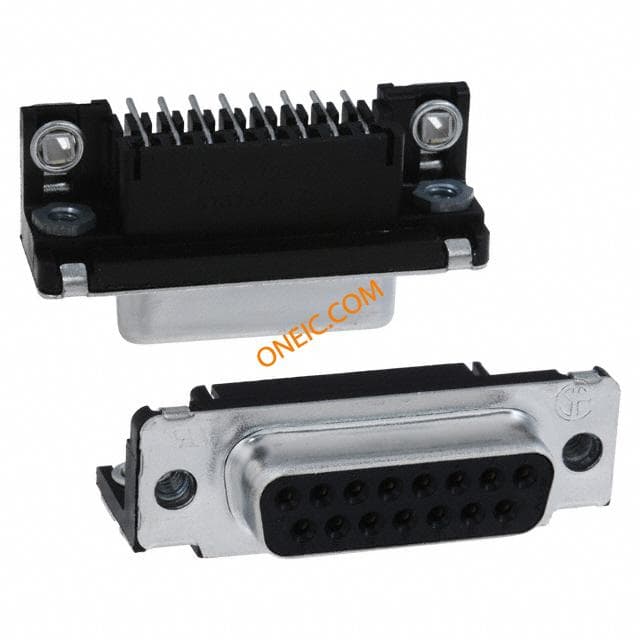

2-42936-9893
