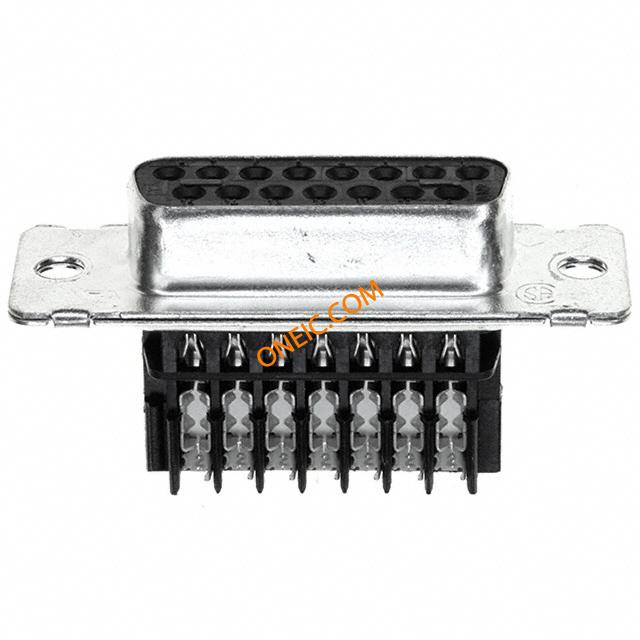

1-745493-5

点击放大查看

1-745493-5

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 15 POS 2.74mm IDT ST Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15S IDC 26-22 AWG Standard Cable Connectors CONN D-SUB RECPT 15P 22-26AWG AU AMPLIMITE HDE-20 d-sub IDC socket,15 way Conn D-Subminiature SKT 15 POS 2.74mm IDT ST Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 15ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;15Pos;STR;HDE-20Series;IDC;26-22AWG;FullMetalShell HDE20 Series 15 Position Socket Discrete Wire IDC D-Sub Connector 15 HDE MS RCPT,22-26,LEAD FREE
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量112

合规参数

RoHSRoHS Compliant标准Insert,UL94V-0
防护类型UL 94V-0抗辐射加固No
无铅定义Not relevant for lead free process认证机构ULRecognized,ULListedandCSACertified
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250V连接器阻抗刺破式压接 (IDC)
最大额定电流Varies by Wire Gauge最小供电电压250VAC

机械参数

颜色Black深度0.567in
间距2.74 mm宽度0.509in
高度12.92 mm长度1.541in
外形尺寸(长x宽)2锁定类型带有
包装方式Tray屏蔽是
电缆类型Discrete Wire, Round Jacketed Cable外壳尺寸2
导线线规26-22端接方式IDT
触点形式Signal触点尺寸20
触头类型Signal外壳表面处理锡
第二连接器With安装类型Cable Mount
外壳镀层Tin端子尺寸20
行程角度Straight连接器类型Insulation Displacement Crimp (IDC)
接触镀层Tin over Nickel法兰特征Housing/Shell (Unthreaded)
外壳涂层Tin安装样式Wire
排数2外壳材料（壳体）Steel
连接器样式D-Sub插入件材料Thermoplastic
锁定特性Mounting Holes触头材料Phosphor Bronze
壳体材料Thermoplastic, Glass Filled总长度39.52 mm
安装特性无包装数量112
主要材料D-Subminiature尺寸/外形1.541 x 0.509 x 0.567in
接地凹痕Without端接样式Crimp
触点数15绝缘直径1.52 [0.060]
位数15外壳尺寸-插件Full Metal Shell
外壳材料及表面处理Steel, Tin Plated接触镀层厚度1µin (0.025µm)
线规或范围 - AWG26 – 22线规或范围 - mm²0.15 - 0.40 [26-22]
外壳尺寸，连接器布局2 (DA, A)

产品信息

备注All connectors are preloaded. Individual conductor strands should be larger tha类型D-Subminiature
等级Standard连接器性别SKT
系列HDE-20制造商全称HDE-20
预装是产品子类型Connector
端口数1 Port应用细节Commercial

环境参数

工作温度-55°C ~ 105°C

文档与媒体

在线文档
1-745493-5?RQPN=1-745493-5
