1-745494-6

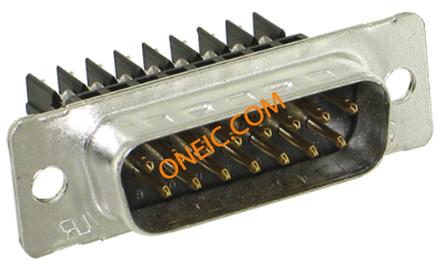

点击放大查看

1-745494-6

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 15 POS 2.74mm IDT ST Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors A15P IDC 26-22AWG Standard Cable Connectors CONN D-SUB PLUG 15P 22-26AWG AU AMPLIMITE HDE-20 IDC Plug Straight 15P Conn D-Subminiature PIN 15 POS 2.74mm IDT ST Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 15PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, PLUG Conn;D-Sub;CablePlug;15Pos;STR;HDE-20Series;IDC;26-22AWG;FullMetalShell HDE20 Series 15 Position Plug Discrete Wire IDC D-Sub Connector 15 HDE MS PLUG,22-26,LEAD FREE
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量112

合规参数

RoHSRoHS Compliant标准Insert,UL94V-0
海关税号85366910抗辐射加固No
无铅定义Not relevant for lead free process认证机构ULRecognized,ULListedandCSACertified
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite HDE-20 Series额定电压250V
最大额定电流Varies by Wire Gauge最小供电电压250VAC

机械参数

颜色Black深度12.92 mm
间距2.74 mm高度12.92 mm
重量0.005包装方式Tray
电缆类型Discrete Wire, Round Jacketed Cable外壳尺寸2
导线线规26-22端接方式IDT
触点尺寸20触头类型Signal
第二连接器With基体材料:Steel
安装类型Cable Mount外壳镀层Tin
行程角度Straight连接器类型Insulation Displacement Crimp (IDC)
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
外壳涂层Tin安装样式Wire
排数2外壳材料（壳体）Steel
连接器样式D-Sub插入件材料Thermoplastic
锁定特性Mounting Holes本体材料:Metal
触头材料Phosphor Bronze壳体材料Thermoplastic, Glass Filled
总长度39.52 mm主要材料D-Subminiature
接地凹痕With端接样式Crimp
触点数15接触件端接:IDC / IDT
绝缘直径1.52 [0.060]位数15
外壳尺寸-插件Full Metal Shell外壳材料及表面处理Steel, Tin Plated
接触镀层厚度Flash线规或范围 - mm²0.15 - 0.40 [26-22]
外壳尺寸，连接器布局2 (DA, A)

产品信息

备注All connectors are preloaded. Individual conductor strands should be larger tha类型D-Subminiature
等级Standard连接器性别PIN
系列HDE-20 (IDC)产品特性Grounding Indents
制造商全称HDE-20产品子类型Connector
端口数1 Port应用细节Commercial

环境参数

工作温度-55°C ~ 105°C

文档与媒体

在线文档
1-745494-6?RQPN=1-745494-6
PDF 文档
1639165.pdf
