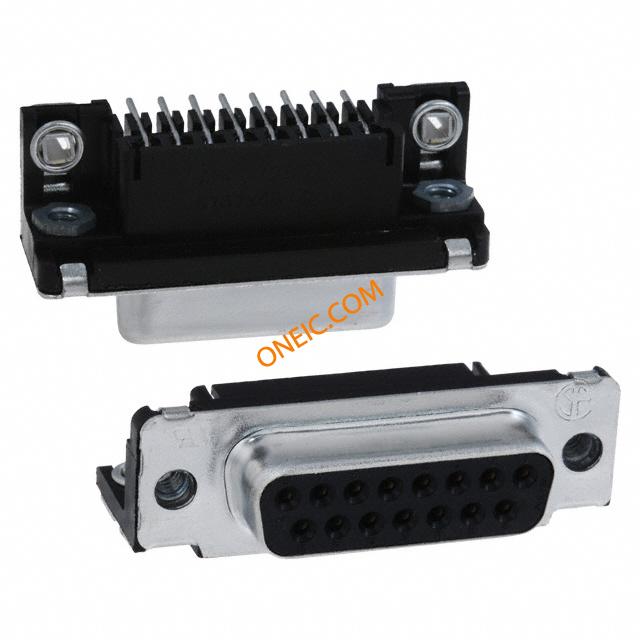

点击放大查看
2-42936-9893
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONN D-SUB RCPT R/A 15POS PCB AU |
| 分类 |
商业参数
| 标准包装数量 | 104 | ||
电气参数
| 额定电压 | 125V | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 包装方式 | Tray |
| 端接方式 | Solder | 触头类型 | Signal |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 排数 | 2 | 连接器样式 | D-Sub |
| 壳体材料 | Thermoplastic | 位数 | 15 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 产品特性 | Board Lock, Ground Strap | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
