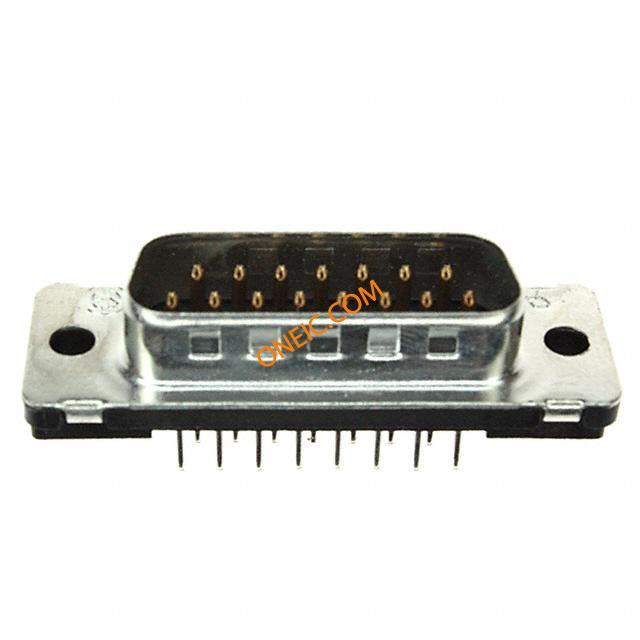

747872-4

点击放大查看

747872-4

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors PLUG FRNT MTL SHL 15 standard mtng holes Standard Board Mount Connectors CONN D-SUB PLUG STR 15POS PCB AU Conn D-Subminiature PIN 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;15Pos;STR;HD-20Series;20AWG;FrontMetalShell 15 PLUG SP/FMS STD
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量13

合规参数

RoHSNo RoHS Version Available抗辐射加固No
无铅定义Not suitable for lead free processing标准编号UL E28476
RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A最小供电电压125VDC/125VAC

机械参数

颜色Black深度12.54 mm
间距2.74 mm高度11.96 mm
密封型No外形尺寸(长x宽)2
锁定类型不带包装方式Tube
壳体颜色黑色引脚样式圆形, 圆形
外壳尺寸2端接方式Solder
触头类型Signal柱间距.108
外壳表面处理锡第二连接器Without
触点形状Round安装类型Vertical
外壳镀层Tin连接器类型Plug, Male Pins
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
接地类型Without安装样式Through Hole
排数2外壳材料（壳体）Steel
电路板厚度0.093 – 0.125 [2.36 – 3.18]连接器样式D-Sub
插入件材料黄铜外形（宽 x 高）Standard
触头材料Brass壳体材料Thermoplastic
总长度39.14 mm安装特性安装孔
包装数量13面板安装类型Without
尺寸/外形0.66 [.026]接地凹痕With
端接样式Solder连接器颜色None
外径.66 mm [ .026 in ]触点数15
位数15外壳尺寸-插件Front Metal Shell
安装孔直径3.05 [.120]外壳材料及表面处理Steel, Tin Plated
端子柱长度4.32 [0.170]接触镀层厚度Flash
外壳与棱镜材料否外壳尺寸，连接器布局2 (DA, A)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别Male系列HD-20
产品特性Grounding Indents可密封否
制造商全称AMP预装是
产品子类型连接器端口数1 Port
其他规格是

环境参数

工作温度-55°C ~ 105°C封装热阻2.36 – 3.18 mm [ .093 – .125 in ]
