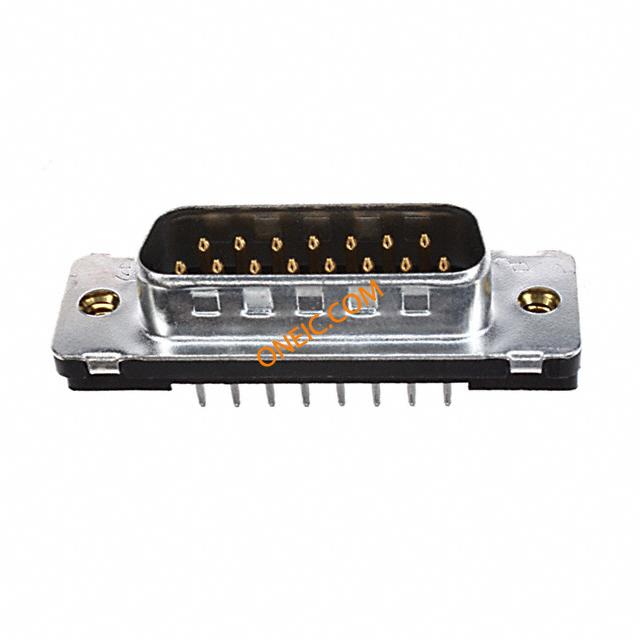

5747872-8

点击放大查看

5747872-8

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors PLUG FRNT MTL SHL 15 threaded inserts Standard Board Mount Connectors CONN D-SUB PLUG STR 15POS PCB AU Conn D-Subminiature PIN 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15PlugPCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;15Pos;STR;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.78mm 节距 15 路 直向 印刷电路板安装 PCB D-sub 连接器 插头 15 PLUG SP/FMS INSRT
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量13

合规参数

RoHSRoHS Compliant By Exemption标准UL E28476
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
连接器阻抗螺纹插针，4-40 UNC, 螺纹插针，4-40 UNC最大额定电流6A
最小供电电压250VDC/250VAC

机械参数

颜色Black深度12.54 mm
间距2.74 mm宽度0.494in
高度11.96 mm长度1.54in
密封型No外形尺寸(长x宽)2
包装方式Tube壳体颜色黑色
引脚样式Round外壳尺寸2
方向直端接方式Solder
触点尺寸2触头类型Signal
柱间距.108外壳表面处理锡
第二连接器With触点形状Round
安装类型Through Hole外壳镀层Tin
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Housing/Shell (4-40)接地类型Without
安装样式Through Hole排数2
外壳材料（壳体）Steel电路板厚度0.062 – 0.093 [1.57 – 2.36]
连接器样式D-Sub插入件材料Brass
锁定特性Threaded Insert, 4-40 UNC外形（宽 x 高）Standard
触头材料Brass壳体材料Thermoplastic
总长度39.14 mm安装特性安装孔
包装数量13面板安装类型Without
尺寸/外形0.66 [.026]接地凹痕With
端接样式Solder连接器颜色None
外径.66 mm [ .026 in ]触点数15
位数15外壳尺寸-插件Front Metal Shell
安装孔直径3.05 [.120]外壳材料及表面处理Steel, Tin Plated
端子柱长度3.18 [0.125]接触镀层厚度Flash
触点材料 - 镀层黄铜外壳与棱镜材料否
外壳尺寸，连接器布局2 (DA, A)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
产品特性Grounding Indents可密封否
制造商全称AMP预装是
产品子类型连接器端口数1 Port
其他规格4-40 UNC，螺纹插件

环境参数

工作温度-55°C ~ 105°C封装热阻1.57 – 2.36 mm [ .062 – .093 in ]
