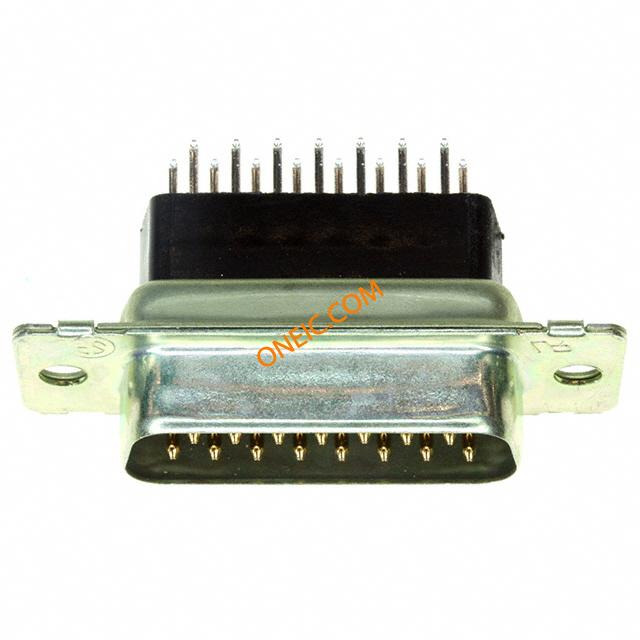

205735-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15 PLUG SP/MS STD 351 Standard Board Mount Connectors CONN PLUG VERT 15 POS GOLD PCB Standard Board Mount Connectors Product Highlights:15 PositionsConnector Style = PlugPCB Mount Angle = VerticalProduct Series = HDP-20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 PLUG SP/MS STD |
| 分类 |
商业参数
| 其他名称 | 2057357 | 标准包装规格 | 13 |
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 13 | ||
合规参数
| RoHS | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 标准编号 | UL E28476 | RoHS/ELV合规状态 | ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | ||
机械参数
| 尺寸 | .093, .125 | 颜色 | Black |
| 间距 | 2.74 mm | 密封型 | No |
| 外形尺寸(长x宽) | 2 | 锁定类型 | 不带 |
| 包装方式 | Bulk | 屏蔽 | 是 |
| 壳体颜色 | 黑色 | 引脚样式 | 正方形 |
| 外壳尺寸 | 2 | 端接方式 | Solder |
| 触头类型 | Signal | 柱间距 | .108 |
| 外壳表面处理 | 锌 | 第二连接器 | Without |
| 触点形状 | Square | 安装类型 | Through Hole |
| 外壳镀层 | Zinc | 端子尺寸 | .12 |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Mating Side; Standard Screws (4-40) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.062 [1.57], 0.093 [2.36] |
| 连接器样式 | D-Sub | 插入件材料 | 黄铜 |
| 屏蔽材料 | 钢 | 触头材料 | Brass |
| 壳体材料 | Polyamide (PA), Nylon, Glass Filled | 包装数量 | 13 |
| 面板安装类型 | Without | 尺寸/外形 | 0.64 [.025] |
| 接地凹痕 | Without | 端接样式 | Through Hole |
| 连接器颜色 | None | 外径 | .64 mm [ .025 in ] |
| 触点数 | 15 | 位数 | 15 |
| 外壳尺寸-插件 | Full Metal | 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc |
| 端子柱长度 | 3.20 [0.126] | 接触镀层厚度 | Flash |
| 外壳与棱镜材料 | 否 | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| 类型 | D-Subminiature | 连接器性别 | PIN |
| 系列 | HDP-20 | 产品特性 | Mounting Brackets |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
| 其他规格 | 否 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
