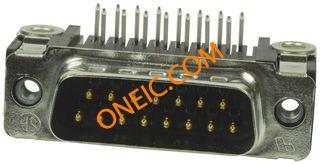

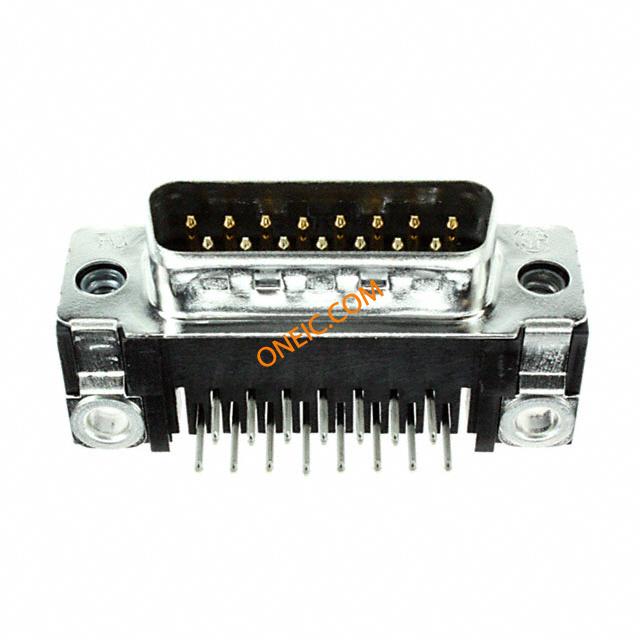

5747236-4

点击放大查看

5747236-4

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors PLUG FRNT MTL SHL 15 Standard Board Mount Connectors CONN DSUB PLUG 15 POS R/A GOLD AMPLIMITE HD-20 d-sub PCB plug, 15 pin Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, PLUG Conn;D-Sub;PCBPlug;15Pos;RTAng;HD-20Series;20AWG;FrontMetalShell 15 MSFL PLUG RA 318 (IN,FM)
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量104

合规参数

RoHSRoHS Compliant海关税号85366910
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without量程（°/s）:TE CONNECTIVITY - Amplimite HD-20 Series
额定电压125V最大额定电流6A

机械参数

颜色Black深度5.97mm
间距2.74 mm宽度12.55mm
高度12.55 mm长度39.14mm
密封型No重量0.005
包装方式Tray外壳尺寸2
端接方式Solder触头类型Signal
第二连接器With触点形状Round
安装类型Through Hole外壳镀层Tin
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Housing/Shell (4-40)接地类型With
尖端材料（笔尖）Tin安装样式Through Hole
排数2外壳材料（壳体）Steel
电路板厚度0.093 [2.36]连接器样式D-Sub
插入件材料Zinc锁定特性Threaded Insert, 4-40 UNC
本体材料:Metal材料表面处理Clear Chromate
外形（宽 x 高）Standard触头材料Brass
壳体材料Thermoplastic总长度39.14 mm
面板安装类型Without尺寸/外形0.66 [.026]
接地凹痕With外形尺寸 长x宽x高8.08 [.318]
端接样式Solder连接器颜色None
触点数15接触件端接:Through Hole Vertical
位数15外壳尺寸-插件Front Metal Shell
安装孔直径3.18 [.125]外壳材料及表面处理Steel, Tin Plated
端子柱长度3.18 [0.125]接触镀层厚度Flash
外壳尺寸，连接器布局2 (DA, A)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
产品特性Ground Strap, Grounding Indents端口数1 Port

环境参数

工作温度-55°C ~ 105°C
