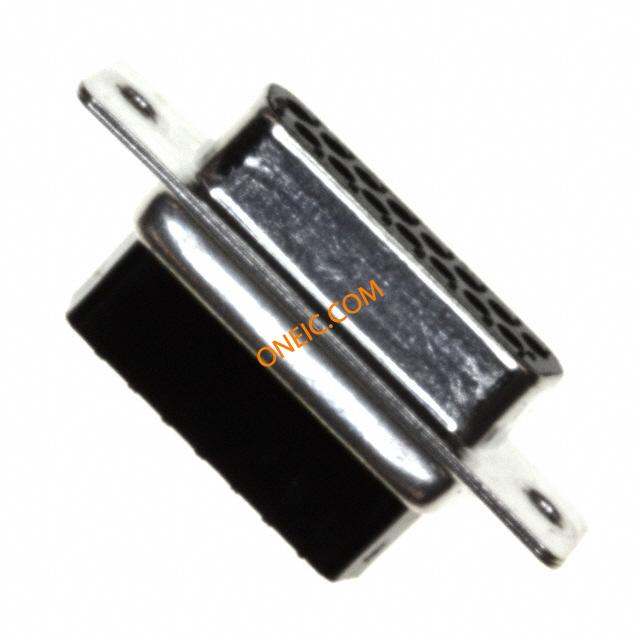

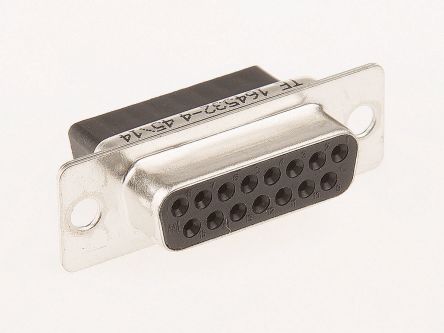

164532-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 15 POS Crimp ST D-Sub Standard Connectors 15P HDP20 REC ASSY Standard Cable Connectors CONN D-SUB RCPT 15POS CRIMP SNAP BOX FOR FEMALE D-SUB 15 Conn Housing RCP 15 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D-Sub; PIN:15; female; w/o terminals; for cable; B:7.9mm; C:33.3mm D-Sub crimp socket-housing 15P, 164532-4, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 15路 直 压接式 D-sub 连接器, 插座 15P.HDP20 REC.ASSY. |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 电容 | 28.2 | 额定电压 | 250 |
| 极数 | 15 | 连接器阻抗 | 安装孔 |
| 最大额定电流 | 3.7A | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 17.9mm |
| 宽度 | 12.55mm | 高度 | 12.5 mm |
| 长度 | 39.1mm | 重量 | 6.88 g |
| 外形尺寸(长x宽) | 2 | 钻孔直径 | 7.9mm |
| 包装方式 | Bulk | 壳体颜色 | 33.3 |
| 外壳尺寸 | 2 | 方向 | 直 |
| 端接方式 | Crimp | 触点形式 | Signal |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin | 端子尺寸 | 20 |
| 连接器类型 | Crimp Snap | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | for cable | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 触头材料 | copper alloy | 壳体材料 | Steel |
| 总长度 | 39.1 mm | 包装数量 | 50 |
| 尺寸/外形 | 39.1 x 12.55 x 17.9mm | 接地凹痕 | Without |
| 端接样式 | Crimp | 连接器颜色 | black |
| 外径 | 39.1mm | 触点数 | 15 |
| 介电材料 | Polybutylene Terephthalate (PBT), Glass Filled | 位数 | 15 |
| 外壳尺寸-插件 | Front Metal Shell | 第一连接器极性 | Female |
| 兼容外壳尺寸（如TM-700等） | 母端子 | 绝缘材料 - 材质 | PBT glass-fibre-reinforced |
| 外壳材料及表面处理 | Steel, Tin Plated | 小外径 | 33.3mm |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| SPG | 50 | 备注 | Without Grounding Tab |
| 类型 | Housing | 等级 | Standard |
| 连接器性别 | RCP | 系列 | HDP-20 (Crimp Snap) |
| 产品子类型 | Connector | 放大器类型 | 39.1 |
| 单元数量 | 1 | 输出配置 | Free Hanging (In-Line) |
环境参数
| 工作温度 | 105°C | ||
