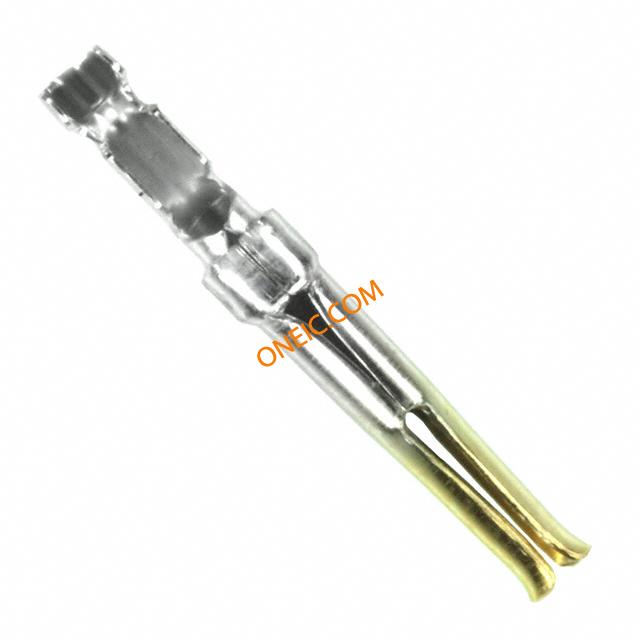

点击放大查看
5-166052-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Reel D-Sub Contacts SOCKET CONTACT CRIMP Standard Cable Connectors CONN SOCKET 28-24AWG CRIMP GOLD AMPLIMITE HD20 socket crimp contact 20DF Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub AMPLIMITEHD20socketcrimpcontact20DF Crimp socket AWG 28...24 PU=500 ST, 5-166052-1, TE Connectivity TE Connectivity Amplimite HD-20系列 母 压接 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG HDF20 SOCKET F CRIMP SIZE28-24 |
| 分类 |
商业参数
| 其他名称 | A105059CT | 产品类别 | D-Sub Contacts |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 压接 | ||
机械参数
| 长度 | 14.4mm | 包装方式 | Reel |
| 导线线规 | 24-28 AWG | 端接方式 | Crimp |
| 触点形式 | Machined | 触点尺寸 | 20 |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 端子尺寸 | 20 | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold Over Nickel | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | 压接扣入式 |
| 包装数量 | Small Reel | 主要材料 | Contact |
| 端接排数 | 压接 | 绝缘高度 | Yes |
| 端接样式 | 插座 | 第一触头极性 | Socket (Female) |
| 端接表面处理 | Tin | 接触件尾部长度 | 20 |
| 接触件端接 | Crimp Snap-In | 绝缘直径 | 1.00 [0.039] |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 28-24 |
| 线规或范围 - mm² | 0.08 - 0.22 [28-24] | 触点材料 - 镀层 | GoldoverNickel |
产品信息
| 制造商 | 1 | 类型 | Signal |
| 等级 | Standard | 连接器性别 | SKT |
| 系列 | HDP-20 (Crimp Snap) | 产品特性 | Insulation Support |
| 描述 | Crimp socket AWG 28...24 | 制造商全称 | AMPLIMITEHD-20 |
| 产品子类型 | Contact | 适用产品/相关产品 | AMPLIMITESub-D |
