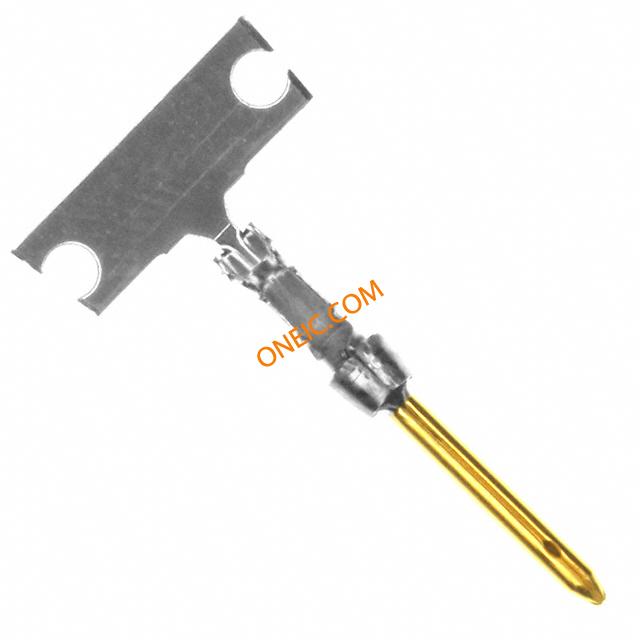

166054-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts PIN CONTACT CRIMP Standard Cable Connectors CONN D-SUB PIN 28-24AWG CRIMP AMPLIMITE HD-20 pin crimp contact 20 DF 166054-1 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinPhosphor Bronze Contact Base MaterialWire Termination Type = CrimpSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, HDP-20 CONTACT, CRIMP, PIN, 28-24AWG, REEL AMPLIMITEHD-20pincrimpcontact20DF TE Connectivity Amplimite HD-20系列 尺寸20触点 公 压接 D-sub 连接器触点, 镀金 触点, 28 → 24 AWG HD20 PIN CONTACT |
| 分类 |
商业参数
| 其他名称 | A99329CT | 产品类别 | D-Sub Contacts |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 12500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 接触电阻 | 15mΩ | 最大额定电流 | 6A |
机械参数
| 长度 | 14.9mm | 重量 | 0.004 |
| 包装方式 | Reel | 导线线规 | 24-28 AWG |
| 端接方式 | Crimp | 触点形式 | Stamped |
| 触点尺寸 | 20DF | 触头类型 | Signal |
| 引脚直径 | 1.02 [0.040] | 插针或插孔 | Pin |
| 连接器类型 | Connector D-Subminiature | 接触镀层 | Gold Over Nickel |
| 触头材料 | Brass | 包装数量 | Strip |
| 主要材料 | Contact | 绝缘高度 | Yes |
| 第一触头极性 | Socket (Female) | 接触件尾部长度 | 20 |
| 接触件端接 | Crimp Snap-In | 绝缘直径 | 1.00 [0.039] |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 0.08 - 0.22 [28-24] |
| 触点材料 - 镀层 | Gold | ||
产品信息
| 类型 | Signal | 等级 | Standard |
| 连接器性别 | PIN | 系列 | HDP-20 (Crimp Snap) |
| 产品特性 | Insulation Support | 制造商全称 | AMPLIMITEHDP-20 |
| 产品子类型 | Contact | 适用产品/相关产品 | :D Sub Connectors |
