点击放大查看

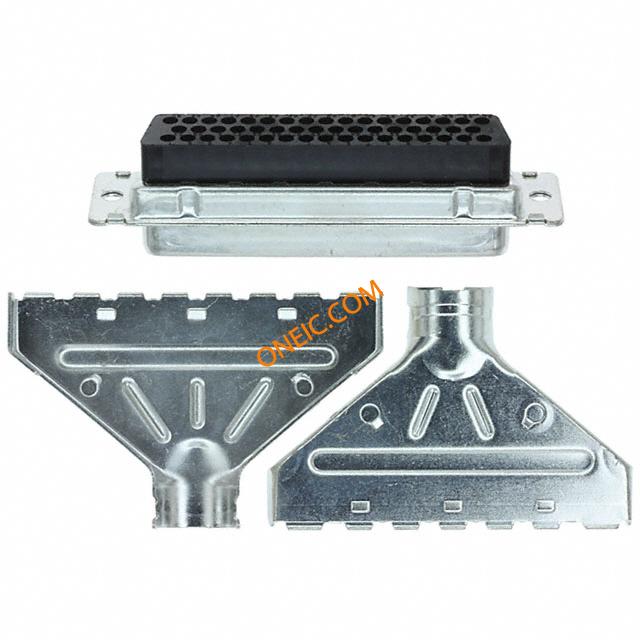

1658653-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 50 POS Crimp ST Cable Mount 50Terminal 1Port Bulk D-Sub Standard Connectors DSUB C78P CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 50POS W/O CONT Conn Housing RCP 50 POS 2.76mm Crimp ST Bulk Conn Housing RCP 50 POS 2.76mm Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 50ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;50Pos;STR;HDP-20Series;CrimpSnap;20AWG;ShieldingHDWRKit HDP20 Series 50 Position Shielding Hardware Socket Metal Kit D-Sub KIT,HDP-20,OVRMLD,RCPT,SIZE 5, |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 防护类型 | UL 94V-0 | 认证机构 | ULRecognized,ULListedandCSACertified |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250VAC | 连接器阻抗 | 安装孔 |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 间距 | 2.76 mm |
| 高度 | 15.74 mm | 外形尺寸(长x宽) | 5 |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 屏蔽 | 是 | 壳体颜色 | 黑色 |
| 外壳尺寸 | 5 | 导线线规 | 20 |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳表面处理 | 锡 | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 外壳镀层 | Tin |
| 端子尺寸 | 20 | 线径 | 8.59 – 12.19 mm [ .338 – .48 in ] |
| 行程角度 | Straight | 电缆直径 | 0.45" |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 屏蔽材料 | Steel |
| 壳体材料 | Nylon | 总长度 | 67.31 mm |
| 包装数量 | 1 | 主要材料 | D-Subminiature |
| 端接样式 | Crimp | 触点数 | 50 POS |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 绝缘直径 | 0.23-0.562" |
| 位数 | 50 | 外壳镀层厚度 | 200µin (5.08µm) |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 5 (DD, D) |
产品信息
| 备注 | Contacts Not Provided | 类型 | D-Subminiature |
| 等级 | 标准 | 连接器性别 | SKT |
| 产品特性 | Shielded | 制造商全称 | HDP-20 |
| 产品子类型 | 连接器 | 应用细节 | Commercial |
环境参数
| 工作温度 | -55C to 105C | ||
