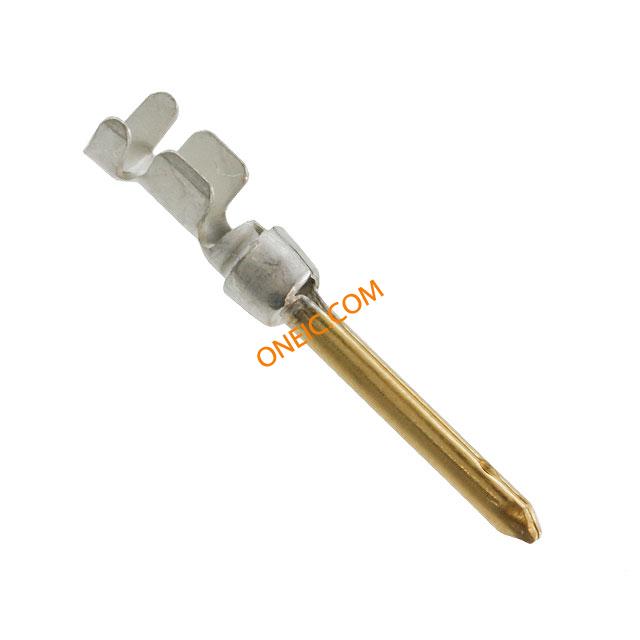

166293-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts PIN CONTACT CRIMP 24-20 AWG Standard Cable Connectors CONN PIN 24-20AWG CRIMP GOLD AMPLIMITE HD-20 pin crimp contact 20 DF 166293-1 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT PIN Connector,contact,crimppin,24-20awg Contact; male; 0.2÷0.56mm2; 24÷20AWG; crimped; 7.5A; copper alloy Crimp contact pin PU=100 ST, 166293-1, TE Connectivity TE Connectivity Amplimite HD-20系列 尺寸20触点 公 压接 D-sub 连接器触点, 镀金 触点, 24 → 20 AWG LP HD20 COSI PIN CONTACT DF; 24-20 AWG |
| 分类 |
商业参数
| 产品类别 | D-Sub Contacts | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 最大额定电流 | 7.5A | ||
机械参数
| 重量 | 0.01 | 包装方式 | Bulk |
| 导线线规 | 24-20 | 端接方式 | Crimp |
| 触点形式 | Stamped | 触点尺寸 | 20 |
| 触头类型 | Stamped / Formed Contacts | 安装类型 | crimped |
| 插针或插孔 | Pin | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold | 触头材料 | Brass |
| 包装数量 | Loose Piece | 连接器 - 电缆 | contact |
| 绝缘高度 | Yes | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp Snap-In |
| 绝缘直径 | 1.52 [0.060] | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | :24AWG | 线规或范围 - mm² | 0.2 - 0.6 [24-20] |
| 外径-未扩张 | :1.52mm | ||
产品信息
| SPG | 500 | 类型 | Signal |
| 等级 | Standard | 连接器性别 | PIN |
| 系列 | HD-20 | 产品特性 | Insulation Support |
| 产品子类型 | Contact | 单元数量 | 1 |
| 适用产品/相关产品 | :D Sub Connectors | ||
