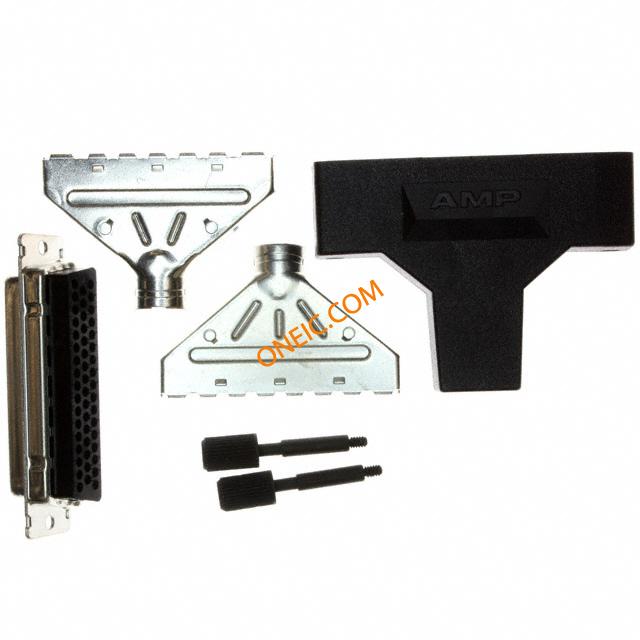

5747959-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 50 POS Crimp ST Bulk D-Sub Standard Connectors DSUB D50S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 50POS W/O CONT Conn Housing RCP 50 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 50ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, SIZE 5, STEEL Conn;D-Sub;CableSocket;50Pos;STR;HDP-20Series;CrimpSnap;20AWG;ShieldingHDWRKit HDP20 Series 50 Position Crimp Contact Shielded Hardware Socket Metal Kit D-Sub KIT,RCPT,50P,HDP-20,SHLD ENCLSRE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85366910 | 认证机构 | ULRecognized,ULListedandCSACertified |
电气参数
| 额定电压 | 250VAC | ||
机械参数
| 颜色 | Black | 高度 | 0.73 in |
| 重量 | 0.054 | 包装方式 | Bulk |
| 外壳尺寸 | 5 | 导线线规 | 20 |
| 端接方式 | Crimp | 触头类型 | Signal |
| 安装类型 | Straight | 外壳镀层 | Tin over Copper |
| 行程角度 | Straight | 电缆直径 | 0.45" |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Cable Side (4-40) |
| 安装样式 | Wire | 排数 | 3 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 本体材料 | :Metal |
| 屏蔽材料 | Steel | 壳体材料 | Nylon |
| 主要材料 | D-Subminiature | 触点数 | 50 |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 绝缘直径 | 0.23-0.562" |
| 位数 | 50 | 外壳尺寸-插件 | :5 |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 5 (DD, D) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | HDP-20 |
| 产品特性 | Backshell, Shielded | 硬件配件 | Jackscrews |
| 制造商全称 | HDP-20 | 应用细节 | Commercial |
| 适用产品/相关产品 | :HDP-20 Series Crimp Snap-In Contacts | ||
