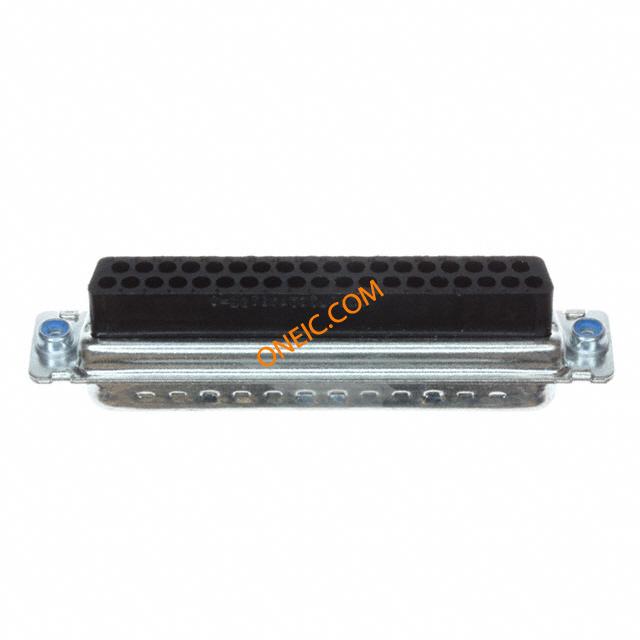

745135-4

点击放大查看

745135-4

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature M 37 POS Crimp D-Sub Standard Connectors DSUB C37P CRIMP Standard Cable Connectors CONN D-SUB HOUSING PLUG 37POS AMPLIMITE HDP-20 Cable Plug 4-40 nut 37P Conn Housing PL 37 POS Crimp ST Conn Housing PL 37 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 37PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, PLUG, SIZE 4, STEEL Conn;D-Sub;CablePlug;37Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell HDP-20,PLUG,SIZE 4, 37 POSN,CL
分类
连接器解决方案D-Sub连接器D-Sub连接器

商业参数

产品类别D-Sub Standard Connectors标准包装数量Bulk
工厂包装数量600

合规参数

RoHSRoHS Compliant标准Insert,UL94V-0
海关税号85366910无铅定义Not relevant for lead free process
认证机构ULRecognized,ULListedandCSACertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac最小供电电压250VAC

机械参数

颜色Black深度17.8 mm
高度12.54 mm重量1
包装方式Bulk外壳尺寸4
导线线规20端接方式Crimp
触点尺寸20触头类型Signal
第二连接器With外壳颜色Black
安装类型Free Hanging (In-Line)外壳镀层Tin
行程角度Straight连接器类型Crimp Snap
法兰特征Board Side (4-40)外壳涂层Tin
排数2外壳材料（壳体）Steel
连接器样式D-Sub插入件材料Thermoplastic
锁定特性Clinch Nut, 4-40 UNC本体材料:Metal
壳体材料Nylon总长度69.39 mm
主要材料D-Subminiature接地凹痕With
端接样式Crimp触点数37 POS
介电材料Polyamide (PA), Nylon, Glass Filled位数37
外壳尺寸-插件Full Metal Shell外壳镀层厚度200µin (5.08µm)
外壳材料及表面处理Steel, Tin Plated外壳尺寸，连接器布局4 (DC, C)

产品信息

备注Clinch Nut: 4-40 threads with self-locking feature; Plugs accept size 20 DF pin类型D-Subminiature
等级Standard连接器性别M
系列HDP-20 (Crimp Snap)产品特性Grounding Indents
制造商全称HDP-20产品子类型Connector
应用细节Commercial适用产品/相关产品:HDP-20 Series Crimp Snap-In Contacts
