点击放大查看

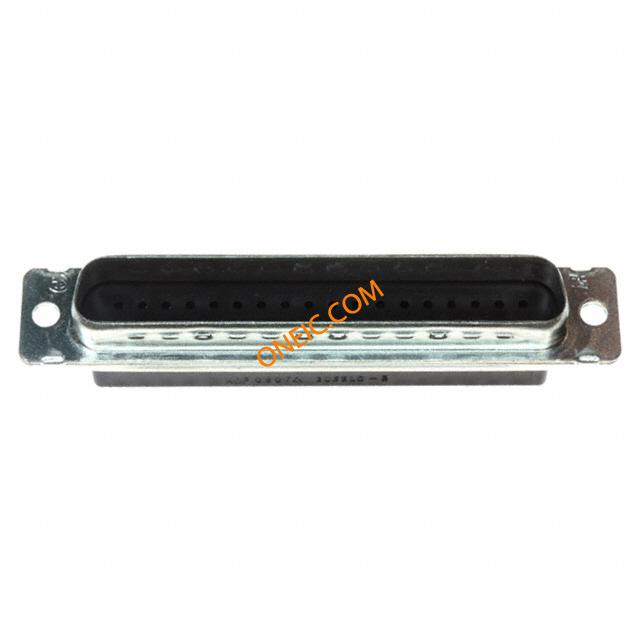

205210-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 37 POS Crimp ST D-Sub Standard Connectors 37P PLUG TIN IN Standard Cable Connectors CONN D-SUB HOUSING PLUG 37POS AMPLIMITE HDP-20 d-sub cable plug,37 pin Conn Housing PL 37 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 37PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG HOUSING, D, T&D, 37WAY Conn;D-Sub;CablePlug;37Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 37路 直 压接式 D-sub 连接器, 插头 PLUG ASSY SIZE 4 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized,ULListedandCSACertified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 VAC | 工作电压 | :250V |
| 接触电阻 | :15mohm | 击穿电压 | :1kV |
| 最大额定电流 | :7.5A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 17.8mm |
| 宽度 | 12.54mm | 高度 | 12.54 mm |
| 长度 | 69.31mm | 重量 | 0.012 |
| 包装方式 | Bulk | 外壳尺寸 | 4 |
| 导线线规 | 18-28 AWG | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 行程角度 | Straight | 连接器类型 | Crimp Snap |
| 接触镀层 | Tin | 法兰特征 | Housing/Shell (Unthreaded) |
| 外壳涂层 | Tin | 安装样式 | Wire |
| 排数 | 2 | 壳体镀层 | :Tin |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 本体材料 | :Metal | 壳体材料 | Steel |
| 总长度 | 69.31 mm | 主要材料 | D-Subminiature |
| 接地凹痕 | With | 端接样式 | Crimp |
| 触点数 | 37 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 37 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳与棱镜材料 | :Steel, tin plating |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 备注 | Plugs accept size 20 DF pin contacts. | 类型 | Housing |
| 等级 | Standard | 连接器性别 | PL |
| 系列 | HDP-20 | CAD图纸 | 3D CAD Model |
| 制造商全称 | HDP-20 | 产品子类型 | Connector |
| 应用细节 | Commercial | 适用产品/相关产品 | :HDP-20 Series D Sub Connectors |
环境参数
| 工作温度 | 105°C | ||
