点击放大查看

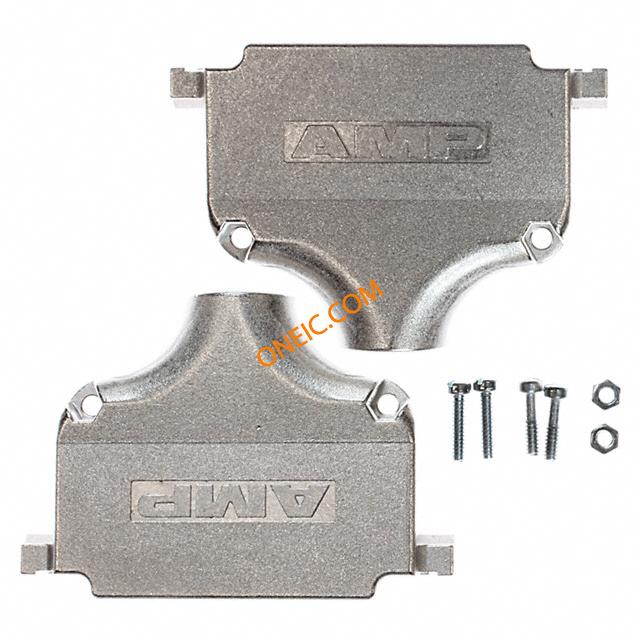

5745174-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 37 POS D-Sub Backshell/Cable Clamp Kit Die Cast Bright Nickel Over Copper Shell Size 4 Individual D-Sub Backshells DSUB ACC: C CABLE CLAMP SHLD Backshell/Cable Clamp 180° 4 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Cable Clamps CONN BACKSHELL DB37 DIE CAST AMPLIMITE shielded backshell kit, size 4 Backshell/Cable Clamp 180� 4 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Backshell/Cable Clamp 180° 4 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 16.51 mmNumber of Positions = 37Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE CLAMP KIT, SIZE 4, ZINC ALLOY Hood;D-Sub;37Pos;StraightExit;AMP;Die-CastMetal;0.650In.CblDia;EMI/RFIShield TE Connectivity 37 路 直 锌合金 D-sub 连接器底壳 CABLE CLAMP KIT,SZ 4 |
| 分类 |
商业参数
| 交货时间 | 220 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 73182300 | ||
机械参数
| 颜色 | Silver | 深度 | 48.76 mm |
| 高度 | 20.32 mm | 重量 | 0.091 |
| 镀层 | Nickel over Copper | 材料（通用） | Metal, Zinc Alloy |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 4 | 安装类型 | Straight |
| 外壳镀层 | Bright Nickel over Copper | 电缆直径 | 16.51 mm |
| 电缆端类型 | Straight | 连接器类型 | Connector D-Subminiature |
| 外壳材料（壳体） | Zinc Die Cast | 本体材料 | :Zinc |
| 壳体材料 | Die Cast Zinc Alloy | 总长度 | 63.5 mm |
| 位数 | 37 | 电缆对数 | 1 |
| 后壳材料及镀层 | Die-CastMetal | ||
产品信息
| 类型 | Backshell/Cable Clamp Kit | 系列 | :AMPLIMITE |
| 产品特性 | Assembly Kit, Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Strain Relief |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 附件类型 | Two Piece Backshell | 角度 | 180° |
| 射频系列/标准 | 5745174 | 适用产品/相关产品 | 745174-1 |
环境参数
| 工作温度 | -55C to 105C | ||
