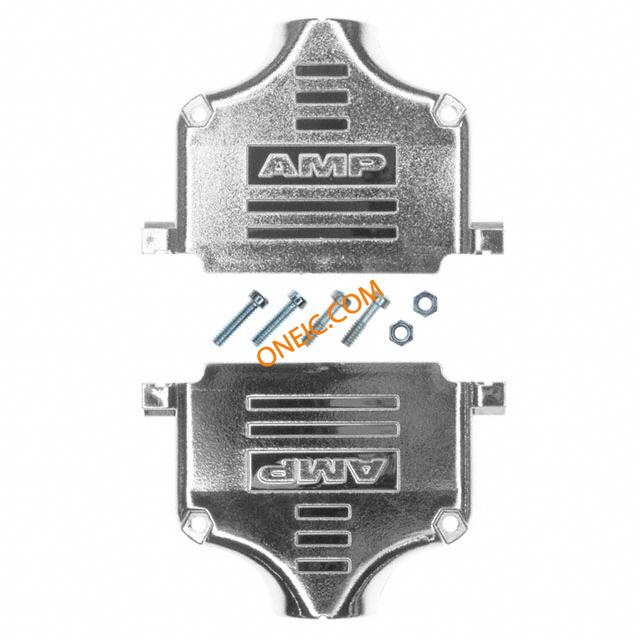

点击放大查看
5747100-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 37 POS Backshell/Cable Clamp Thermoplastic Bright Nickel Over Copper Finish Shell Size 4 Individual D-Sub Backshells CABLE CLAMP KIT SIZE 4 Cable Clamps CONN BACKSHELL DB37 METAL PLATED Backshell/Cable Clamp 180� 4 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Backshell/Cable Clamp 180° 4 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Kit Backshell/Cable Clamp 180° 4 Shell Size Bright Nickel Over Copper Metal Plated Thermoplastic Individual Kit Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 16.51 mmShell Size = 4Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE CLAMP KIT, SIZE 4, THERMOPLASTIC CABLE CLAMP KIT,SZ 4 |
| 分类 |
商业参数
| 交货时间 | 98 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
机械参数
| 颜色 | Silver | 深度 | 48.76 mm |
| 高度 | 20.32 mm | 重量 | 0.00001 |
| 镀层 | Nickel over Copper | 材料（通用） | Thermoplastic |
| 包装方式 | Individual Kit | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 4 | 安装类型 | Straight |
| 外壳镀层 | Nickel over Copper | 电缆端类型 | Straight |
| 连接器类型 | :D Sub | 外壳材料（壳体） | Thermoplastic |
| 本体材料 | :Thermoplastic | 位数 | 37 |
| 外壳尺寸-插件 | :DC | 电缆对数 | 1 |
| 外部壳体材料 | :Plastic | ||
产品信息
| 类型 | Backshell/Cable Clamp | 系列 | :AMPLIMITE |
| 已删除 | Compliant | 产品特性 | Assembly Kit, Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Strain Relief | 附件类型 | Two Piece Backshell |
| 射频系列/标准 | 5747100 | 适用产品/相关产品 | 747100-1 |
