5-747917-2

点击放大查看

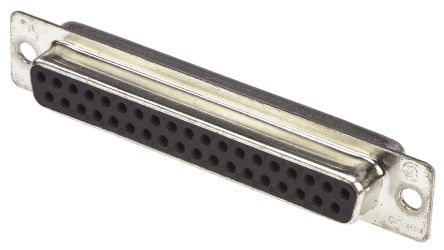

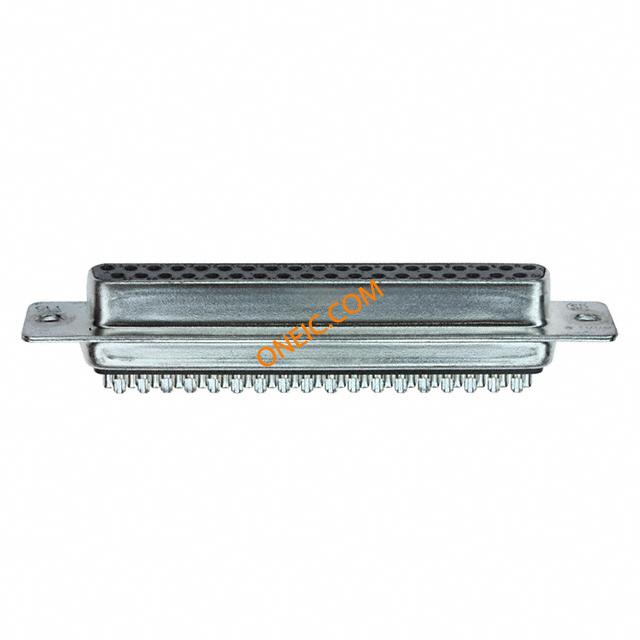

5-747917-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 37 POS 2.77mm Solder Cup ST Cable Mount 37 Terminal 1 Port D-Sub Standard Connectors 37P SOCKET TIN Standard Cable Connectors CONN D-SUB RCPT 37POS AU FLASH AMPLIMITE HD-20 d-sub cable socket,37way Conn D-Subminiature SKT 37 POS 2.77mm Solder Cup ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 37ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;37Pos;STR;HD-20Series;20AWG;FullMetalShell TE Connectivity Amplimite HD-20 系列 面板安装 DB37 37 路 焊接 D-sub 连接器 插座 , 250 V 交流, 3A 37 Rcpt Solder Cup, Gold Flash
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量40

合规参数

RoHSRoHS Compliant标准Insert,UL94V-0
抗辐射加固No无铅定义Wave solder capable to 240°C
认证机构ULRecognized,ULListedandCSACertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250V连接器阻抗焊接
最大额定电流3A最小供电电压250VAC

机械参数

颜色Black深度14.9mm
间距2.77 mm宽度12.5mm
高度12.5 mm长度69.4mm
外形尺寸(长x宽)4包装方式Tray
外壳尺寸4导线线规20
方向直端接方式Solder Cup
触点尺寸20触头类型Solder Cup
外壳表面处理锡第二连接器With
安装类型Cable Mount外壳镀层Tin
端子尺寸20行程角度Straight
连接器类型Solder接触镀层Gold
法兰特征Housing/Shell (Unthreaded)外壳涂层Tin
安装样式Wire排数2
封装形式不带外壳材料（壳体）Steel
连接器样式D-Sub插入件材料Thermoplastic
锁定特性Mounting Holes触头材料Phosphor Bronze
壳体材料Polybutylene Terephthalate (PBT), Glass Filled总长度69.4 mm
安装特性无主要材料D-Subminiature
尺寸/外形69.4 x 12.5 x 14.9mm接地凹痕Without
端接样式Solder触点数37
位数37外壳尺寸-插件Full Metal Shell
外壳材料及表面处理Steel, Tin Plated典型触点布局Solder Cup
接触镀层厚度8µin (0.20µm)线规或范围 - AWG0.5 - 0.6 [20]
触点材料 - 镀层热塑性外壳尺寸，连接器布局4 (DC, C)

产品信息

类型D-Subminiature等级Standard
连接器性别SKT系列HD-20
制造商全称HD-20预装是
产品子类型Connector端口数1 Port
应用细节Commercial

环境参数

工作温度-55°C ~ 105°C

文档与媒体

PDF 文档
1639165.pdf
