5747375-2

点击放大查看

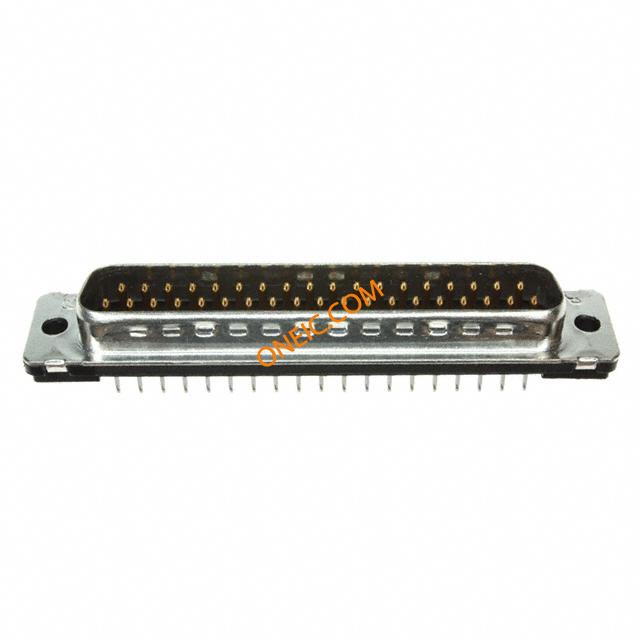

5747375-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors PLUG FRNT MTL SHL 37 standard mtng holes Standard Board Mount Connectors CONN D-SUB PLUG STR 37POS PCB AU AMPLIMITE HD-20 PCB Plug Straight 37P STRGHT POST CONNECT;D-SUB;METAL PLUG W/STD MOUNT;37 Conn D-Subminiature PIN 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:Number of Positions = 37PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 37POS, PLUG Conn;D-Sub;PCBPlug;37Pos;STR;HD-20Series;20AWG;FrontMetalShell 37 PLUG SP/FMS STD
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量7

合规参数

RoHSRoHS Compliant海关税号85366910
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without量程（°/s）:TE CONNECTIVITY - Amplimite HD-20 Series
额定电压125V最大额定电流6A
最小供电电压250VDC/250VAC

机械参数

颜色Black深度12.55 mm
间距2.77 mm高度11.83 mm
密封型No重量0.009
包装方式Tube外壳尺寸4
端接方式Solder触头类型Signal
第二连接器Without触点形状Round
安装类型Through Hole外壳镀层Tin
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Housing/Shell (Unthreaded)接地类型Without
安装样式Through Hole排数2
外壳材料（壳体）Steel电路板厚度0.062 – 0.093 [1.57 – 2.36]
连接器样式D-Sub本体材料:Metal
外形（宽 x 高）Standard触头材料Brass
壳体材料Thermoplastic总长度69.39 mm
面板安装类型Without尺寸/外形0.66 [.026]
接地凹痕With端接样式Solder
连接器颜色None触点数37
接触件端接:Through Hole Vertical位数37
外壳尺寸-插件Front Metal Shell安装孔直径3.05 [.120]
外壳材料及表面处理Steel, Tin Plated端子柱长度3.18 [0.125]
接触镀层厚度Flash外壳尺寸，连接器布局4 (DC, C)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
产品特性Grounding Indents制造商全称AMP
端口数1 Port

环境参数

工作温度-55°C ~ 105°C

文档与媒体

在线文档
5747375-2?RQPN=5747375-2
在线文档
TE.Connect?C=1&PN=5747375-2&M=BYPN&LG=1&I=13
PDF 文档
1648470.pdf
