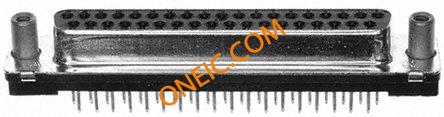

点击放大查看

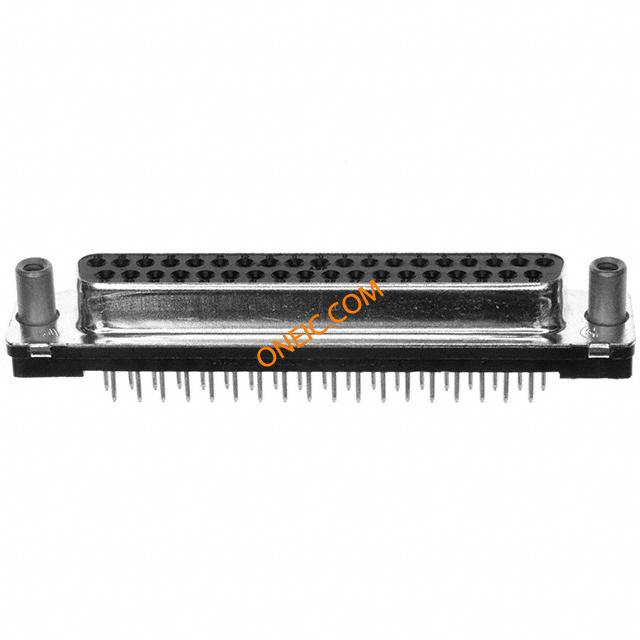

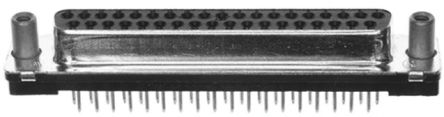

1-5747301-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 37 female screwlocks Standard Board Mount Connectors CONN D-SUB RCPT STR 37POS PCB AU AMPLIMITE HD-20 d-sub PCB socket, 37 way Conn D-Subminiature SKT 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:Number of Positions = 37ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 37POS, RCPT Conn;D-Sub;PCBSocket;37Pos;STR;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.77mm 节距 37 路 直向 通孔安装 PCB D-sub 连接器 插座 37 RCPT SP/FMS SCRLK |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 7 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
| 额定电压 | 125V | 最大额定电流 | 6A |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 颜色 | Black | 深度 | 12.55mm |
| 间距 | 2.77 mm | 宽度 | 5.99mm |
| 高度 | 12.16 mm | 长度 | 69.39mm |
| 密封型 | No | 重量 | 0.014 |
| 包装方式 | Tube | 外壳尺寸 | 4 |
| 端接方式 | Solder | 触点尺寸 | 4 |
| 触头类型 | Signal | 第二连接器 | With |
| 触点形状 | Round | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.093 â 0.125 [2.36 â 3.18] | 连接器样式 | D-Sub |
| 锁定特性 | Female Screwlocks, Fixed | 本体材料 | :Metal |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 69.39 mm |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | Without | 端接样式 | Solder |
| 连接器颜色 | None | 触点数 | 37 |
| 接触件端接 | :Through Hole Vertical | 位数 | 37 |
| 外壳尺寸-插件 | Front Metal Shell | 安装孔直径 | 3.07 [.121] |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 4.32 [0.170] |
| 接触镀层厚度 | 30µin (0.76µm) | 螺钉材料 - 镀层 | Zinc |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 备注 | All receptacles are preloaded with size 20 DF posted socket contacts | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD-20 |
| 制造商全称 | AMP | 端口数 | 1 Port |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
