点击放大查看

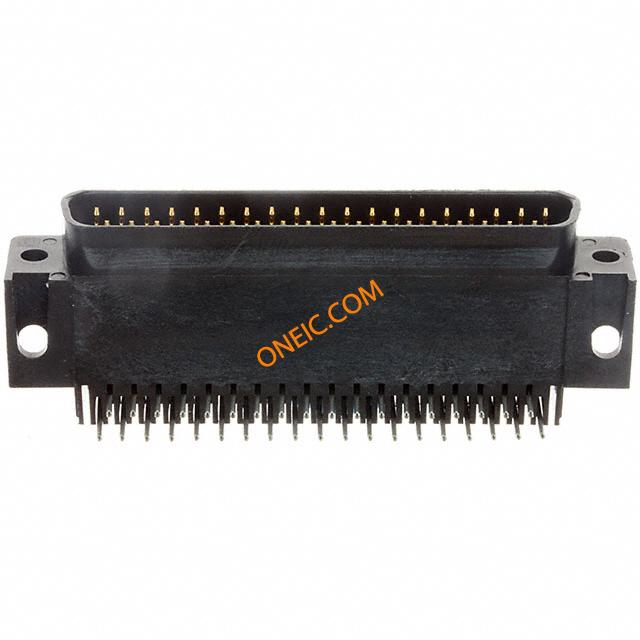

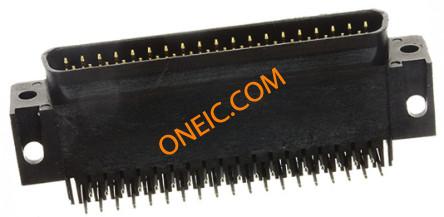

5747470-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PL 37 POS 2.75mm Solder RA Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors DSUB C37P RA590 Standard Board Mount Connectors CONN D-SUB PLUG R/A 37POS PCB AU AMPLIMITE HD-20 PCB Plug Right Angle 37P RT ANGL POST PC BOARD D-SUB;PLASTC PLUG W/STD MOUNT;37 Conn D-Subminiature PIN 37 POS 2.76mm Solder RA Thru-Hole 37 Terminal 1 Port Conn D-Subminiature PIN 37 POS 2.76mm Solder RA Thru-Hole 37 Terminal 1 Port Product Highlights:37 PositionsPlugPCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 37POS, PLUG Conn;D-Sub;PCBPlug;37Pos;RTAng;HD-20Series;20AWG;AllPlasticShell HD-20 PLUG 37P RA 590 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 56 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
| 额定电压 | 125V | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 间距 | 2.75 mm |
| 密封型 | No | 重量 | 0 |
| 占位面积 | 14.99 [.590] | 包装方式 | Tray |
| 外壳尺寸 | 4 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | Without |
| 触点形状 | Round | 安装类型 | Through Hole |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 电路板厚度 | 0.093 [2.36] | 连接器样式 | D-Sub |
| 本体材料 | :Plastic | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | Without | 端接样式 | Through Hole |
| 连接器颜色 | None | 触点数 | 37 |
| 接触件端接 | :Through Hole Vertical | 位数 | 37 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 3.18 [.125] |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PL | 系列 | HD-20 |
| 制造商全称 | AMP | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
