5745413-1

点击放大查看

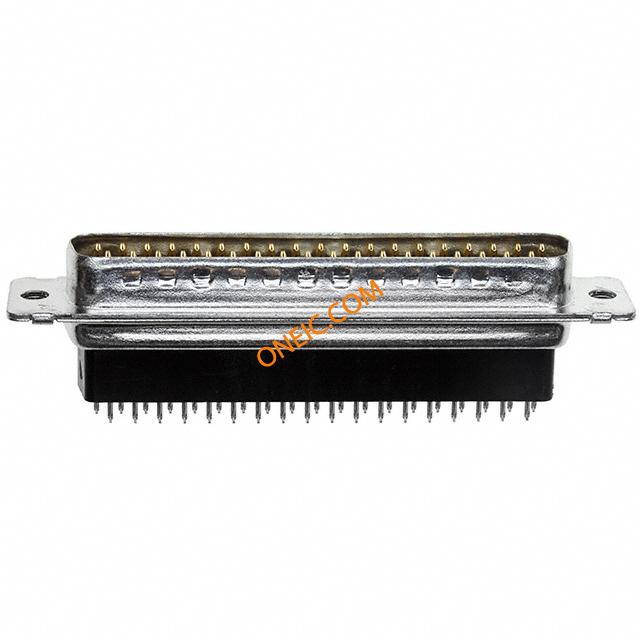

5745413-1

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors 37P PLUG SP/MS STD Standard Board Mount Connectors CONN D-SUB PLUG STR 37POS PCB AU 37 PLUG SP/MS STD 37 PLUG SP/MS STD Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;37Pos;STR;HD-20Series;20AWG;FullMetalShell
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格7产品类别D-Sub Standard Connectors
标准包装数量Rail / Tube工厂包装数量7

合规参数

RoHSRoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A

机械参数

颜色Black密封型No
外形尺寸(长x宽)4包装方式Tube
屏蔽否壳体颜色黑色
引脚样式直角外壳尺寸4
端接方式Solder触头类型Signal
柱间距.109外壳表面处理锡
第二连接器Without触点形状Square
安装类型Vertical外壳镀层Tin
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Housing/Shell (Unthreaded)接地类型Without
安装样式Through Hole排数2
外壳材料（壳体）Steel电路板厚度0.062 – 0.093 [1.57 – 2.36]
连接器样式D-Sub插入件材料Thermoplastic
外形（宽 x 高）High触头材料Brass
壳体材料Polyamide (PA), Nylon, Glass Filled包装数量7
面板安装类型Without尺寸/外形0.64 [.025]
接地凹痕With端接样式Through Hole
连接器颜色None外径.64 mm [ .025 in ]
触点数37位数37
外壳尺寸-插件Full Metal安装孔直径3.05 [.120]
外壳材料及表面处理Steel, Tin Plated端子柱长度3.18 [0.125]
接触镀层厚度Flash触点材料 - 镀层热塑性
外壳与棱镜材料否外壳尺寸，连接器布局4 (DC, C)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts连接器性别Plug
系列HD-20产品特性Grounding Indents
可密封否制造商全称AMP
预装是产品子类型连接器
其他规格是

环境参数

工作温度-55°C ~ 105°C封装热阻1.57 – 2.36 mm [ .062 – .093 in ]

文档与媒体

在线文档
5745413-1?RQPN=5745413-1
在线文档
TE.Connect?C=1&PN=745413-1&M=BYPN&LG=1&I=13

相关型号
