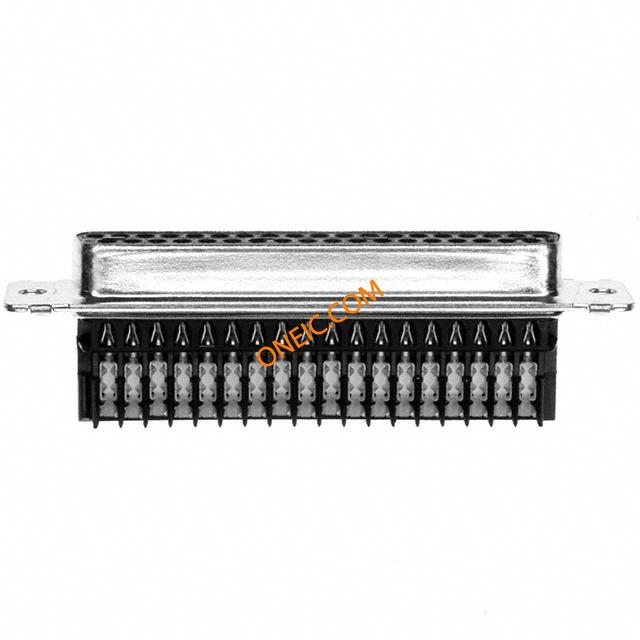

1-745497-7

点击放大查看

1-745497-7

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature RCP 37 POS 2.77mm Crimp ST Cable Mount 37 Terminal 1 Port D-Sub Standard Connectors RCPT ASSY 37P HDE MS Standard Cable Connectors CONN D-SUB RCPT 37POS IDC AMPLIMITE HDE20 d-sub IDC socket,37 way Conn D-Subminiature RCP 37 POS 2.77mm Crimp ST Cable Mount 37 Terminal 1 Port Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;37Pos;STR;HDE-20Series;IDC;26-22AWG;FullMetalShell TE Connectivity AMPLIMITE HDE-20 系列 2.77mm 节距 37 路 IDC D-sub 连接器, 插座, 钢外壳 RCPT ASSY,37P,HDE,MS
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A35212产品类别D-Sub Standard Connectors
标准包装数量Trays工厂包装数量56

合规参数

RoHSRoHS Compliant标准Insert,UL94V-0
抗辐射加固No无铅定义Not relevant for lead free process
认证机构ULRecognized,ULListedandCSACertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250V连接器阻抗刺破式压接 (IDC)
最大额定电流Varies by Wire Gauge最小供电电压250VAC

机械参数

颜色Black深度12.92mm
间距2.77 mm宽度21.72mm
高度21.72 mm长度69.7mm
外形尺寸(长x宽)4包装方式Tray
屏蔽是电缆类型Discrete Wire, Round Jacketed Cable
外壳尺寸4导线线规26-22
方向直端接方式Crimp
触点形式Signal触点尺寸20
触头类型Signal外壳表面处理锡
第二连接器With安装类型Cable Mount
外壳镀层Tin端子尺寸20
行程角度Straight连接器类型Insulation Displacement Crimp (IDC)
接触镀层Tin over Nickel法兰特征Housing/Shell (Unthreaded)
外壳涂层Tin安装样式Cable
排数2封装形式不带
外壳材料（壳体）Steel连接器样式D-Sub
插入件材料Thermoplastic锁定特性Mounting Holes
触头材料Phosphor Bronze壳体材料Thermoplastic, Glass Filled
总长度69.7 mm安装特性无
包装数量56主要材料D-Subminiature
尺寸/外形69.7 x 21.72 x 12.92mm接地凹痕Without
端接样式插座触点数With
绝缘直径1.52 [0.060]位数37
外壳尺寸-插件Full Metal Shell外壳材料及表面处理Steel, Tin Plated
接触镀层厚度Flash线规或范围 - AWG26 – 22
线规或范围 - mm²0.15 - 0.40 [26-22]触点材料 - 镀层热塑塑料
外壳尺寸，连接器布局4 (DC, C)

产品信息

备注All connectors are preloaded. Individual conductor strands should be larger tha类型D-Subminiature
等级Standard连接器性别RCP
系列HDE-20 (IDC)制造商全称HDE-20
预装是产品子类型Connector
端口数1 Port其他规格不带
输出配置Free Hanging (In-Line)应用细节Commercial

环境参数

工作温度-55°C ~ 105°C
