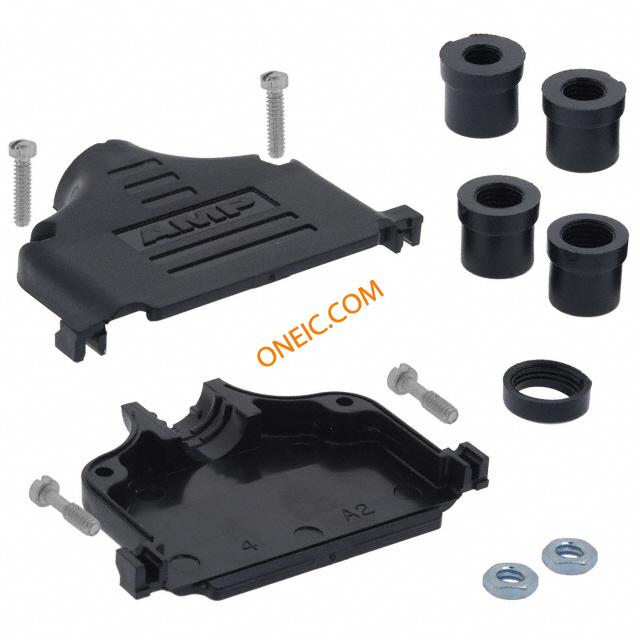

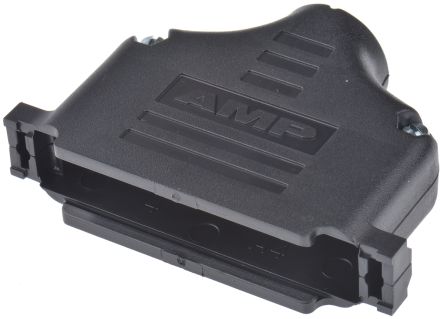

5748678-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Backshell/Cable Clamp Acrylonitrile Butadiene-Styrene Black Shell Size 4 Individual D-Sub Backshells DSUB ACC: C CABLE CLAMP Cable Clamps CONN BACKSHELL DB37 PLASTIC BLCK AMPLIMITE HD-20 backshell kit, size 4 Backshell/Cable Clamp 180° 4 Shell Size Acrylonitrile Butadiene Styrene Individual Backshell/Cable Clamp 180° 4 Shell Size Acrylonitrile Butadiene Styrene Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 6.48 - 11.94 mmShell Size = 4Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub BACKSHELL, D, PLASTIC, 37WAY Hood;D-Sub;37Pos;Str.Exit;AMP;ABS;0.255-0.470In.CblDia;EMI/RFIShield TE Connectivity 37 路 直 ABS D-sub 连接器底壳 2 PC PLST CBL CLMP KIT |
| 分类 |
商业参数
| 交货时间 | 70 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 重量 | 0.01 |
| 材料（通用） | ABS | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 出线方向 | 180° |
| 电缆类型 | Round | 外壳尺寸 | 4 |
| 屏蔽类型 | No | 螺纹尺寸 | 4-40 |
| 安装类型 | Straight | 外壳镀层 | None |
| 电缆直径 | 0.255-0.470In. | 电缆材料 | ABS |
| 螺丝材料 | :Steel | 外壳材料（壳体） | Acrylonitrile Butadiene Styrene (ABS) |
| 本体材料 | :ABS (Acrylonitrile Butadiene Styrene) | 壳体材料 | ABS |
| 包装数量 | Individual Kit | 电缆端接方式 | Two-Piece RFI/EMI Shield |
| 连接器颜色 | :Black | 绝缘直径 | 6.48 â 11.94 [0.255 â 0.470] |
| 位数 | 37 | 外壳尺寸-插件 | :4 |
| 衬套/护套类型 | With | 螺钉材料 - 镀层 | :Zinc |
| 后壳材料及镀层 | ABS | ||
产品信息
| 备注 | Jackscrews must be purchased separately. | 类型 | Backshell/Cable Clamp |
| 系列 | :AMPLIMITE | 产品特性 | Assembly Kit, Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Grommets | 制造商全称 | AMP |
| 产品子类型 | Backshell/Cable Clamp | 附件类型 | Two Piece Backshell |
| 端口数 | 6 | 射频系列/标准 | 5748678 |
| 适用产品/相关产品 | 748678-4 | ||
