点击放大查看

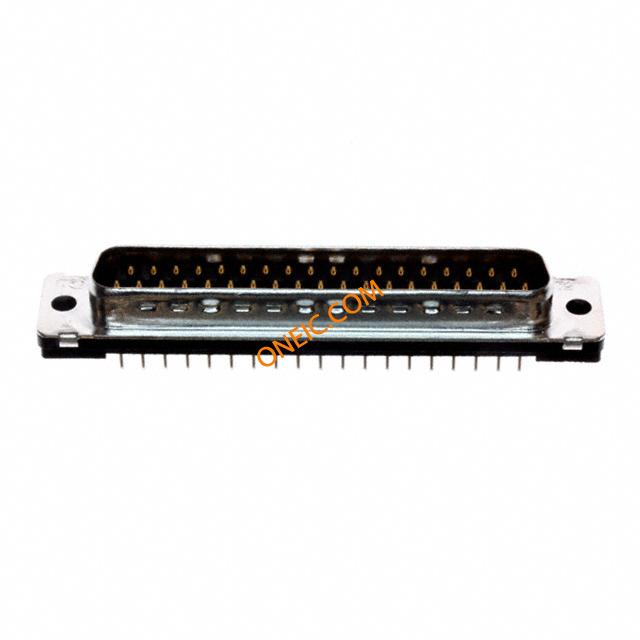

747375-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors PLUG FRNT MTL SHL 37 standard mtng holes Standard Board Mount Connectors CONN D-SUB PLUG STR 37POS PCB AU Conn D-Subminiature PIN 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:Number of Positions = 37PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;37Pos;STR;HD-20Series;20AWG;FrontMetalShell 37 PLUG SP/FMS STD |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 7 | ||
合规参数
| RoHS | No | 抗辐射加固 | No |
| 无铅定义 | Not suitable for lead free processing | 标准编号 | UL E28476 |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | 最小供电电压 | 250VDC/250VAC |
机械参数
| 颜色 | Black | 深度 | 12.55 mm |
| 间距 | 2.77 mm | 高度 | 11.83 mm |
| 密封型 | No | 外形尺寸(长x宽) | 4 |
| 锁定类型 | 不带 | 包装方式 | Tube |
| 屏蔽 | 是 | 壳体颜色 | 黑色 |
| 引脚样式 | 圆形, 圆形 | 外壳尺寸 | 4 |
| 端接方式 | Solder | 触头类型 | Signal |
| 柱间距 | .108 | 外壳表面处理 | 锡 |
| 第二连接器 | Without | 触点形状 | Round |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.062 â 0.093 [1.57 â 2.36] |
| 连接器样式 | D-Sub | 插入件材料 | 黄铜 |
| 外形（宽 x 高） | Standard | 屏蔽材料 | 钢 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 69.39 mm | 安装特性 | 安装孔 |
| 包装数量 | 7 | 面板安装类型 | Without |
| 尺寸/外形 | 0.66 [.026] | 接地凹痕 | With |
| 端接样式 | Solder | 连接器颜色 | None |
| 外径 | .66 mm [ .026 in ] | 触点数 | 37 |
| 位数 | 37 | 外壳尺寸-插件 | Front Metal Shell |
| 安装孔直径 | 3.05 [.120] | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | Flash |
| 外壳与棱镜材料 | 否 | 外壳尺寸，连接器布局 | 4 (DC, C) |
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 产品特性 | Grounding Indents | 可密封 | 否 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | 连接器 | 端口数 | 1 Port |
| 其他规格 | 是 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 1.57 – 2.36 mm [ .062 – .093 in ] |
