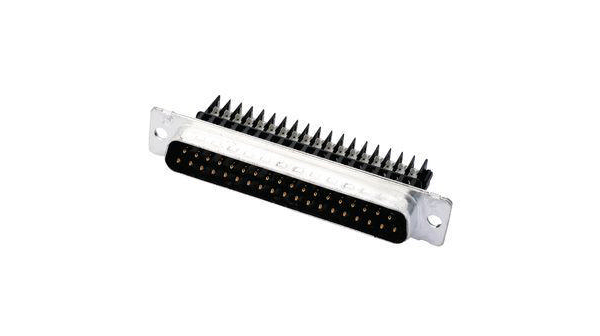

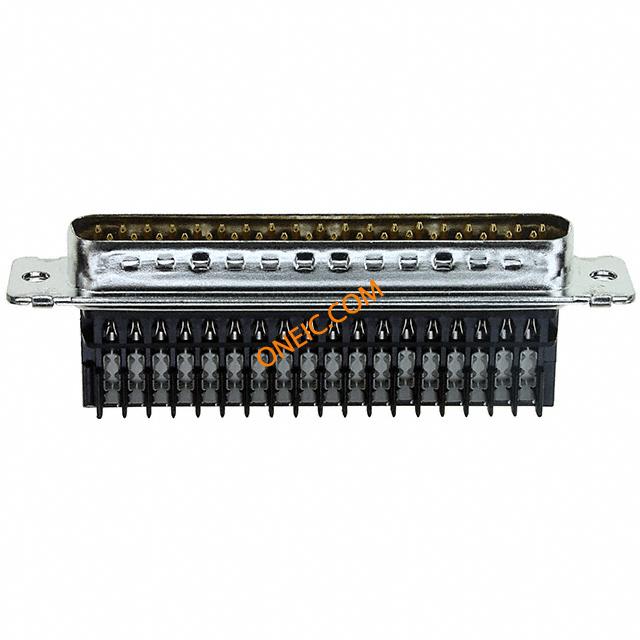

点击放大查看

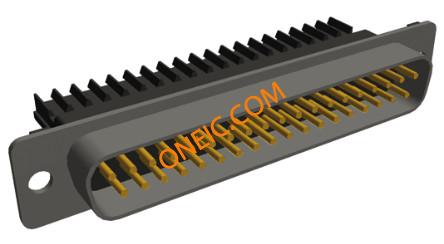

1-745498-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 37 POS 2.76mm Crimp ST Cable Mount 37 Terminal 1 Port D-Sub Standard Connectors C37P IDC 26-22AWG Standard Cable Connectors CONN D-SUB PLUG 37P 22-26AWG AU AMPLIMITE HDE-20 d-sub IDC plug,37 pin Conn D-Subminiature PIN 37 POS 2.76mm Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 37PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CablePlug;37Pos;STR;HDE-20Series;IDC;26-22AWG;FullMetalShell D-Sub male 37P, 1-745498-5, TE Connectivity TE Connectivity AMPLIMITE HDE-20 系列 2.76mm 节距 37 路 IDC D-sub 连接器, 插头, 钢外壳 37 HDE MS PLUG,22-26,LEAD FREE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 56 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 防护类型 | UL 94V-0 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized,ULListedandCSACertified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250V | 极数 | 37 |
| 连接器阻抗 | 刺破式压接 (IDC) | 最大额定电流 | Varies by Wire Gauge |
机械参数
| 颜色 | Black | 深度 | 22.58mm |
| 间距 | 2.76 mm | 宽度 | 12.92mm |
| 高度 | 12.92 mm | 长度 | 69.69mm |
| 外形尺寸(长x宽) | 4 | 锁定类型 | 带有 |
| 包装方式 | Tray | 屏蔽 | 是 |
| 电缆类型 | Discrete Wire, Round Jacketed Cable | 外壳尺寸 | 4 |
| 导线线规 | 26-22 | 方向 | 直 |
| 端接方式 | Crimp | 触点形式 | Signal |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 安装类型 | Cable Mount | 外壳镀层 | Tin |
| 端子尺寸 | 20 | 行程角度 | Straight |
| 连接器类型 | Insulation Displacement Crimp (IDC) | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Tin |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic, Glass Filled |
| 总长度 | 69.69 mm | 安装特性 | 无 |
| 包装数量 | 56 | 主要材料 | D-Subminiature |
| 尺寸/外形 | 69.69 x 12.92 x 22.58mm | 接地凹痕 | With |
| 端接样式 | IDC | 触点数 | 37 |
| 绝缘直径 | 1.52 [0.060] | 位数 | 37 |
| 外壳尺寸-插件 | Full Metal Shell | 第一连接器极性 | Male |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触件表面处理 - 配合 | 哑光 |
| 接触镀层厚度 | Flash | 线规或范围 - AWG | 26 – 22 |
| 线规或范围 - mm² | 0.15 - 0.40 [26-22] | 外壳尺寸，连接器布局 | 4 (DC, C) |
产品信息
| 备注 | All connectors are preloaded. Individual conductor strands should be larger tha | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | PIN |
| 系列 | HDE-20 (IDC) | 产品特性 | Grounding Indents |
| 主要用途 | Grounding Indents | 制造商全称 | HDE-20 |
| 预装 | 是 | 产品子类型 | Connector |
| 端口数 | 1 Port | 输出配置 | Free Hanging (In-Line) |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
