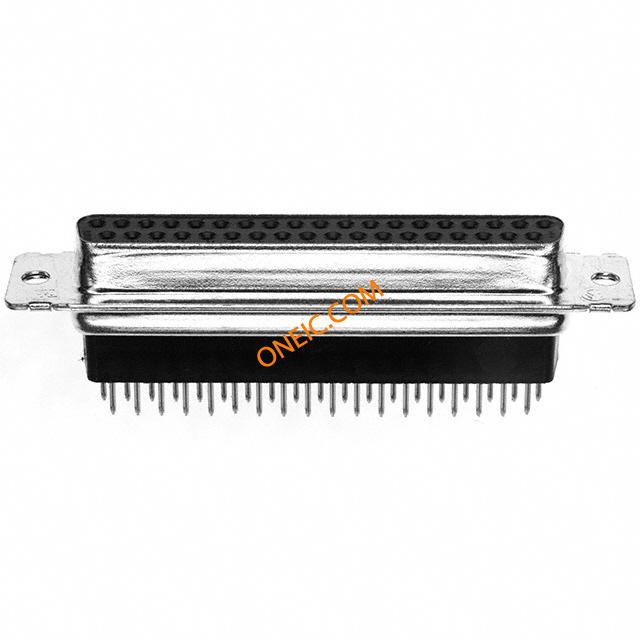

5745189-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors DSUB C37S V/MNT Standard Board Mount Connectors CONN D-SUB RCPT STR 37POS PCB AU 37 RCPT SP/MS STD |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 7 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | ||
机械参数
| 颜色 | Black | 间距 | 2.77 mm |
| 密封型 | No | 外形尺寸(长x宽) | 4 |
| 包装方式 | Tube | 引脚样式 | 直角 |
| 外壳尺寸 | 4 | 端接方式 | Solder |
| 触头类型 | Signal | 柱间距 | .108 |
| 外壳表面处理 | 锡 | 第二连接器 | Without |
| 触点形状 | Square | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.093 â 0.125 [2.36 â 3.18] | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 外形（宽 x 高） | High |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 包装数量 | 40 | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 接地凹痕 | Without |
| 端接样式 | Through Hole | 连接器颜色 | None |
| 外径 | .64 mm [ .025 in ] | 触点数 | 37 |
| 位数 | 37 | 外壳尺寸-插件 | Full Metal |
| 安装孔直径 | 3.05 [.120] | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 4.78 [0.188] | 接触镀层厚度 | Flash |
| 触点材料 - 镀层 | 热塑性 | 外壳与棱镜材料 | 否 |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 备注 | All receptacles are preloaded with size 20 DF posted socket contacts | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD-20 |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 – 3.18 mm [ .093 – .125 in ] |
