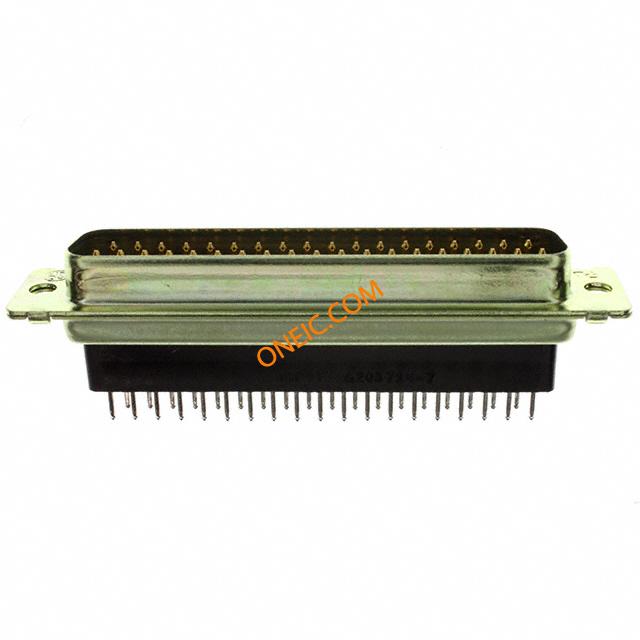

205714-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors 37P PLUG STD 189 Standard Board Mount Connectors CONN D-SUB PLUG 37POS VERT T/H Conn D-Subminiature PIN 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:Number of Positions = 37PlugPCB Mount Angle = VerticalProduct Series = HDP-20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 37 PLUG SP/MS STD |
| 分类 |
商业参数
| 其他名称 | 2057147 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 7 |
合规参数
| RoHS | No | 防护类型 | UL 94V-0 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 标准编号 | UL E28476 |
| RoHS/ELV合规状态 | ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | ||
机械参数
| 尺寸 | .062, .125 | 颜色 | Black |
| 间距 | 2.77 mm | 密封型 | No |
| 外形尺寸(长x宽) | 4 | 锁定类型 | 不带 |
| 包装方式 | Tube | 屏蔽 | 否 |
| 壳体颜色 | 黑色 | 引脚样式 | 正方形 |
| 外壳尺寸 | 4 | 端接方式 | Solder |
| 触头类型 | Signal | 柱间距 | .109 |
| 外壳表面处理 | 锌 | 第二连接器 | Without |
| 触点形状 | Square | 安装类型 | Through Hole |
| 外壳镀层 | Zinc | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.062 [1.57], 0.093 [2.36] | 连接器样式 | D-Sub |
| 插入件材料 | Polyamide, GV | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Polyamide (PA), Nylon, Glass Filled |
| 安装特性 | 安装孔 | 包装数量 | 7 |
| 面板安装类型 | Without | 尺寸/外形 | 0.64 [.025] |
| 接地凹痕 | Without | 端接样式 | Solder |
| 连接器颜色 | None | 外径 | .64 mm [ .025 in ] |
| 触点数 | 37 | 位数 | 37 |
| 外壳尺寸-插件 | Full Metal | 安装孔直径 | 3.05 |
| 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc | 端子柱长度 | 3.20 [0.126] |
| 接触镀层厚度 | Flash | 外壳与棱镜材料 | 否 |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | PIN |
| 系列 | HDP-20 | 产品特性 | Grounding Indents |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
| 其他规格 | 否 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
