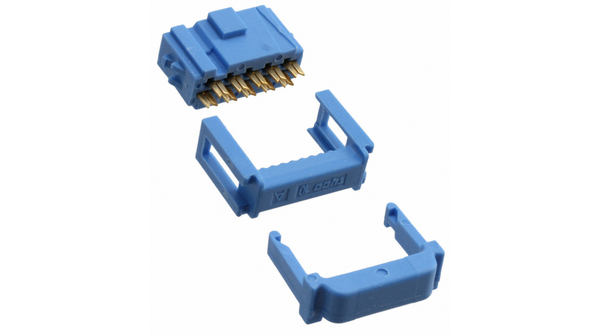

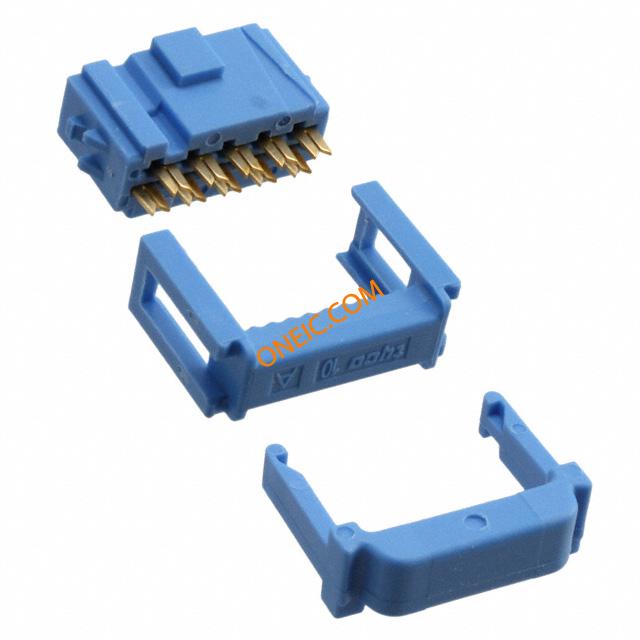

1658527-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount 622-1041LF FEM SOCKET Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 W/STR RELF 10 way IDC bump polarised socket Headers & Wire Housings FSKT IDC S 10 30AU Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization RECEPTACLE, S/RELIEF, IDC, 2.54MM, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH622,10POSITION,MATINGPOLARIZATION Multipole socket DIN 41651 10P, 1658527-4, TE Connectivity TE Connectivity AMP-LATCH 622 系列 2行 10路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-1041LF FEM SOCKT,LEAD FREE |
| 分类 |
商业参数
| 最小起订量 | 50 | 商标名 | AMP-LATCH |
| 单位包装 | 50 | 其他名称 | 16585274 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 认证机构 | -55 TO 125 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - 622 Series | 击穿电压 | :1000V |
| 最大额定电流 | 30µm GOLDA | 绝缘电阻 | :1Gohm |
| 触点额定电流 | :1A | ||
机械参数
| 颜色 | Blue | 深度 | 7.05 mm |
| 间距 | 2.54 mm | 高度 | 12.1 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 出线方向 | 2.54 |
| 导线线规 | 26-28 AWG, Stranded or Solid | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center & Military |
| 第二连接器 | Without | 外壳颜色 | Blue |
| 安装类型 | No | 电缆端类型 | Without |
| 连接器类型 | 622 Series | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Beryllium Copper | 壳体材料 | Thermoplastic |
| 总长度 | 17.2 mm | 安装特性 | Without |
| 主要材料 | InterconnectSystem | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 10 |
| 接触件端接 | :IDC / IDT | 位数 | 10 |
| 绝缘材料 - 材质 | :Thermoplastic, Glass Filled | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | AMP-LATCH | 产品特性 | Feed Through; Polarizing Key, Strain Relief |
| 极性 | :Bump/Clip | 匹配码 | 16585274 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP-LATCH |
| 产品子类型 | Socket Headers | 连接类型 | Ribbon Cable |
| 标准交期 | 99 weeks | ||
