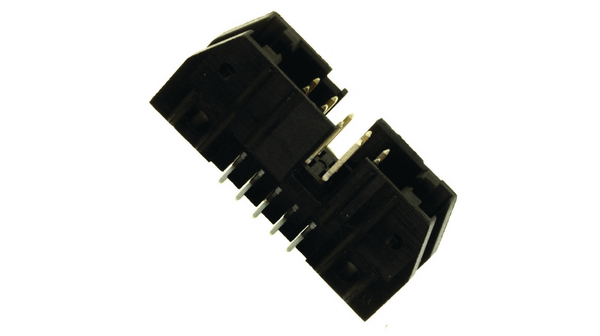

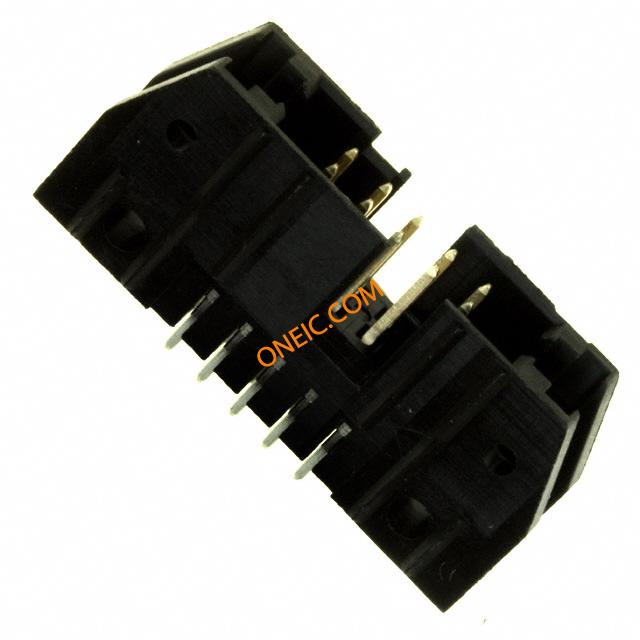

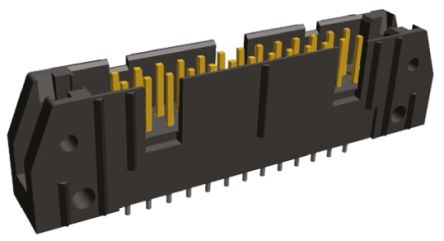

5102154-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 10POS .100 GOLD Headers & Wire Housings 10 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM Header;UniversalEjectionPinHeader;10;0.100x0.100in.;Vertical(PCB) Pin header DIN 41651 10P, 5102154-1, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 10P VERT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 90 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 最大额定电流 | 1/Contact A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 8.53 mm |
| 间距 | 2.54 mm | 高度 | 13.94 mm |
| 重量 | 0.003 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center, Dual Polarizing Bar, Military |
| 第二连接器 | Without | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | Universal Ejection Pin Headers | 接触镀层 | Gold Over Palladium Nickel|Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | 4-Sided | 电路板厚度 | 1.57 [0.062] |
| 外形（宽 x 高） | Standard | 触头材料 | Brass/Phos Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 32 mm |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | With |
| 触点数 | 10 | 接触件端接 | :Through Hole Vertical |
| 位数 | 10 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 2.79 [0.110] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Pin headers in 10- and 14-position sizes have only one slot for snap-in polariz | 类型 | Ejector Header |
| 连接器性别 | HDR | 系列 | AMP-LATCH |
| 产品子类型 | Headers | 其他规格 | Without |
| 加载位置数 | All | ||
环境参数
| 温度额定值 | Standard | 工作温度 | -65C to 105C |
文档与媒体
相关型号
746383-1
te connectivity / amp
Connector Accessories Mounting Bolt Accessories (AMP-LATCH) CONN MOUNTING SCREW Headers & Wire Housings A/L MT SCR Connector Accessories Mounting Bolt Product Highlights:Mounting BoltSearch Keywords:ribbon cable connector system, hardware, Mounting Header Screw A/L MT SCREW
102320-1
te connectivity / amp
Connector Accessories Latch Thermoplastic Black Accessories (AMP-LATCH) LOCK EJECTOR HOOKS FOR HDR LONG Latch Long Black AmpLatch Headers & Wire Housings UNIVERSAL HDR LATCH Connector Accessories Latch Thermoplastic Black Product Highlights:LatchSearch Keywords:ribbon cable connector system, hardware, EJECTOR LATCH, UNIVERSAL HEADER HeaderLatches,formatingreceptacleswithstrainrelief TE Connectivity 闩锁, 使用于AMPLATCH Novo 系列 UNIVERSAL HEADER LATCH
487223-1
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 010 HOUSING FFC RCPT 100CL DR FFC & FPC Connectors REC 2X05P 100X100 HSG Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 10Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 10 Position Dual Row 2.54 mm Pitch Cable to Board Receptacle Housing
1658527-4
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount 622-1041LF FEM SOCKET Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 W/STR RELF 10 way IDC bump polarised socket Headers & Wire Housings FSKT IDC S 10 30AU Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization RECEPTACLE, S/RELIEF, IDC, 2.54MM, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH622,10POSITION,MATINGPOLARIZATION Multipole socket DIN 41651 10P, 1658527-4, TE Connectivity TE Connectivity AMP-LATCH 622 系列 2行 10路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-1041LF FEM SOCKT,LEAD FREE
102312-1
te connectivity / amp
Connector Accessories Latch Thermoplastic Black Accessories (AMP-LATCH) LOCK EJECTOR HOOKS FOR HDR SHORT Latch accessory black Amp-Latch Headers & Wire Housings UNIVERSAL HDR LATCH Connector Accessories Latch Thermoplastic Black Product Highlights:LatchSearch Keywords:ribbon cable connector system, hardware, HeaderLatches,formatingreceptacleswithoutstrainrelief Ejector/latchP, 102312-1, TE Connectivity TE Connectivity 应力释放支架, 使用于 AMPLATCH Connector 带状电缆 UNIVERSAL HEADER LATCH
1658620-1
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 10POS 15 GOLD Connector,Receptacle,Novo,10Position Headers & Wire Housings MLTRY PLRZD RECPT 10 NOVO Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 10ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 10POS, 2.54MM Connector,Receptacle;Novo;10Position,Gold(15),.100X.100 TE Connectivity AMP-LATCH Novo 系列 2行 10路 2.54mm节距 母 IDC 连接器 , 电缆安装 10 NOVO MIL 15DP, LEAD FREE
1658622-1
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 10POS W/POL GOLD Receptacle 10 way socket Amp-Latch Headers & Wire Housings 10P IDC RECEPTACLE DUAL ROW Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONN, RECEPT. 10, RIBBON CRIMP AMP-LATCHNOVOReceptacle,10Pos.,Center&MilitaryPolarization,.100X.100 TE Connectivity AMP-LATCH Novo 系列 2行 10路 2.54mm节距 母 IDC 连接器 , 电缆安装 10 NOVO MIL/CTR 30DP,LEAD FREE
1825851-1
te connectivity / amp
Connector Accessories Ejector Headr Locking Latch Polybutylene Terephthalate Black Headers & Wire Housings EJECTOR LATCH AMPMODU Mod IV, V CONN LATCH LOCKING FOR .100 HDRS Connector Accessories Ejector Headr Locking Latch Polybutylene Terephthalate Black Product Highlights:Locking LatchSearch Keywords:board to board, AMPMODU, pcb connectors, AMPLATCH UNIVERSAL HEADER LOCKING LATCH TE Connectivity PCB 针座锁定闩锁 AMPMODU MOD IV LATCH for AMPLA
499991-2
te connectivity / amp
Connector Accessories Snap-In Polarizer Thermoplastic Black Bag Accessories (AMP-LATCH) CONN POLARIZER SNAP-IN Connector Accessories Snap-In Polarizer Thermoplastic Black Bag Product Highlights:Snap-In PolarizerSearch Keywords:input/output, paddleboard, paddle board SNAP-IN POLARIZER, AMP-LATCH HEADER POLARIZER,SNAP-IN,AMP-LATCH,BLACK TE Connectivity AMP-LATCH系列 军用偏振器, 使用于薄型管座 POLARIZER AMP-LATCH 50/BAG
499252-5
te connectivity / amp

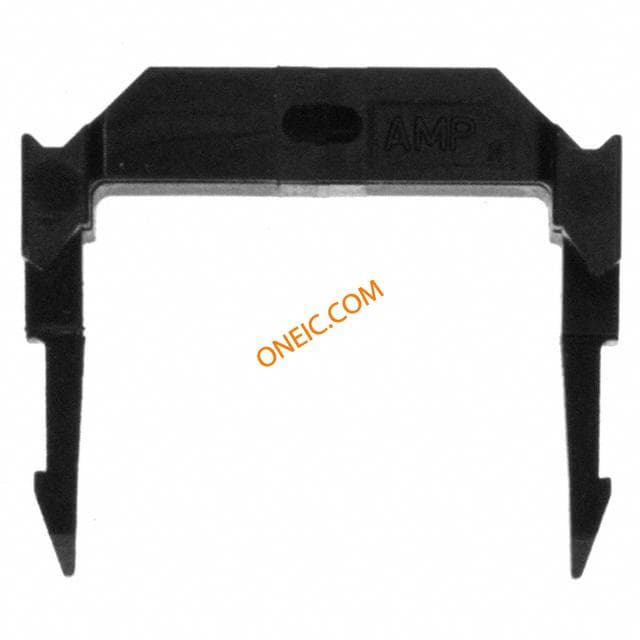

Connector Accessories 10 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Accessories (AMP-LATCH) STRAIN RELIEF 10POS SOCKET CONN 10 way IDC strain relief Headers & Wire Housings STRAIN RELIEF 10POS Connector Accessories 10 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Product Highlights:Strain ReliefNumber of Positions = 10Search Keywords:input/output, paddleboard, paddle board STRAIN RELIEF, 10WAY StrainRelief,CableConnector;10;Thermoplastic;UL94V-0;Black Strain relief 10P, 499252-5, TE Connectivity TE Connectivity 10路 应力释放支架, 使用于 AMP-LATCH NOVO 系列 010 STRAIN RELIEF A-L RCPT
N3793-6002RB
3m interconnect solutions

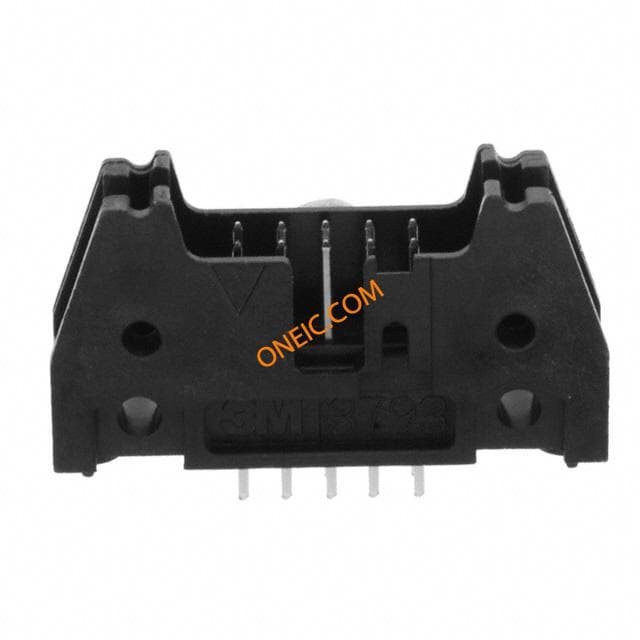

Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRGT 10 CONTACT 3M 3000 Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings BOARDMT HDR 10 POS NO LATCH/EJECTOR ConnEjectorHeaderHDR10POS2.54mmSolderSTThru-Hole Pin header DIN 41651 10P, N3793-6002RB, 3M 3M 3000 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
