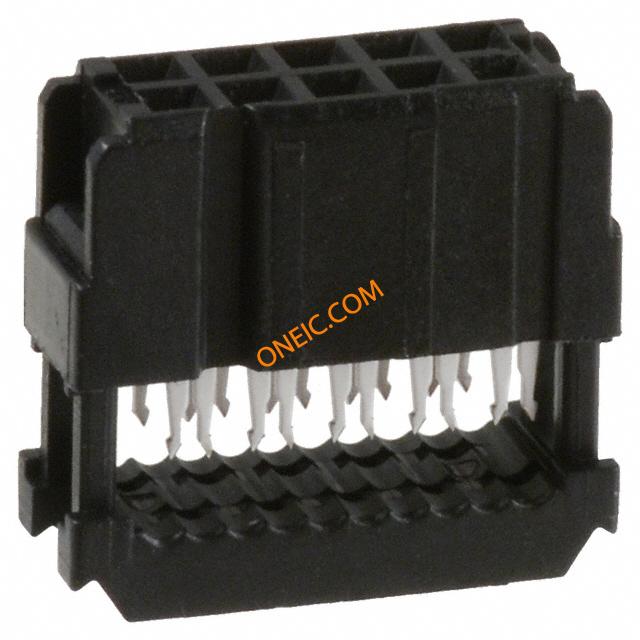

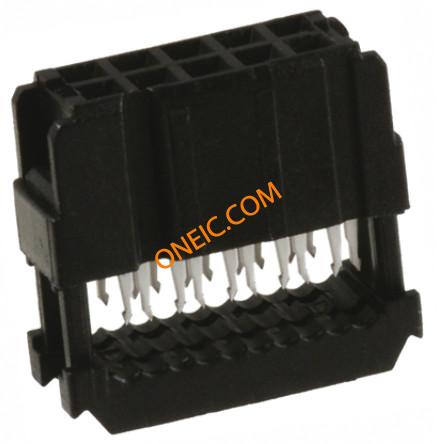

1658623-1

点击放大查看

1658623-1

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 10POS GOLD Connector,Receptacle,Novo,10,Gold(30) Headers & Wire Housings .1CL IDC REC 2X05P MIL 30AU Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 10ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RCPT, 2ROW, 10POS, 2.54MM Connector,Receptacle;Novo;10;Gold(30);Tin-Lead;0.100in.x0.100in. TE Connectivity AMP-LATCH Novo 系列 2行 10路 2.54mm节距 母 IDC 连接器 , 电缆安装 10 NOVO MIL 30DP, LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量1080

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Novo Series接触电阻15 mohm
最大额定电流1A最小供电电压250VAC

机械参数

颜色Black深度6.09 mm
间距2.54 mm高度6.09 mm
长度0.68in重量0.002
包装方式Bulk导线类型Ribbon Cable
出线方向Without导线线规26-28 AWG
排间距0.100" (2.54mm)端接方式IDT
触头类型Female Socket极化Military
第二连接器Without外壳颜色Black
安装类型No电缆端类型Without
连接器类型NOVO接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel
安装样式Cable排数2
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度17.27 mm安装特性Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向With
触点数10接触件端接:IDC / IDT
位数10中心触点材料2.54 x 2.54 [.100 x .100]
接触镀层厚度30µin (0.76µm)

产品信息

备注Receptacle can be used in applications requiring non-polarization, as well as m类型IDC Connector
连接器性别RCP系列AMP-LATCH, NOVO
产品特性Feed Through产品子类型Receptacles / Sockets - Housings
连接类型Ribbon Cable带调制解调器控制Yes
应用细节Wire-to-Board
