点击放大查看

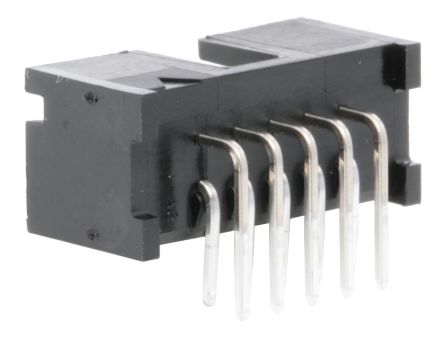

5103310-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 10POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 10P R/A HEADER BLK Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM AMPMODUAMP-LATCHPinHeader,.100CL,10Pos.,LowProfile,RightAngle Pin header DIN 41651 10P, 1-1634689-0, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 10P RA BLACK |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 125 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 最大额定电流 | 1A | 绝缘电阻 | 5000 MOhms |
机械参数
| 颜色 | Black | 深度 | 12.31 mm |
| 间距 | 2.54 mm | 高度 | 9.14 mm |
| 重量 | 0.002 | 包装方式 | Tube |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 基体材料 | :Thermoplastic |
| 外壳颜色 | Black | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 20.32 mm | 主要材料 | InterconnectSystem |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 10 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 10 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 3.43 mm | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP LATCH | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
相关型号
102387-1
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 POL DUAL 2.54mm,housing,10W,Mod IV,DR,snap in Headers & Wire Housings CTR POLARIZD HSG 5x2 Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, FEMALE Housing,Connector;ModIV;Dual;10;250VAC;3A;750VNo Plug; wire-board; female; PIN:10; w/o terminals; 2.54mm; for cable Crimp housing Pitch2.54 mm Poles 10 Double row / straight / with polarization AMPMODU MOD IV, 102387-1, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 10 路 直 母 电缆安装 PCB 壳体 10 MODIV HSG COMP DR .100 POL
487223-1
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 010 HOUSING FFC RCPT 100CL DR FFC & FPC Connectors REC 2X05P 100X100 HSG Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 10Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 10 Position Dual Row 2.54 mm Pitch Cable to Board Receptacle Housing
1658527-4
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount 622-1041LF FEM SOCKET Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 W/STR RELF 10 way IDC bump polarised socket Headers & Wire Housings FSKT IDC S 10 30AU Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization RECEPTACLE, S/RELIEF, IDC, 2.54MM, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH622,10POSITION,MATINGPOLARIZATION Multipole socket DIN 41651 10P, 1658527-4, TE Connectivity TE Connectivity AMP-LATCH 622 系列 2行 10路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-1041LF FEM SOCKT,LEAD FREE
1658620-1
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 10POS 15 GOLD Connector,Receptacle,Novo,10Position Headers & Wire Housings MLTRY PLRZD RECPT 10 NOVO Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 10ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 10POS, 2.54MM Connector,Receptacle;Novo;10Position,Gold(15),.100X.100 TE Connectivity AMP-LATCH Novo 系列 2行 10路 2.54mm节距 母 IDC 连接器 , 电缆安装 10 NOVO MIL 15DP, LEAD FREE
1-104483-1
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT 10POS DUAL .100 CRIMP Headers & Wire Housings 10P RECPT DUAL HSNG Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10 SHORT PT RCPT HSG DR .100CL
1658622-1
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 10POS W/POL GOLD Receptacle 10 way socket Amp-Latch Headers & Wire Housings 10P IDC RECEPTACLE DUAL ROW Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONN, RECEPT. 10, RIBBON CRIMP AMP-LATCHNOVOReceptacle,10Pos.,Center&MilitaryPolarization,.100X.100 TE Connectivity AMP-LATCH Novo 系列 2行 10路 2.54mm节距 母 IDC 连接器 , 电缆安装 10 NOVO MIL/CTR 30DP,LEAD FREE
1658623-1
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 10POS GOLD Connector,Receptacle,Novo,10,Gold(30) Headers & Wire Housings .1CL IDC REC 2X05P MIL 30AU Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 10ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RCPT, 2ROW, 10POS, 2.54MM Connector,Receptacle;Novo;10;Gold(30);Tin-Lead;0.100in.x0.100in. TE Connectivity AMP-LATCH Novo 系列 2行 10路 2.54mm节距 母 IDC 连接器 , 电缆安装 10 NOVO MIL 30DP, LEAD FREE
1658624-1
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS POLAR GOLD Headers & Wire Housings 10P RCPT NOVO DUAL Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:With ContactsConnector Type = NOVOHousing Gender = Receptacle10 PositionsReceptacleSearch Keywords:input/output, paddleboard, paddle board 10 NOVO DUAL 30DP, LEAD FREE
1658526-4
TE Connectivity / AMP
ヘッダ & ワイヤハウジング IDC RECPT 10 POS Ribbon Cable Connectors (AMP-LATCH) 609-1030LF FEM SOCKT,LEAD FREE Headers & Wire Housings IDC RECPT 10 POS Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,10POSITION,MATINGPOLARIZATION TE Connectivity AMP-LATCH 609 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装
1658527-3
TE Connectivity / AMP
ヘッダ & ワイヤハウジング 10 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 622 SERIES Ribbon cable conn.rcpt.10way,2.54mm,blue Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 10WAY RIBBONCONN.RCPT.10WAY TE Connectivity AMP-LATCH 622 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 622-1030LF FEM SOCKT,LEAD FREE
1658621-1
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 10POS W/POL 15 GOLD 10way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 10P NOVO Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR, RECEPTACLE, IDC, 2.54MM, 10P 10NOVOMIL/CTR15DP,LEADFREE Plug; IDC; female; PIN:10; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 10P, 1658621-1, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 10路 2.54mm节距 直角 电缆安装 母 IDC 连接器 10 NOVO MIL/CTR 15DP,LEAD FREE
1658526-5
TE Connectivity / AMP
Headers & Wire Housings IDC RCPT 10 POS W/ STRAIN RELIEF Ribbon Cable Connectors (AMP-LATCH) 609-1041LF FEM SOCKT,LEAD FREE 10 Way HE10 Skt w/ Strain Relief Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,10POSITION,MATINGPOLARIZATION
1658526-3
TE Connectivity / AMP
Headers & Wire Housings 609-1000MLF FEM SCKT Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS VERT GOLD Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 10ReceptacleMating Polarization Method = MilitaryWith Mating Polarization 609-1000MLF FEM SCKT,LEAD FREE

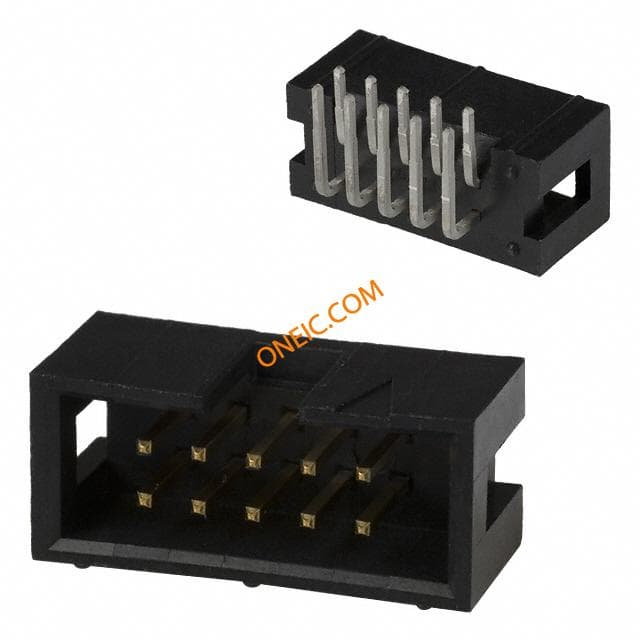

1761605-3
