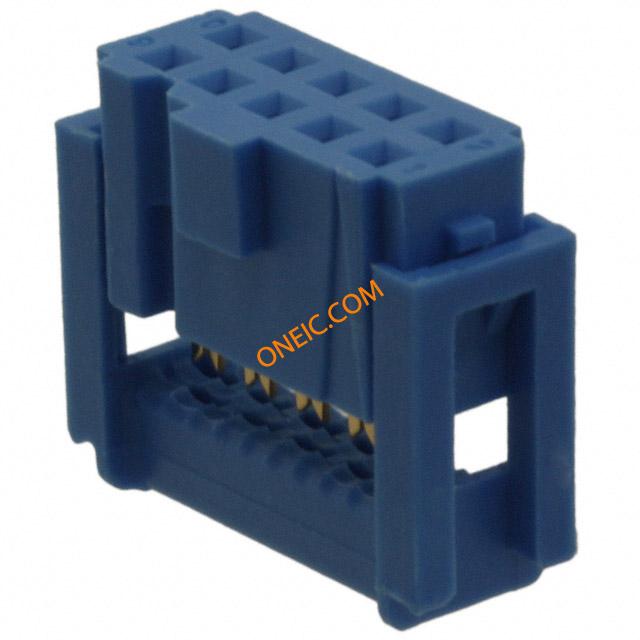

1658527-3

点击放大查看

1658527-3

制造商
TE Connectivity Ltd.
描述ヘッダ & ワイヤハウジング 10 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 622 SERIES Ribbon cable conn.rcpt.10way,2.54mm,blue Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 10WAY RIBBONCONN.RCPT.10WAY TE Connectivity AMP-LATCH 622 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 622-1030LF FEM SOCKT,LEAD FREE
分类
分立半导体元件分立半导体触发二极管
对参数有疑问？问 AI 助手

商业参数

其他名称16585273标准包装数量50

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - 622 Series介电强度:1000V/m
最大额定电流:1A绝缘电阻:1Gohm

机械参数

颜色Blue深度7.05 mm
间距0.100" (2.54mm)高度12.1 mm
重量0.0152包装方式Bulk
导线类型Ribbon Cable出线方向Without
导线线规26-28 AWG, Stranded or Solid排间距0.100" (2.54mm)
端接方式IDT触头类型Female Socket
柱间距2.54 x 2.54 [.100 x .100]极化Center & Military
第二连接器Without外壳颜色Blue
安装类型No电缆端类型Without
连接器类型622 Series接触镀层Gold (30)
安装样式Cable排数2
触头材料Beryllium Copper壳体材料Thermoplastic
总长度17.2 mm安装特性Without
电缆端接方式IDC连接器颜色:Blue
配接方向With触点数10
接触件端接:IDC / IDT位数10
接触镀层厚度30µin (0.76µm)第一连接器安装类型:Cable

产品信息

类型IDC Connector连接器性别Receptacle
产品特性Feed Through, Polarizing KeyCAD图纸3D CAD Model
连接类型Ribbon Cable

环境参数

工作温度:105°C

相关型号

2-1761603-3

2-1761603-3

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings PIN HEADER 10 POS VERT LOW PROFILE Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 10POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 10WAY HEADER,PIN,IDC,AMP-LATCH,10POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:10; straight; THT; gold plated; 2.54mm Pin header DIN 41651 10P, 2-1761603-3, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 10P VERT BLUE

¥9.0600
详情

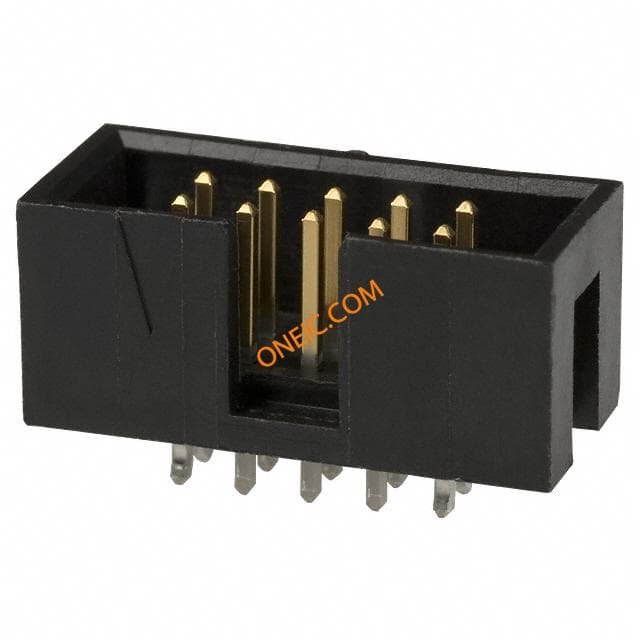

5104338-1

5104338-1

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 10POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM HEADER,PIN,AMP-LATCH,10POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 10P VERT HT

¥6.2294
详情

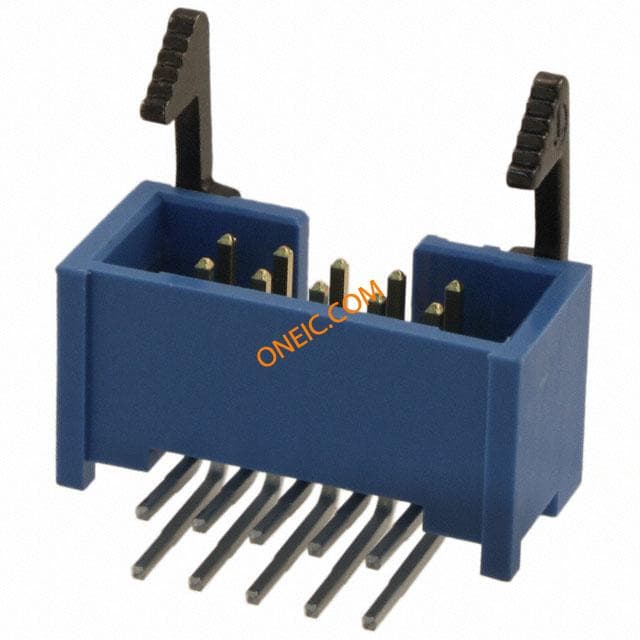

2-1761609-3

2-1761609-3

te connectivity / amp

Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 10POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings PIN HEADER 10 POS R/A LOW PROFILE Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Ejectorheader,10way,2.54mm,90°,blue TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 10P RA SHT LAT

¥18.1200
详情
1761607-3

1761607-3

te connectivity / amp

Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 10POS Headers & Wire Housings 100X100 HDR 2X005P R/A LOW PROFILE Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,10POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 10P RA LG LAT

¥13.9680
详情
5103309-1

5103309-1

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 10POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 10P low profile Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM Header;Pin;Vertical;CopperAlloy;Thermoplastic;10;0.100x0.100in.;Gold Pin header DIN 41651 10P, 5103309-1, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 10P VERT BLACK

¥3.7080
详情

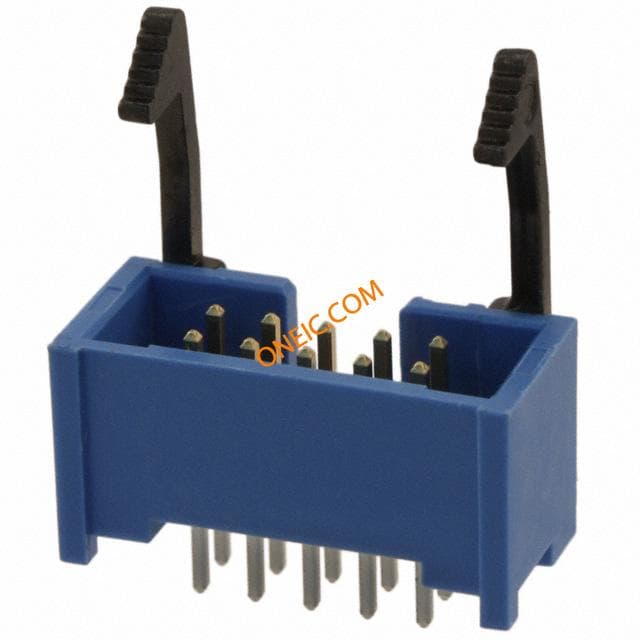

2-1761606-3

2-1761606-3

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 10POS VERT GOLD TE Connectivity 2-1761606 Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings PIN HEADER 10 POS VERT LOW PROFILE Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 10WAY HEADER,PIN,IDC,AMP-LATCH,10POS,LOWPROFILE,PCB,VERTICAL,BLUE Pin Header DIN41651 10P, 2-1761606-3, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 10P VERT LG LAT BLUE

¥9.0600
详情

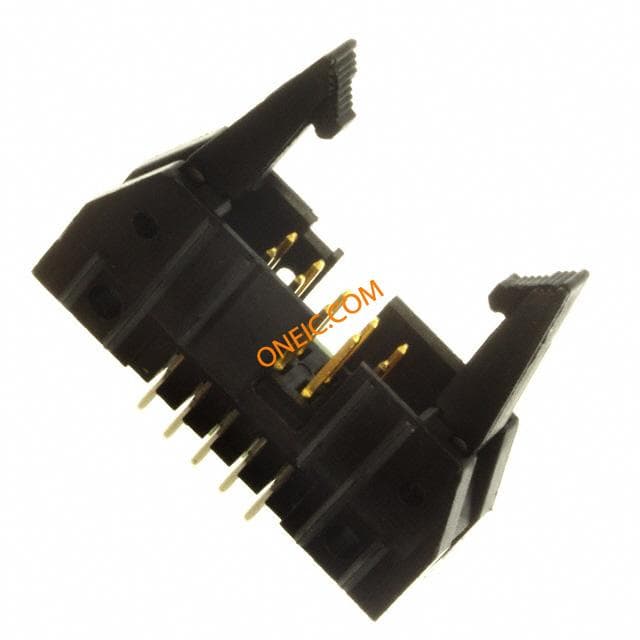

5102321-1

5102321-1

te connectivity / amp

Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 10POS .100 GOLD Headers & Wire Housings UNIV HDR 10P VERT .100 LRG LATCH 30AU Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,10POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 10P VERT LG LAT

¥9.0600
详情

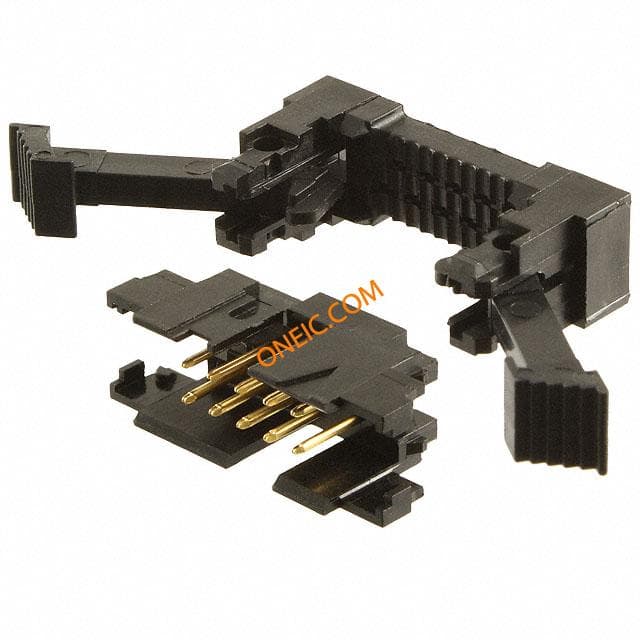

1-111504-4

1-111504-4

te connectivity / amp

Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 10POS UNIV I/O NO EARS TE Connectivity 1-111504 Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Headers & Wire Housings 10 UNIV I/O NO EARS LEAD FREE Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 10PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, LATCHED, 10WAY RIBBONCONN.FEMALE,10WAY TE Connectivity AMP-LATCH 系列 2行 10路 2.54mm节距 电缆安装 公 印刷电路板管座 10 UNIV I/O, NO EARS,LEAD FREE

¥27.1800
详情

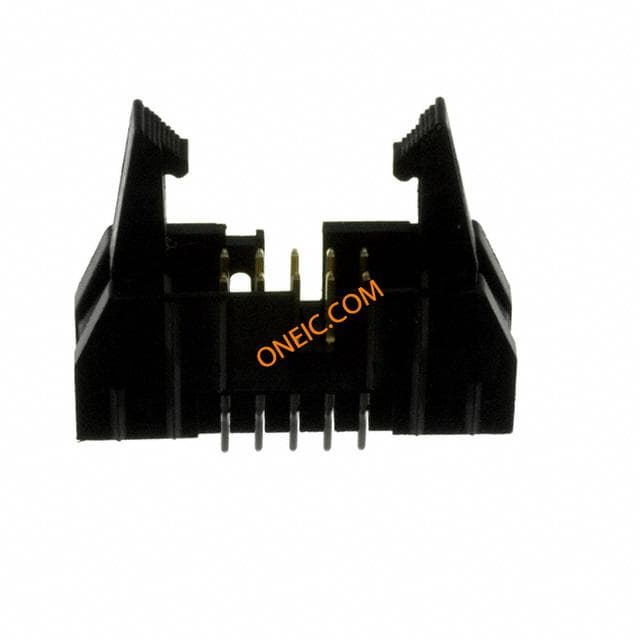

5499923-1

5499923-1

te connectivity / amp

Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 10POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X005P VRT EJE Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P VERT LG LAT

¥8.7840
详情
5102322-1

5102322-1

te connectivity / amp

Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 10POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X005P R/A EJE Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE TO BOARD CONNECTOR, HEADER, 10POS, 2ROW A/L UNIV HDR 10P RA LG LAT

¥9.0600
详情

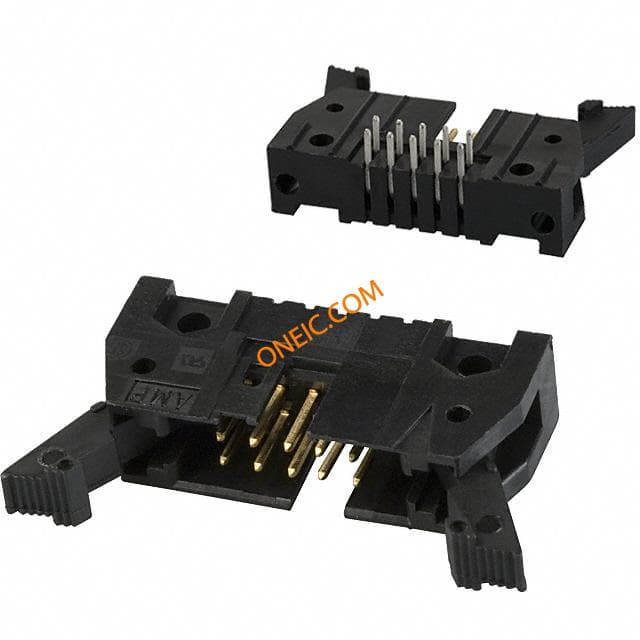

5499345-1

5499345-1

te connectivity / amp

Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 10POS .100 GOLD Headers & Wire Housings 10P HEADER GOLD 15u double row Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P RA SHT LAT

¥9.8640
详情
2-5499141-1

2-5499141-1

te connectivity / amp

Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 10POS R/A POLAR GOLD Headers & Wire Housings UNIV HDR 10P RA BLUE LARGE LATCH Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 10WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P RA LG LAT BLU

¥18.1200
详情
5102154-1

5102154-1

te connectivity / amp

Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 10POS .100 GOLD Headers & Wire Housings 10 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM Header;UniversalEjectionPinHeader;10;0.100x0.100in.;Vertical(PCB) Pin header DIN 41651 10P, 5102154-1, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 10P VERT

¥3.5446
详情
5102160-1

5102160-1

te connectivity / amp

Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 10POS .100 GOLD Headers & Wire Housings 10 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,10POS,2.54X2.54,PCB,RIGHTANGLE Pin header DIN 41651 10P, 5102160-1, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P RA

¥5.2654
详情
1761609-3

1761609-3

te connectivity / amp

Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 10POS Headers & Wire Housings 100X100 HDR 2X005P R/A LOW PROFILE Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,10POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 10P RA SHT LAT

¥14.2560
详情
2-5499206-1

2-5499206-1

te connectivity / amp

Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 10POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings UNIV HDR 10P VT BLU LARGE LATCH Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 10WAY 10waymalestraightsidelatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P VERT LG LAT B

¥9.0600
详情
5102159-1

5102159-1

te connectivity / amp

Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 10POS .100 GOLD Headers & Wire Housings 10P R/A HEADER Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,10POS,2.54X2.54,PCB,RIGHTANGLE TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 10P RA

¥3.3768
详情

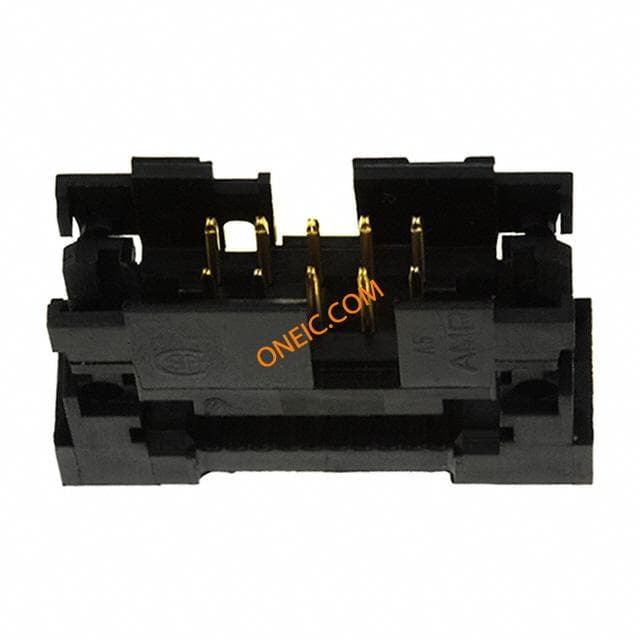

1-111446-4

1-111446-4

te connectivity / amp

Conn IDC Connector PL 10 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 10POS 30AU NO LATCH Ribbon cable conn.male,10 way,2.54mm,blk Headers & Wire Housings 100X100 PLG 2X05P Conn IDC Connector PL 10 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 10PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 10WAY CONNECTOR,PLUG,INIVERSALI/O,AMP-LATCH,10POSITION,TERMINATETORIBBONCABL AMP-Latch Series 10 Position Gold (30) Universal I/O Without Mounting Ears TE Connectivity AMP-LATCH 系列 2行 10路 2.54mm节距 直角 公 IDC 连接器 , 电缆安装 10 UNIV I/O, NO EARS,LEAD FREE

¥18.1200
详情

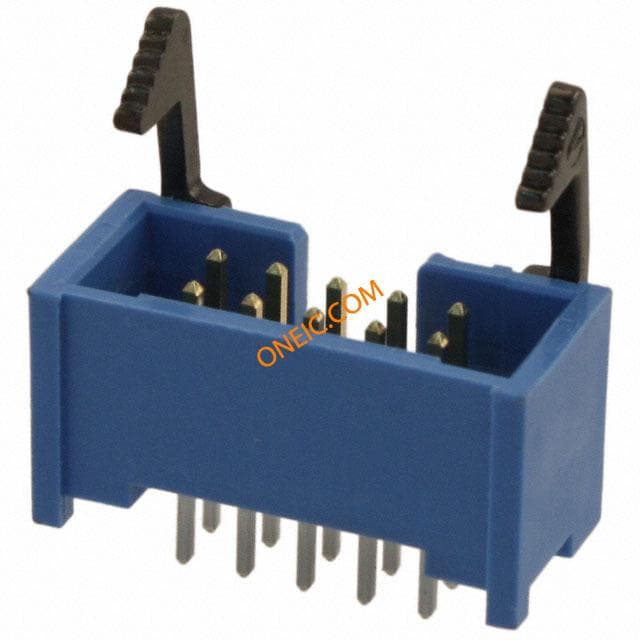

2-1761608-3
