点击放大查看

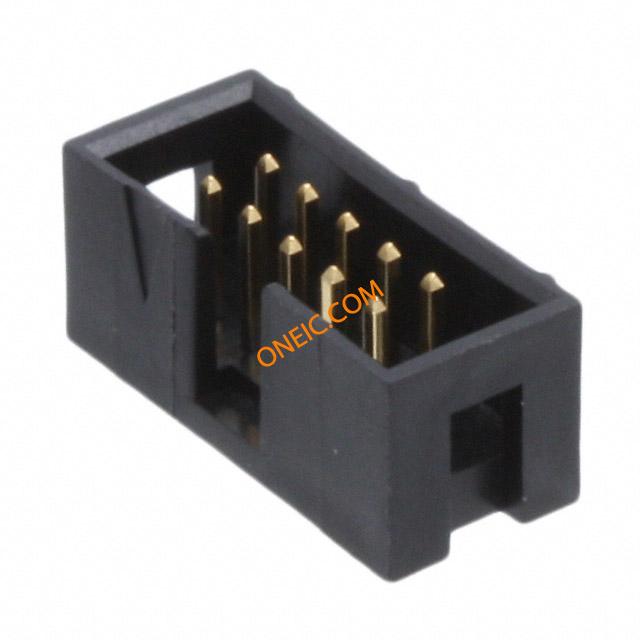

1761681-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN PIN HEADER VERTICAL 10POS TE Connectivity 1761681 Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings PIN HEADER 10 POS VERT LOW PROFILE Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, IDC, 2.54MM 10WAY IDCHDRS7BOXNOEJ,IDCLOWPROHDR10PVERTHTBLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 10P VERT HT BLACK |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 其他名称 | 17616813 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 250 V ac |
| 最大额定电流 | 1A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 9.22 mm |
| 间距 | 2.54 mm | 高度 | 8.89 mm |
| 重量 | 0.004 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2.54mm | 极化 | Center |
| 第二连接器 | Without | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | Pin Header | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | 4-Sided | 外形（宽 x 高） | Low |
| 触头材料 | Phosphor Bronze | 壳体材料 | PCT |
| 总长度 | 20.32 mm | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | With | 触点数 | 10 |
| 接触件端接 | :Through Hole Vertical | 位数 | 10 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 2.90 [0.114] | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 1761681 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 其他规格 | Without |
| 加载位置数 | All | ||
环境参数
| 温度额定值 | Standard | 工作温度 | -65C to 105C |
