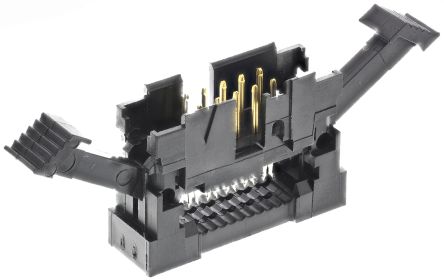

1-111504-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 10POS UNIV I/O NO EARS TE Connectivity 1-111504 Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Headers & Wire Housings 10 UNIV I/O NO EARS LEAD FREE Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 10PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, LATCHED, 10WAY RIBBONCONN.FEMALE,10WAY TE Connectivity AMP-LATCH 系列 2行 10路 2.54mm节距 电缆安装 公 印刷电路板管座 10 UNIV I/O, NO EARS,LEAD FREE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Universal I/O Series | 接触电阻 | :15mohm |
| 击穿电压 | :1000V | 最大额定电流 | 1A |
| 触点额定电流 | :1A | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.004 | 包装方式 | Tray |
| 导线类型 | Ribbon Cable | 出线方向 | With |
| 导线线规 | 26-28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Male Pin |
| 引脚间距 | :1.27mm | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | No |
| 电缆端类型 | Without | 连接器类型 | Universal I/O |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch Lock/Eject Hooks |
| 排数 | 2 | 封装形式 | :Black Thermoplastic |
| 锁定特性 | Latch | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 安装特性 | Without |
| 电缆端接方式 | IDC | 配接方向 | Without |
| 触点数 | 10 | 接触件端接 | :IDC / IDT |
| 位数 | 10 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | :28AWG | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | No slot on end with position No. 1 indicator; No slot for snap-in polarizer on | 类型 | Ejector Header |
| 连接器性别 | PL | 系列 | 1-111504 |
| 产品特性 | Feed Through | 产品子类型 | Headers |
| 连接类型 | Ribbon Cable | ||
环境参数
| 插拔次数 | :150 | 工作温度 | :105°C |
文档与媒体
相关型号
1-215882-0
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Loose Piece Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 POLAR GOLD Ribbon cable conn.rcpt.10way,2.54mm,grey Headers & Wire Housings 10 WAY GREY MK II RECP Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector Type = Mark IINumber of Positions = 10ReceptacleMating Polarization Method = CenterWith Mating Polarization SOCKET, IDC, CLASS 1, 10WAY Ribboncableconn.rcpt.10way,2.54mm,grey Plug; IDC; female; PIN:10; for ribbon cable; 1.27mm Multipole socket DIN 41651 10P, 1-215882-0, TE Connectivity TE Connectivity AMP-LATCH 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 10 WAY GREY MK II RECP
1658527-4
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount 622-1041LF FEM SOCKET Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 W/STR RELF 10 way IDC bump polarised socket Headers & Wire Housings FSKT IDC S 10 30AU Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization RECEPTACLE, S/RELIEF, IDC, 2.54MM, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH622,10POSITION,MATINGPOLARIZATION Multipole socket DIN 41651 10P, 1658527-4, TE Connectivity TE Connectivity AMP-LATCH 622 系列 2行 10路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-1041LF FEM SOCKT,LEAD FREE
1658624-1
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS POLAR GOLD Headers & Wire Housings 10P RCPT NOVO DUAL Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:With ContactsConnector Type = NOVOHousing Gender = Receptacle10 PositionsReceptacleSearch Keywords:input/output, paddleboard, paddle board 10 NOVO DUAL 30DP, LEAD FREE
191-2801-110
Amphenol Spectra-Strip
Flat Cables 28 AWG Ribbon .050 Zip 10 Cond 100" FLAT CABLE 10PTS AWG28 Planar/ribbon cable,1.27mm pitch,10 way Flat Cables 28 AWG Ribbon .050 Zip 10 Cond 100' Flat Cable 10Conductors 28AWG 30.48m Tinned Copper Gray/Red Edge 300V 1A RIBBON CABLE, 10WAY, PER M, 28AWG, 300V RIBBON CABLE, 10WAY, 30.5M, 28AWG, 300V cable, planar(flat), gray pvc insul w/1 red edge, 10 conductor, 28 awg stranded Cable: ribbon; 1.27mm; stranded; Cu; 10x28AWG; PVC; grey; 30,5m Ribbon Cable 1.27 mm 10xAWG 28, 191-2801-110, Amphenol Amphenol Spectra-Strip 系列 无屏蔽 带状电缆
1658526-4
TE Connectivity / AMP
ヘッダ & ワイヤハウジング IDC RECPT 10 POS Ribbon Cable Connectors (AMP-LATCH) 609-1030LF FEM SOCKT,LEAD FREE Headers & Wire Housings IDC RECPT 10 POS Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,10POSITION,MATINGPOLARIZATION TE Connectivity AMP-LATCH 609 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装
1658527-3
TE Connectivity / AMP
ヘッダ & ワイヤハウジング 10 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 622 SERIES Ribbon cable conn.rcpt.10way,2.54mm,blue Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 10WAY RIBBONCONN.RCPT.10WAY TE Connectivity AMP-LATCH 622 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 622-1030LF FEM SOCKT,LEAD FREE
1658621-1
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 10POS W/POL 15 GOLD 10way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 10P NOVO Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR, RECEPTACLE, IDC, 2.54MM, 10P 10NOVOMIL/CTR15DP,LEADFREE Plug; IDC; female; PIN:10; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 10P, 1658621-1, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 10路 2.54mm节距 直角 电缆安装 母 IDC 连接器 10 NOVO MIL/CTR 15DP,LEAD FREE
1658526-5
TE Connectivity / AMP
Headers & Wire Housings IDC RCPT 10 POS W/ STRAIN RELIEF Ribbon Cable Connectors (AMP-LATCH) 609-1041LF FEM SOCKT,LEAD FREE 10 Way HE10 Skt w/ Strain Relief Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,10POSITION,MATINGPOLARIZATION
1-215911-0
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Loose Piece Ribbon cable conn.rcpt.10way,2.54mm,grey Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector Type = Mark IINumber of Positions = 10ReceptacleMating Polarization Method = CenterWith Mating Polarization CONNECTOR, RECEPTACLE, IDC, 2.54MM, 10P Ribboncableconn.rcpt.10way,2.54mm,grey null Multipole socket DIN 41651 10P, 1-215911-0, TE Connectivity TE Connectivity AMP-LATCH 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 10 WAY GREY MK II RECP
1658526-3
TE Connectivity / AMP
Headers & Wire Housings 609-1000MLF FEM SCKT Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS VERT GOLD Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 10ReceptacleMating Polarization Method = MilitaryWith Mating Polarization 609-1000MLF FEM SCKT,LEAD FREE
1-215915-0
TE CONNECTIVITY / AMP
CONNECTOR, RECEPTACLE, 10WAY, 2.54 null TE Connectivity AMP-LATCH 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 AMP-LATCH 15.2 HIGH TAPE
