点击放大查看

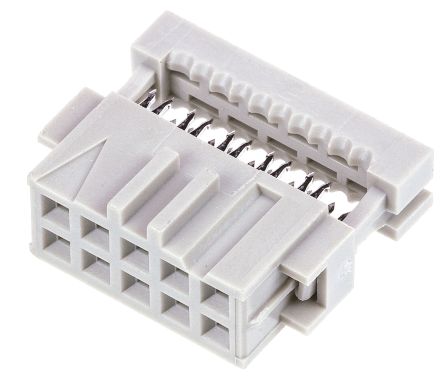

1-215882-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Loose Piece Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 POLAR GOLD Ribbon cable conn.rcpt.10way,2.54mm,grey Headers & Wire Housings 10 WAY GREY MK II RECP Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector Type = Mark IINumber of Positions = 10ReceptacleMating Polarization Method = CenterWith Mating Polarization SOCKET, IDC, CLASS 1, 10WAY Ribboncableconn.rcpt.10way,2.54mm,grey Plug; IDC; female; PIN:10; for ribbon cable; 1.27mm Multipole socket DIN 41651 10P, 1-215882-0, TE Connectivity TE Connectivity AMP-LATCH 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 10 WAY GREY MK II RECP |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1120 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 开关功能 | Unlatched |
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 出线方向 | Without |
| 导线线规 | 28 AWG, Stranded; 26-30 AWG, Solid | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Receptacle |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center |
| 第二连接器 | Without | 外壳颜色 | Gray |
| 安装类型 | No | 电缆端类型 | Without |
| 连接器类型 | Mark II | 接触镀层 | Gold Over Nickel |
| 安装样式 | Wire | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic Polyester |
| 安装特性 | Without | 包装数量 | Loose Piece |
| 主要材料 | Receptacle | 电缆端接方式 | IDC |
| 连接器 - 电缆 | plug | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 10 | 接触件端接 | :IDC / IDT |
| 位数 | 10 | 接触镀层厚度 | 31.5µin (0.80µm) |
| 第一连接器安装类型 | :Cable | 第一连接器安装特征 | 2x5 |
产品信息
| SPG | 140 | 类型 | IDC Connector |
| 连接器性别 | RCP | 系列 | AMP-LATCH |
| 产品特性 | Feed Through, Polarizing Key | 制造商全称 | AMP-LATCH |
| 产品子类型 | Receptacles / Sockets - Housings | 连接类型 | Ribbon Cable |
| 单元数量 | 1 | 带调制解调器控制 | Yes |
文档与媒体
相关型号

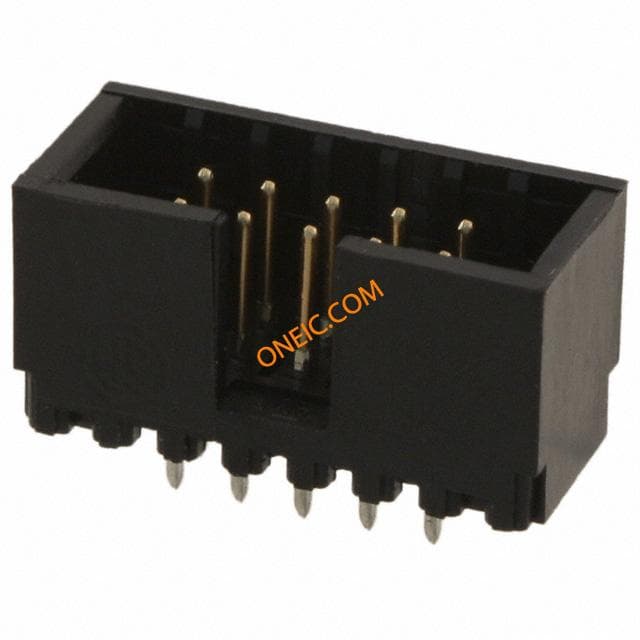

281271-1
