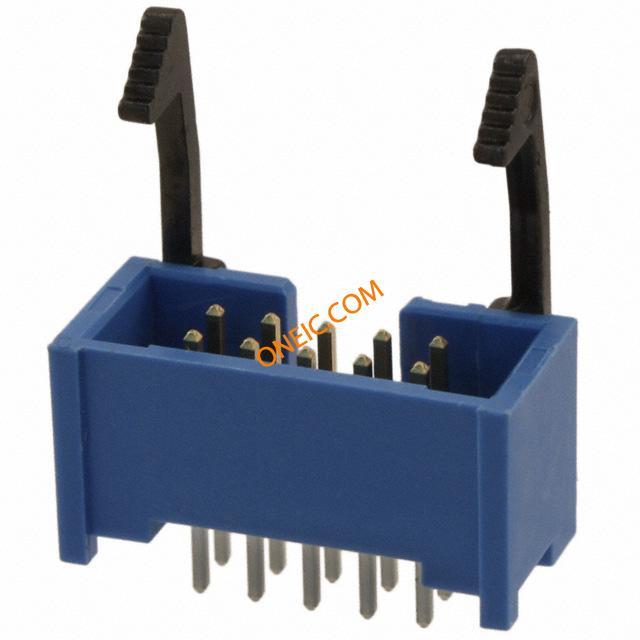

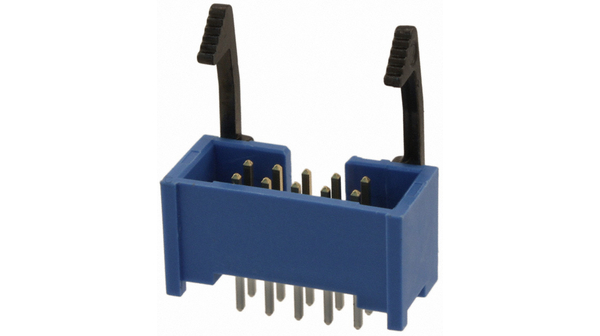

2-1761606-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 10POS VERT GOLD TE Connectivity 2-1761606 Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings PIN HEADER 10 POS VERT LOW PROFILE Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 10WAY HEADER,PIN,IDC,AMP-LATCH,10POS,LOWPROFILE,PCB,VERTICAL,BLUE Pin Header DIN41651 10P, 2-1761606-3, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 10P VERT LG LAT BLUE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 26 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 250 V ac |
| 开关功能 | Ejection | 击穿电压 | :500V |
| 最大额定电流 | 1A | 绝缘电阻 | :1Gohm |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Blue | 深度 | :10.3mm |
| 间距 | 2.54 mm | 宽度 | :20.3mm |
| 高度 | 22.56 mm | 长度 | :9.2mm |
| 重量 | 0.002 | 材料（通用） | :Glass reinforced thermo plastic |
| 包装方式 | Tube | 遮蔽类型 | Yes |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center, Military |
| 第二连接器 | Without | 触点形状 | Square |
| 外壳颜色 | Blue | 安装类型 | Vertical |
| 连接器类型 | Pin Header | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Latch Lock/Eject Hooks | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | 4-Sided |
| 外形（宽 x 高） | Low | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 3.81 [0.150] |
| 主要材料 | InterconnectSystem | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | With | 触点数 | 10 |
| 接触件端接 | :Through Hole | 位数 | 10 |
| 安装孔直径 | :0.9mm | 接触长度 - 配合 | 0.237" (6.02mm) |
| 端子柱长度 | 2.60 [0.102] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 2-1761606 | 极性 | :Bump |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers | 其他规格 | With |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | :200 | 温度额定值 | Standard |
| 工作温度 | -65C to 105C | ||
文档与媒体
相关型号
1658527-4
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount 622-1041LF FEM SOCKET Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 W/STR RELF 10 way IDC bump polarised socket Headers & Wire Housings FSKT IDC S 10 30AU Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization RECEPTACLE, S/RELIEF, IDC, 2.54MM, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH622,10POSITION,MATINGPOLARIZATION Multipole socket DIN 41651 10P, 1658527-4, TE Connectivity TE Connectivity AMP-LATCH 622 系列 2行 10路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-1041LF FEM SOCKT,LEAD FREE

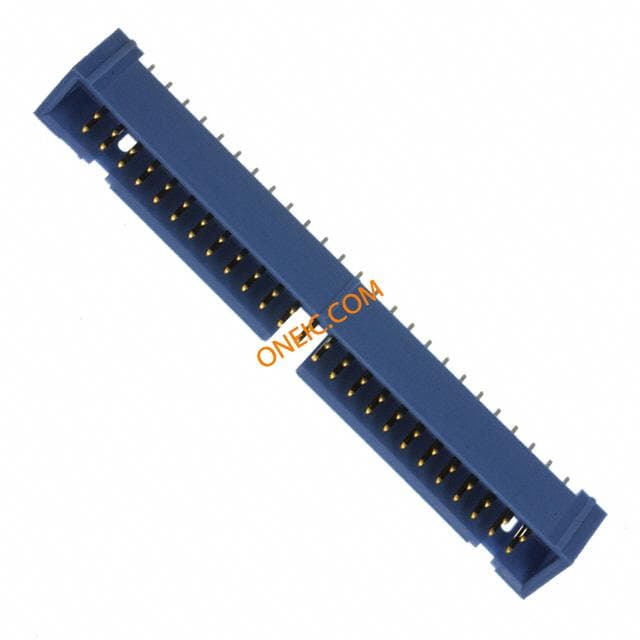

3-1761603-5
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 50POS 30AU Headers & Wire Housings IDC CONNECTOR Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 50WAY HEADER,PIN,IDC,AMP-LATCH,50POS,LOWPROFILE,PCB,VERTICAL,BLUE IDC LOW PRO HDR 50P VERT BLUE
2-5499141-1
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 10POS R/A POLAR GOLD Headers & Wire Housings UNIV HDR 10P RA BLUE LARGE LATCH Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 10WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P RA LG LAT BLU

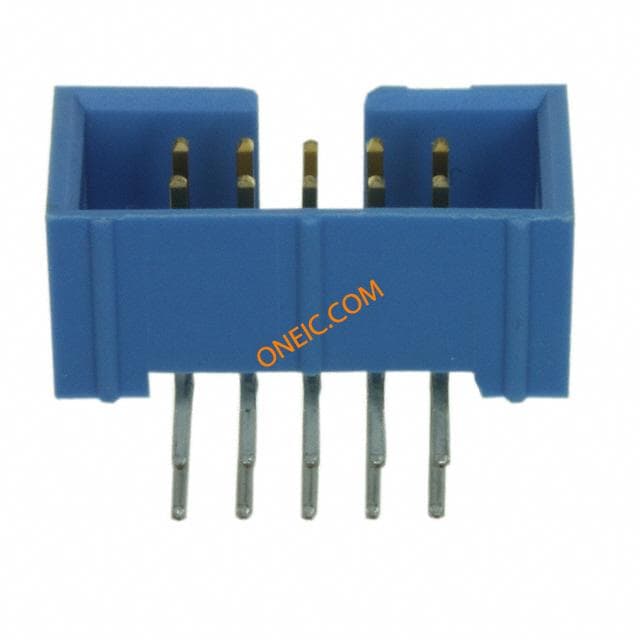

2-1761605-3
