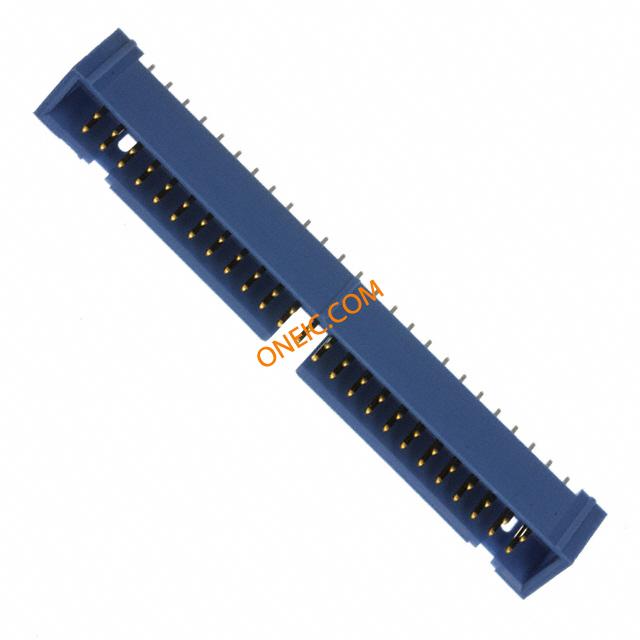

3-1761603-5

点击放大查看

3-1761603-5

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 50POS 30AU Headers & Wire Housings IDC CONNECTOR Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 50WAY HEADER,PIN,IDC,AMP-LATCH,50POS,LOWPROFILE,PCB,VERTICAL,BLUE IDC LOW PRO HDR 50P VERT BLUE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Series击穿电压:500V
最大额定电流1 A绝缘电阻:1Gohm

机械参数

颜色Blue深度9.22 mm
间距2.54 mm高度9.22 mm
重量0.006材料（通用）:Glass Reinforced Thermoplastic
包装方式Bulk遮蔽类型Yes
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin引脚间距:2.54mm
柱间距2.54 x 2.54 [.100 x .100]极化Center, Military
第二连接器Without触点形状Square
外壳颜色Blue安装类型Vertical
连接器类型Pin Header接触镀层Gold Over Nickel
安装样式Through Hole排数2
封装形式4-Sided外形（宽 x 高）Low
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度3.81 [0.150]主要材料InterconnectSystem
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)配接方向With
触点数50接触件端接:Solder
位数50安装孔直径:0.9mm
接触长度 - 配合0.240" (6.10mm)端子柱长度2.60 [0.102]
接触镀层厚度30µin (0.76µm)第一连接器安装类型:PC Board

产品信息

类型Shrouded Header连接器性别HDR
系列AMP-LATCH极性:Bump
制造商全称AMP-LATCH产品子类型Headers
其他规格Without加载位置数All
