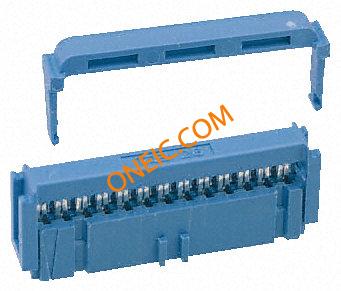

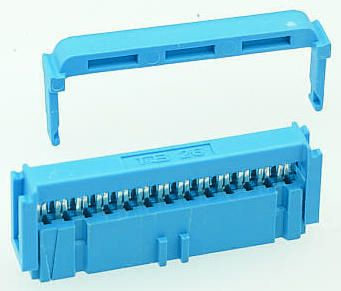

点击放大查看

1-1658527-4

制造商	TE Connectivity Ltd.
描述	Headers & Wire Housings RECPT 50P 30 AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 50POS .100 622 SERIES Ribbon cable conn.rcpt.50way,2.54mm,blue Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = 622 SeriesNumber of Positions = 50ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 50WAY Ribboncableconn.rcpt.50way,2.54mm,blue TE Connectivity AMP-LATCH 622 系列 2行 50路 2.54mm节距直角母 IDC 连接器 , 电缆安装 622-5030LF FEM SOCKT,LEAD FREE
分类	分立半导体元件分立半导体触发二极管

对参数有疑问？问 AI 助手

商业参数

其他名称	116585274	标准包装规格	50
标准包装数量	50

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant
材料阻燃等级	UL 94V-0

电气参数

量程（°/s）	:TE - 622 Series	介电强度	:1000V/m
最大额定电流	:1A	绝缘电阻	:1Gohm

机械参数

颜色	Blue	间距	0.100" (2.54mm)
重量	0.006	包装方式	Bulk
导线类型	Ribbon Cable	出线方向	Without
导线线规	26-28 AWG, Stranded or Solid	排间距	0.100" (2.54mm)
端接方式	IDT	触头类型	Female Socket
柱间距	2.54 x 2.54 [.100 x .100]	极化	Center & Military
第二连接器	Without	外壳颜色	Blue
安装类型	No	电缆端类型	Without
连接器类型	622 Series	接触镀层	Gold (30)
排数	2	触头材料	Beryllium Copper
壳体材料	Thermoplastic	安装特性	Without
主要材料	IndustrialRectangular	电缆端接方式	IDC
连接器颜色	:Blue	配接方向	With
触点数	50	接触件端接	:IDC / IDT
位数	50	接触镀层厚度	30µin (0.76µm)
第一连接器安装类型	:Cable

产品信息

类型	CableConnector	连接器性别	Receptacle
产品特性	Feed Through, Polarizing Key	制造商全称	622Series
连接类型	Ribbon Cable

环境参数

工作温度

:105°C
