1-5499374-0

点击放大查看

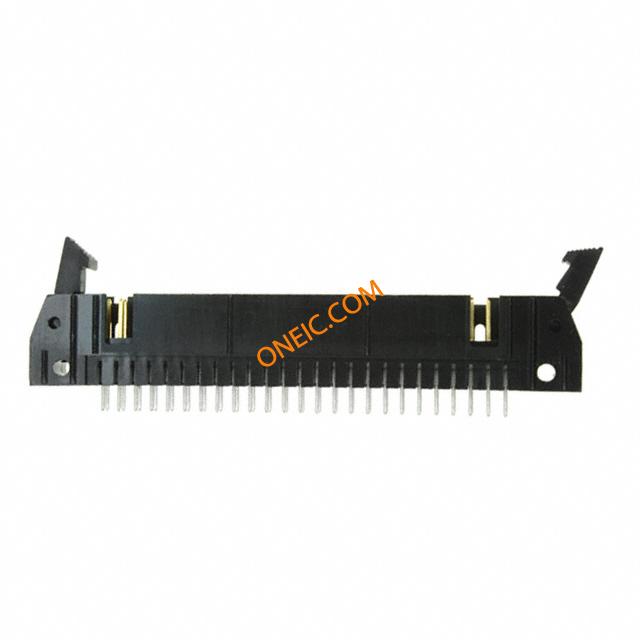

1-5499374-0

制造商
TE Connectivity Ltd.
描述Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 50POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 50P VERT SHT LAT Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile50 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 50P VERT SHT LAT
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量216

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

开关功能Ejection供电电压250
输入电阻5000连接器阻抗锁闩, 锁闩
最大额定电流1/Contact A最小供电电压250VAC

机械参数

颜色Black深度8.53 mm
间距2.54 mm高度23.09 mm
长度82.8 mm [ 3.259 in ]底座类型不带
包装方式Tray遮蔽类型Yes
壳体颜色黑色端部尺寸（如SMD/SMT、14mm等）3.81 mm [ .15 in ]
引脚样式直角排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
柱间距2.54 x 2.54 [.100 x .100]极化Center, Dual Polarizing Bar, Military
第二连接器With触点形状Square
外壳颜色Black安装类型Vertical
连接器类型Universal Ejection Pin Headers接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel
紧固类型Latch Lock/Eject Hooks安装样式Through Hole
排数2封装形式4-Sided
外壳材料（壳体）4 面驱动力带有
电路板厚度3.18 [0.125]插入件材料黄铜，磷青铜
锁定特性Latch外形（宽 x 高）Standard
触头材料Brass/Phos Bronze壳体材料Thermoplastic
总长度82.8 mm安装特性安装耳
包装数量24面板安装类型通孔
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)外径.64 mm [ .025 in ]
配接方向With触点数50
位数50触头长度-柱信号（数据）
安装孔直径带有接触件表面处理 - 配合锡
接触长度 - 配合0.240" (6.10mm)端子柱长度3.94 [0.155]
接触镀层厚度30µin (0.76µm)

产品信息

类型Ejector Header连接器性别HDR
系列AMP-LATCH极性带有
产品子类型Headers其他规格With
加载位置数All

环境参数

温度额定值Standard工作温度-65C to 105C
封装热阻3.18 mm [ .125 in ]

文档与媒体

PDF 文档
1599153.pdf
在线文档
1-5499374-0
