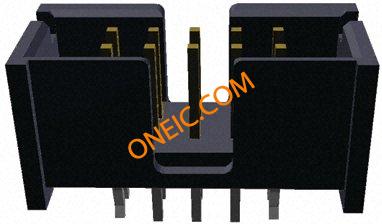

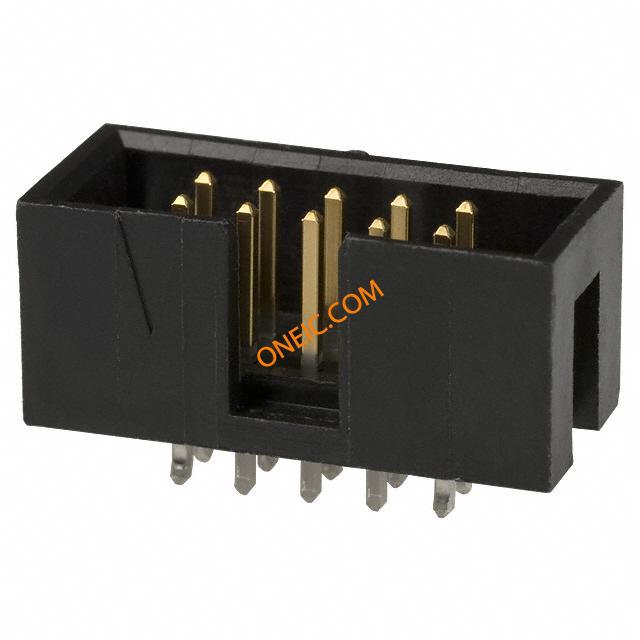

5104338-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 10POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM HEADER,PIN,AMP-LATCH,10POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 10P VERT HT |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85411000 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 250 V ac |
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Gray | 深度 | 9.14 mm |
| 间距 | 2.54 mm | 高度 | 9.86 mm |
| 重量 | 0.002 | 包装方式 | Tube |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polyphthalamide | 总长度 | 20.32 mm |
| 主要材料 | InterconnectSystem | 触点数 | 10 |
| 接触件端接 | :Through Hole Vertical | 位数 | 10 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP LATCH | 制造商全称 | AMP-LATCH |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -65C to 105C | ||
