1-1634689-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN R/A 10POS GOLD TE Connectivity 1-1634689 Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings HDR R/A 10P Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, THT, RIGHT ANGLE, 2.54MM, 10WAY Right-angledIDCboxedheader,10-way Socket; IDC; male; PIN:10; angled 90°; THT; gold plated; 2.54mm |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 320 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :UL | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 最大额定电流 | 1 A |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 颜色 | Black | 深度 | 12.49 mm |
| 间距 | 2.54 mm | 高度 | 9.22 mm |
| 重量 | 0.0171 | 包装方式 | Tray |
| 方向 | angled 90° | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54mm | 外壳颜色 | Black |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 20.32 mm |
| 包装数量 | 1 | 主要材料 | PCB |
| 连接器 - 电缆 | socket | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Black |
| 触点数 | 10 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 10 | 绝缘材料 - 材质 | :Polyester |
| 接触长度 - 配合 | 0.228" (5.80mm) | 端子柱长度 | 3.02 mm |
| 接触镀层厚度 | 10µin (0.25µm) | 触点材料 - 镀层 | gold plated |
| 第一连接器安装特征 | 2x5 | ||
产品信息
| SPG | 1 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | 1-1634689 |
| 产品特性 | Polarized | 制造商全称 | 1634689Series |
| 产品子类型 | Headers | 单元数量 | 1 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 40 C to + 105 C | ||
文档与媒体
相关型号
1658527-4
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount 622-1041LF FEM SOCKET Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 W/STR RELF 10 way IDC bump polarised socket Headers & Wire Housings FSKT IDC S 10 30AU Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization RECEPTACLE, S/RELIEF, IDC, 2.54MM, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH622,10POSITION,MATINGPOLARIZATION Multipole socket DIN 41651 10P, 1658527-4, TE Connectivity TE Connectivity AMP-LATCH 622 系列 2行 10路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-1041LF FEM SOCKT,LEAD FREE
5499786-1
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 10POS .100 GOLD TE Connectivity 5499786 Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 10 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 10WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,10POS,2.54X2.54,PCB,RIGHTANGLE TE Connectivity AMP-LATCH 系列 10路 2.54mm节距 (2排) 直角 PCB 针座 , 焊接端接, 1A, 通孔 A/L UNIV HDR 10P RA LG LAT

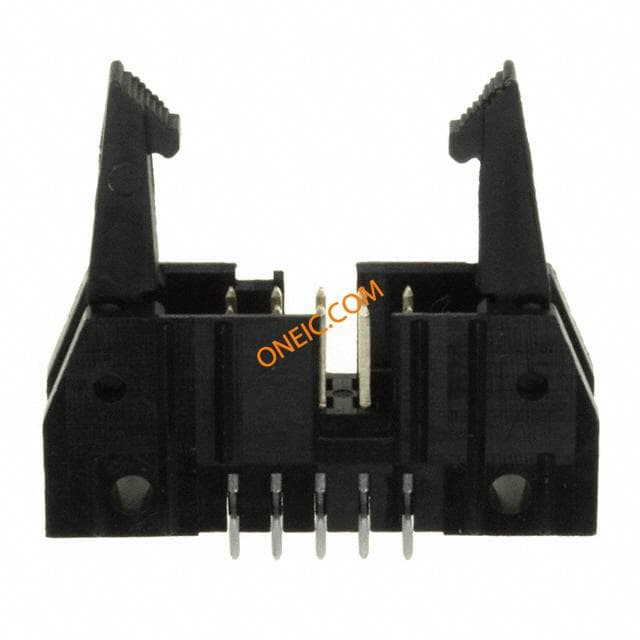

5499922-1
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 10POS .100 15AU TE Connectivity 5499922 Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 10 POS HDR 15AU W/LONG LATCHES Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 10WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,10POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P VERT LG LAT

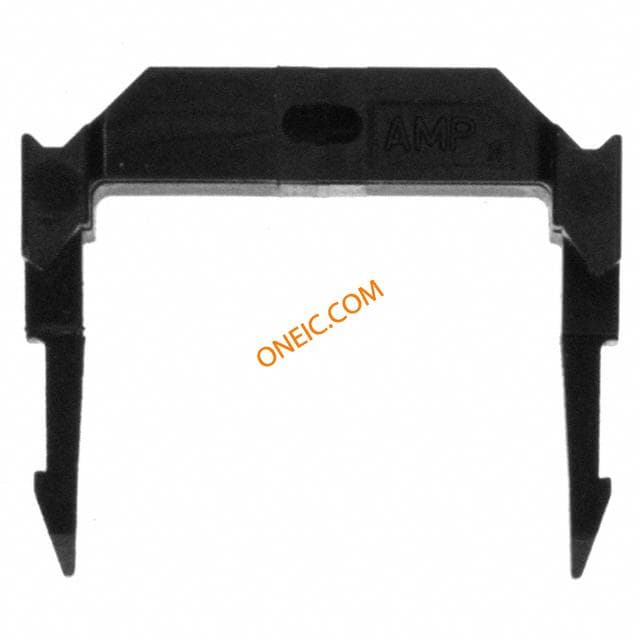

499252-5
te connectivity / amp
Connector Accessories 10 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Accessories (AMP-LATCH) STRAIN RELIEF 10POS SOCKET CONN 10 way IDC strain relief Headers & Wire Housings STRAIN RELIEF 10POS Connector Accessories 10 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Product Highlights:Strain ReliefNumber of Positions = 10Search Keywords:input/output, paddleboard, paddle board STRAIN RELIEF, 10WAY StrainRelief,CableConnector;10;Thermoplastic;UL94V-0;Black Strain relief 10P, 499252-5, TE Connectivity TE Connectivity 10路 应力释放支架, 使用于 AMP-LATCH NOVO 系列 010 STRAIN RELIEF A-L RCPT
1658624-1
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS POLAR GOLD Headers & Wire Housings 10P RCPT NOVO DUAL Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:With ContactsConnector Type = NOVOHousing Gender = Receptacle10 PositionsReceptacleSearch Keywords:input/output, paddleboard, paddle board 10 NOVO DUAL 30DP, LEAD FREE

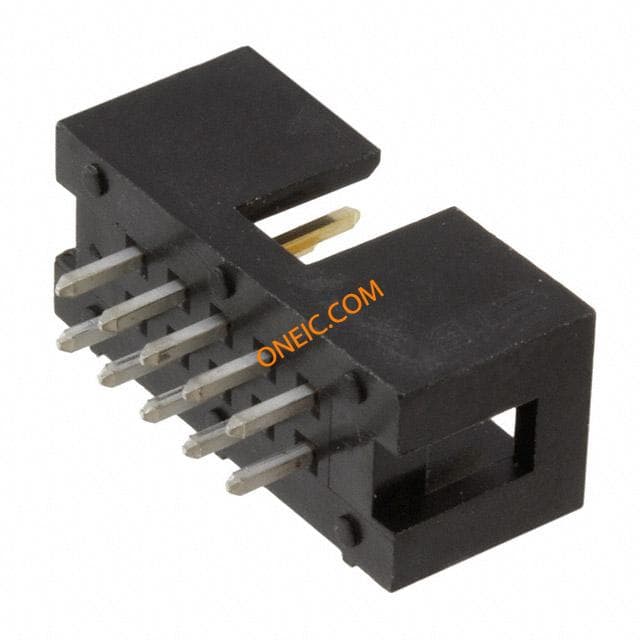

1-1634688-0
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole AMP-LATCH Novo Receptacle Connectors CONN HEADER 10POS .100 VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 10P BOX HEADER VERT Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, BOX,STRAIGHT, 10WAY, 2.54MM 10way2rowverticalthroughholeheader Socket; IDC; male; PIN:10; straight; THT; gold plated; 2.54mm TE Connectivity AMP Latch 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A
1658526-4
TE Connectivity / AMP
ヘッダ & ワイヤハウジング IDC RECPT 10 POS Ribbon Cable Connectors (AMP-LATCH) 609-1030LF FEM SOCKT,LEAD FREE Headers & Wire Housings IDC RECPT 10 POS Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,10POSITION,MATINGPOLARIZATION TE Connectivity AMP-LATCH 609 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装
1658527-3
TE Connectivity / AMP
ヘッダ & ワイヤハウジング 10 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 622 SERIES Ribbon cable conn.rcpt.10way,2.54mm,blue Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 10WAY RIBBONCONN.RCPT.10WAY TE Connectivity AMP-LATCH 622 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 622-1030LF FEM SOCKT,LEAD FREE
1658621-1
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 10POS W/POL 15 GOLD 10way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 10P NOVO Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR, RECEPTACLE, IDC, 2.54MM, 10P 10NOVOMIL/CTR15DP,LEADFREE Plug; IDC; female; PIN:10; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 10P, 1658621-1, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 10路 2.54mm节距 直角 电缆安装 母 IDC 连接器 10 NOVO MIL/CTR 15DP,LEAD FREE
1658526-5
TE Connectivity / AMP
Headers & Wire Housings IDC RCPT 10 POS W/ STRAIN RELIEF Ribbon Cable Connectors (AMP-LATCH) 609-1041LF FEM SOCKT,LEAD FREE 10 Way HE10 Skt w/ Strain Relief Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,10POSITION,MATINGPOLARIZATION
1658526-3
TE Connectivity / AMP
Headers & Wire Housings 609-1000MLF FEM SCKT Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS VERT GOLD Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 10ReceptacleMating Polarization Method = MilitaryWith Mating Polarization 609-1000MLF FEM SCKT,LEAD FREE
